AS Schwabe LED industrial light EEC E (A - G) 45 W 3800 lm Neutral white 46345
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

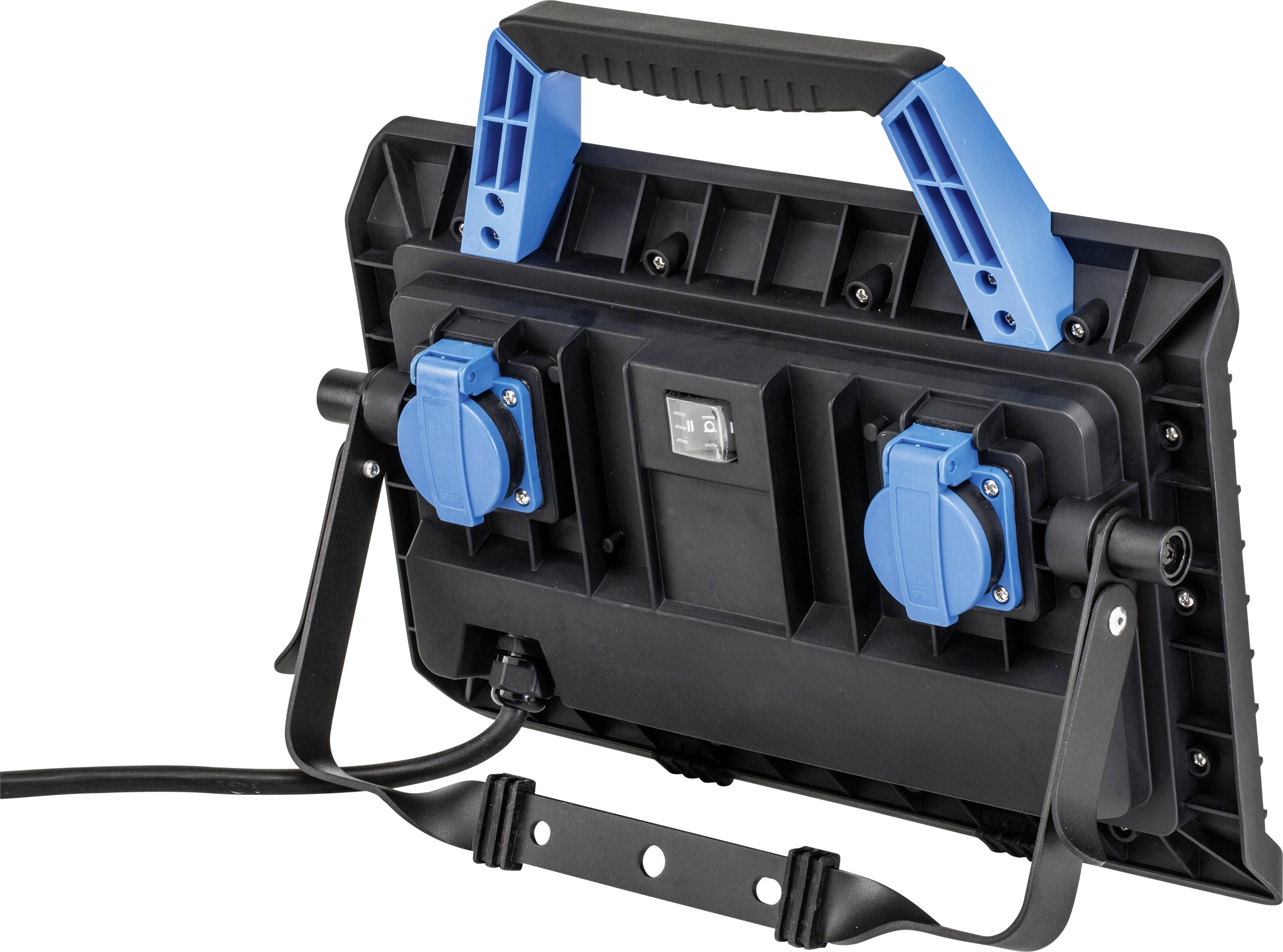

LED spotlight 45W 'Optiline' + 3M
- Two earthing contact socket outlets with hinged lids
- 3 switching stages: 50%, 100%, off
Technical specifications
- Dim
(L x W x H) 38 x 10 x 32 cm
- Product type
LED industrial light
- Bulb type
LED (monochrome)
45 W
- Total luminous flux
3800 lm
- Operating voltage
230 V
E (A - G)
- No. of bulbs
1
- Features
Sockets
Handle
Incl. retractable stand
Yes
- Weight
2.36 kg
- Colour
Neutral white
4000 K
- Material
Plastic
- Width
10 cm
- Height
32 cm
- Length
38 cm
- Depth
380.0000 mm
IP54
- Feed length
3 m
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2484913 AS Schwabe LED industrial light EEC E (A - G) 45 W 3800 lm Neutral white 46345
User & Safety Instructions
User & Safety Instructions 2484913 AS Schwabe LED industrial light EEC E (A - G) 45 W 3800 lm Neutral white 46345
Description
LEDs with a life span of over 40,000 hours
Color temperature 4000 K (neutral white)
Beam angle LED 100°
Narrow die-cast aluminum housing with swivel and lockable mounting bracket
Connection cable and windscreen cannot be replaced
Connection 220-240 V/50 Hz
Housing made of special plastic with folding stand
Diffuser disk made of polycarbonate
3 m heavy rubber hose cable H07RN-F 3G1.5 with earthing contact plug
IP54: dust- and splash-proof
This text is machine translated.
Color temperature 4000 K (neutral white)
Beam angle LED 100°
Narrow die-cast aluminum housing with swivel and lockable mounting bracket
Connection cable and windscreen cannot be replaced
Connection 220-240 V/50 Hz
Housing made of special plastic with folding stand
Diffuser disk made of polycarbonate
3 m heavy rubber hose cable H07RN-F 3G1.5 with earthing contact plug
IP54: dust- and splash-proof
This text is machine translated.
