AS Schwabe Optiline 46672 LED outdoor floodlight (+ motion detector) EEC: E (A - G) LED (monochrome) 100 W Black

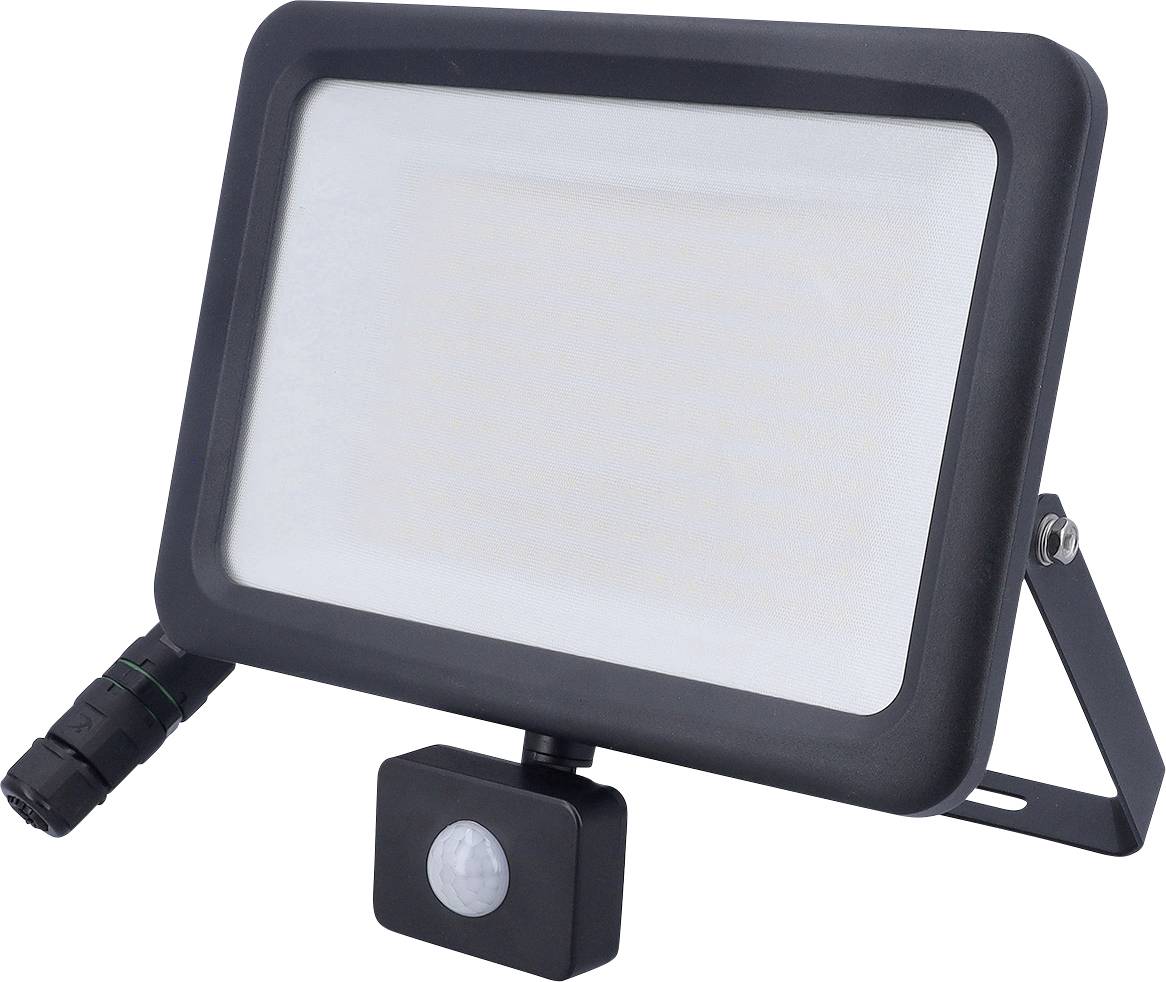

A black LED floodlight with a motion sensor attached beneath the light panel, mounted on an adjustable bracket.

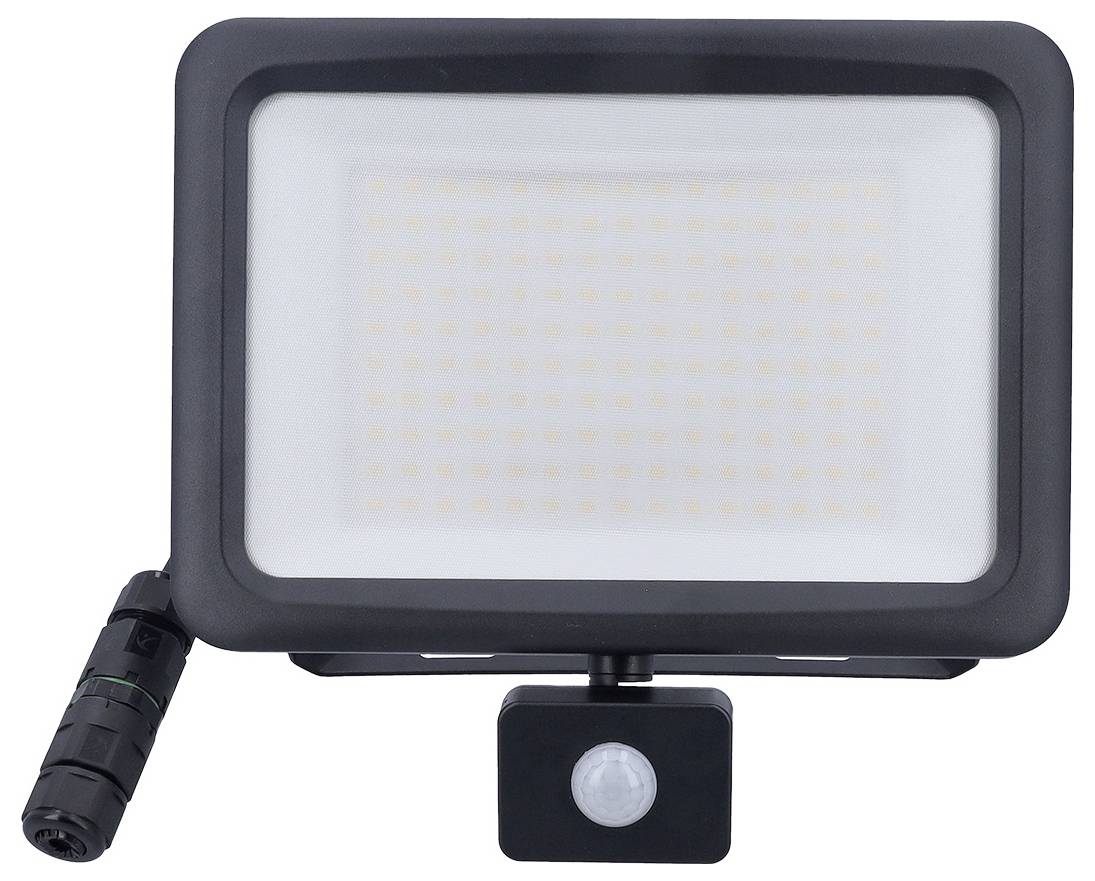

A rectangular LED floodlight with a black frame and built-in motion sensor. A cable connector is visible on the side.

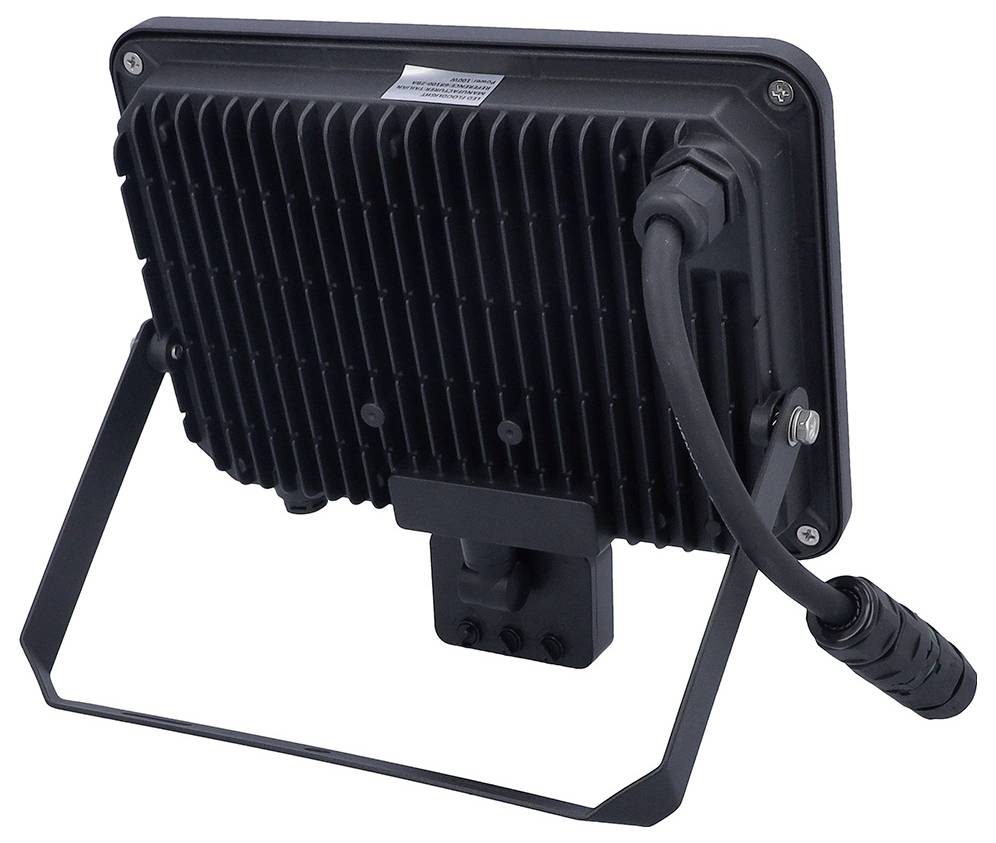

'Rear view of a rectangular LED floodlight with a ribbed design and a mounted support bracket, showing a power cable connected on the side.'

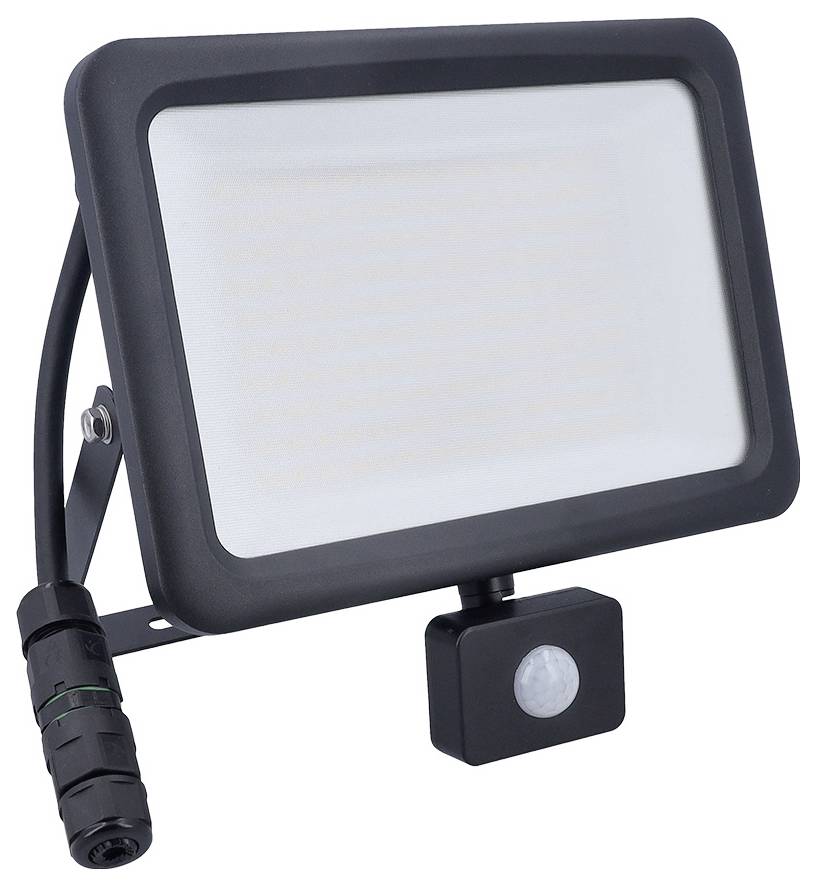

'An LED floodlight with a black frame and motion sensor, designed for outdoor use. It features a plug for easy connection to power.'
1/4
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

AS Schwabe Optiline LED spotlight with 100 Watt motion detector

  • 15 cm rubber sheathed cable H07RN-F 3G1.5 with fast connection adapter (230 V, 16 A)
  • For connection of cross-section cables 3G2.5
  • Motion detector adjustable 10s - 10min, 3 - 1000Lux, 4-10m
  • Output: 100W / luminous flux: 12000 lm / 120 lm/W.
  • This text is machine translated.

Technical specifications

  • 40,000 H service life
  • Beam angle: 120°
  • 15 cm cable with quick connection adapter
Product type

LED outdoor floodlight (+ motion detector)

Type

Rectangular

Operating voltage

230 V

Bulb type

LED (monochrome)

Rating per bulb

100 W

100 W

4000 K

Colour

Neutral white

12000 lm

Total luminous flux

12000 lm

Coverage max. (width)

10 m

Adjustable on-time (min.)

10 s

Adjustable on-time (max.)

10 min

Light features

Incl. motion detector

Protection class

I

IP44

Factory colour

Black

Material

Plastic

E (A - G)

Light bulb included

Yes

Cable length

15 cm

Cable type

H07RN-F

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3645947 AS Schwabe Optiline 46672 LED outdoor floodlight (+ motion detector) EEC: E (A - G) LED (monochrome) 100 W Black

User & Safety Instructions

User & Safety Instructions 3645947 AS Schwabe Optiline 46672 LED outdoor floodlight (+ motion detector) EEC: E (A - G) LED (monochrome) 100 W Black

Description

Features

  • Extremely long-lasting LEDs: Life over 40000 hours (120 lm/W)
  • Plastic housing with heat sink made from aluminum
  • With pressure compensating element to avoid condensation and corrosion (from 50 watts)
  • Satin finish disc
  • Motion detector adjustable 10s - 10min, 3 - 1000Lux, 4 - 10m
  • Colour reproduction: CRI >80
  • Angle of radiation 120°
  • With fast connection adapter, connectable wire cross-section 3G2,5
  • Connection 230 V/16 A.
  • Replaceable LED board
  • Protection class I
  • IP44: Foreign body and splash-proof

Scope of delivery

  • Optiline LED spotlight 100W with motion detector
