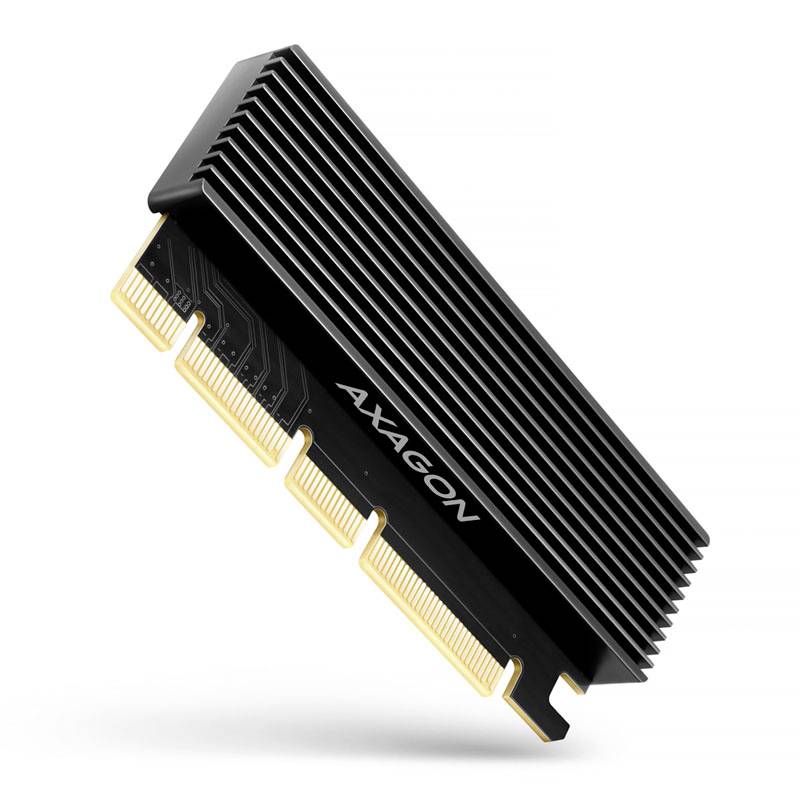

AXAGON PCEM2-XS 1 port M.2 controller PCIe x4
EAN:
Part number:
Item no:
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
Only 4 Piece(s) available
AXAGON PCEM2-XS PCI-E 3.0 16x - M.2 SSD NVMe, 80 mm SSD - low profile
Highlights & Details
- PCIe-Adapter for M.2-SSD-hard disks
- Suitable for x16 / x8 / x4 slots
- Supports all sizes
- Max. Bandwidth of 8 GB/s.
- Compatible with Windows (Server) / Linux
Technical specifications
- Input - interface: PCI-Express 3.0
- Input - number of lines: 4-lane (x4)
- Input - speed: 8 GB/s (bidirectional)
- Input - compatibility: PCI-Express 5.0 / 4.0 / 3.0 / 2.1 / 2.0 / 1.1 / 1.0a; PCIe slot: X4 / x8 / x16
- Output - interface: M.2 NVMe (PCI Express)
- Output - plug: 75-pin M.2 M-key
- Output - compatibility: All NMEA-M.2-SSDs
- Supported devices: M.2 2280 / M.2 2260 / M.2 2242 / M.2 2230
- Type: Single-sided / double-sided M.2-SSDs
- Max. Hard disk capacity: Without limitation
- Product type
M.2 controller
- Slot
PCIe x4
- Power supply
via bus
- Port
1 port
- Specs
Passive cooling
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3742243 AXAGON PCEM2-XS 1 port M.2 controller PCIe x4
Description
With the PCEM2-XS, AXAGON offers an internal adapter that connects NVMe-M.2-SSDs to the PC via a PCI Express slot. This is especially useful if the motherboard does not have a corresponding M.2 slot or it is already occupied. The adapter enables the application of single and double-sided SSDs in x16, x8 and x4 slots.

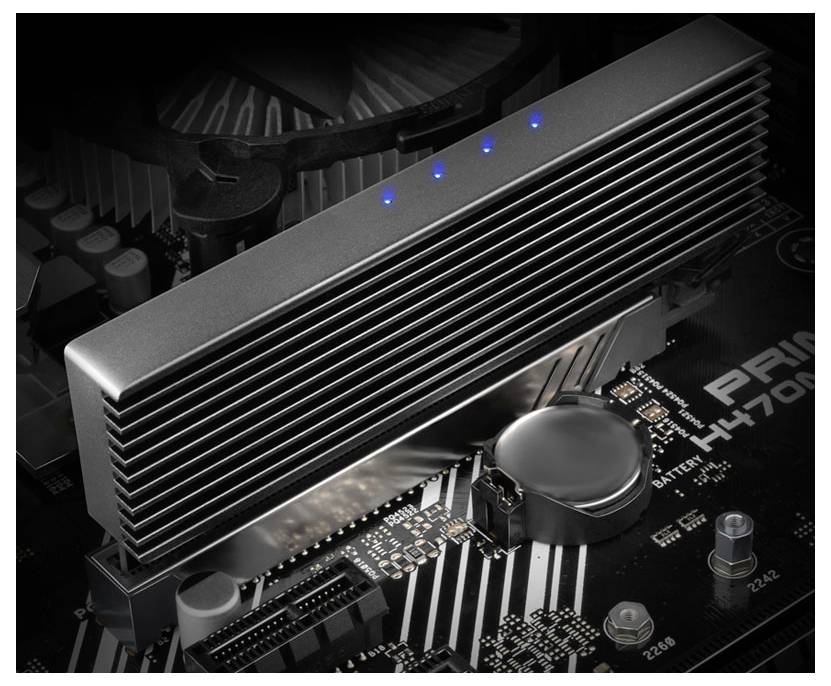

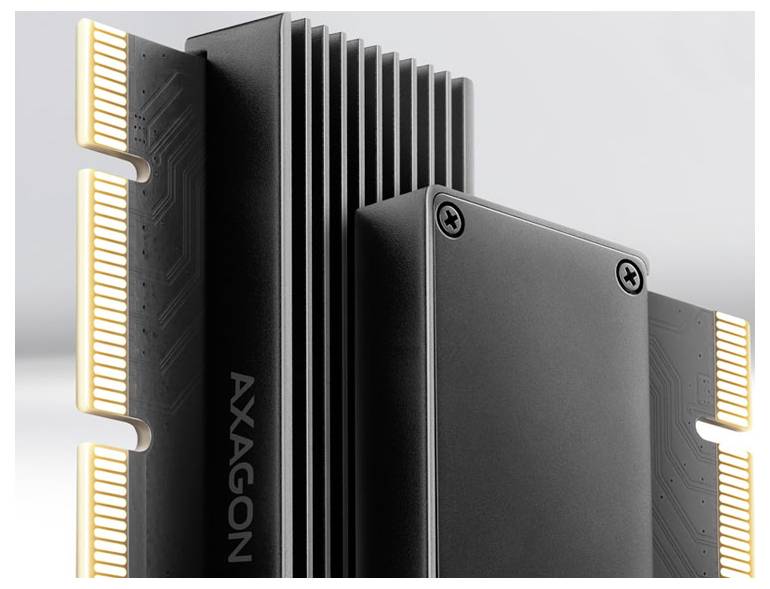

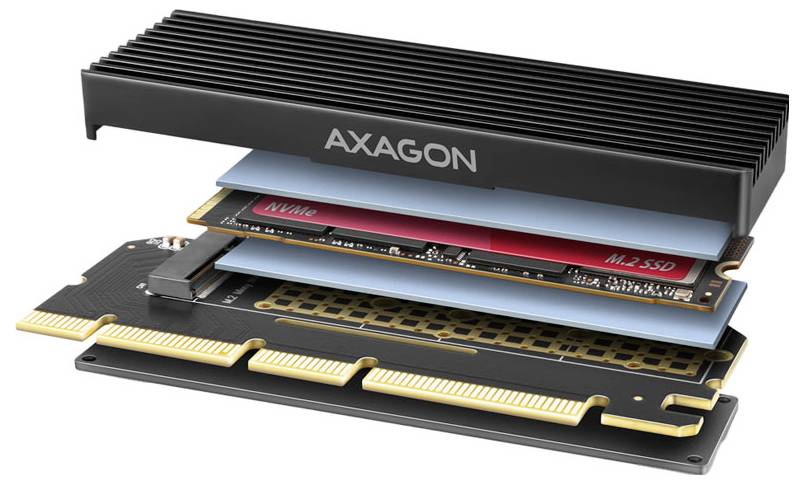

The PCI-Express-Bus supplies the PCM2-XS with power directly, so that no external power source is needed. Heat-conducting plates and copper-plated ventilation openings help in this process to dissipate the heat generated under load of the M.2-SSD better. An LED display provides information about the connection and data transfer.
This text is machine translated.
The PCI-Express-Bus supplies the PCM2-XS with power directly, so that no external power source is needed. Heat-conducting plates and copper-plated ventilation openings help in this process to dissipate the heat generated under load of the M.2-SSD better. An LED display provides information about the connection and data transfer.
This text is machine translated.
System requirements
- Windows: 10 / 8.1 / 8 / 7 (all 32- and 64-bit versions)
- Windows Server: 2016 / 2012 / 2008 R2 (all 32- and 64-bit versions)
- Linux: Kernel 2.6.31 and later
