Name: Renkforce RF-4599664 2 ports USB 3.1 2nd gen controller card USB C® (USB 3.1 2nd gen) PCIe
Brand: Renkforce
SKU: 2299832
Availability: InStock

A red PCIe expansion card with two USB-C ports and a silver mounting bracket for installation in a computer.

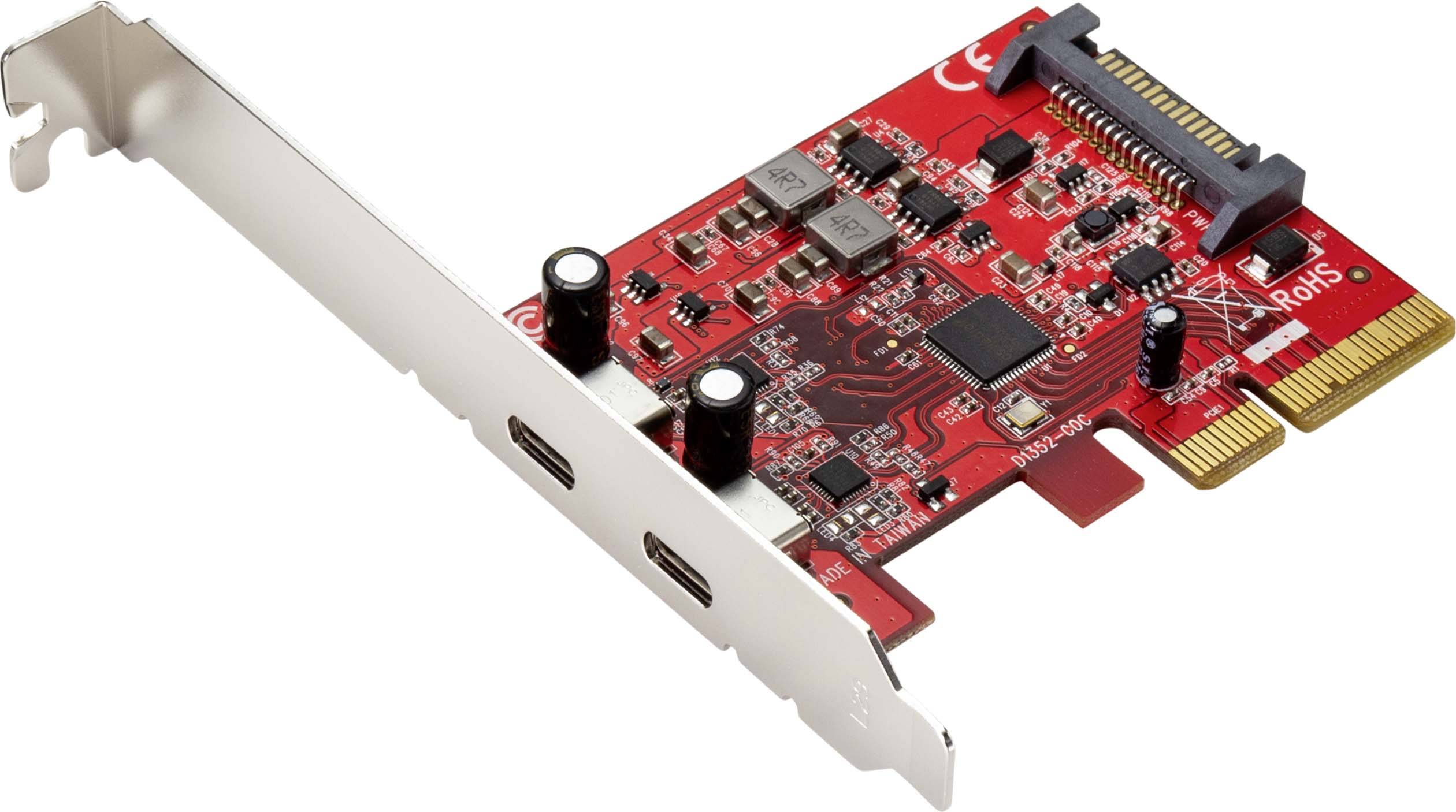

Red PCIe expansion card with two USB-C ports and silver mounting bracket, suitable for installation in a computer.

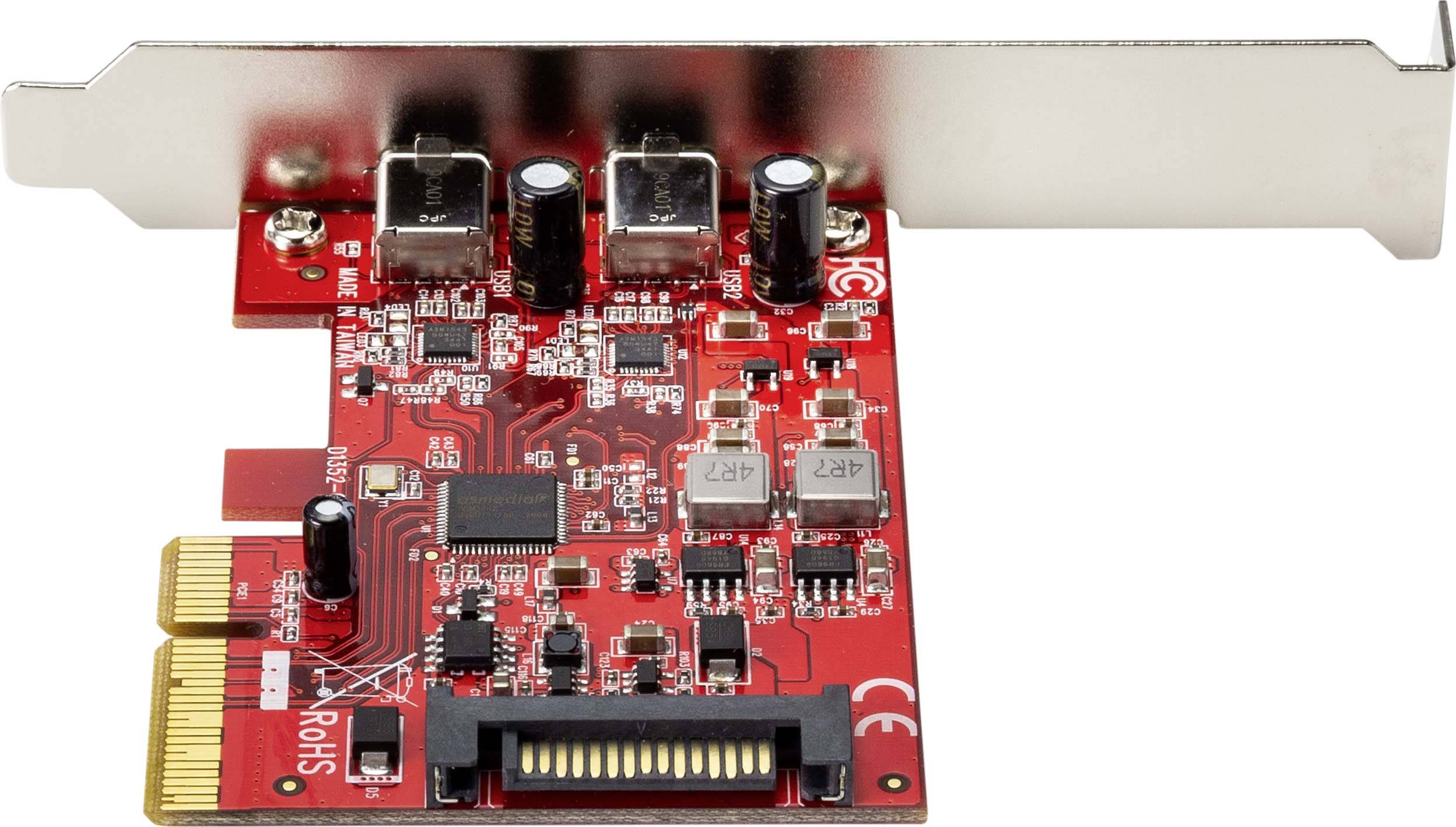

A red PCIe expansion card with various electronic components, connectors, and a SATA port at the bottom.

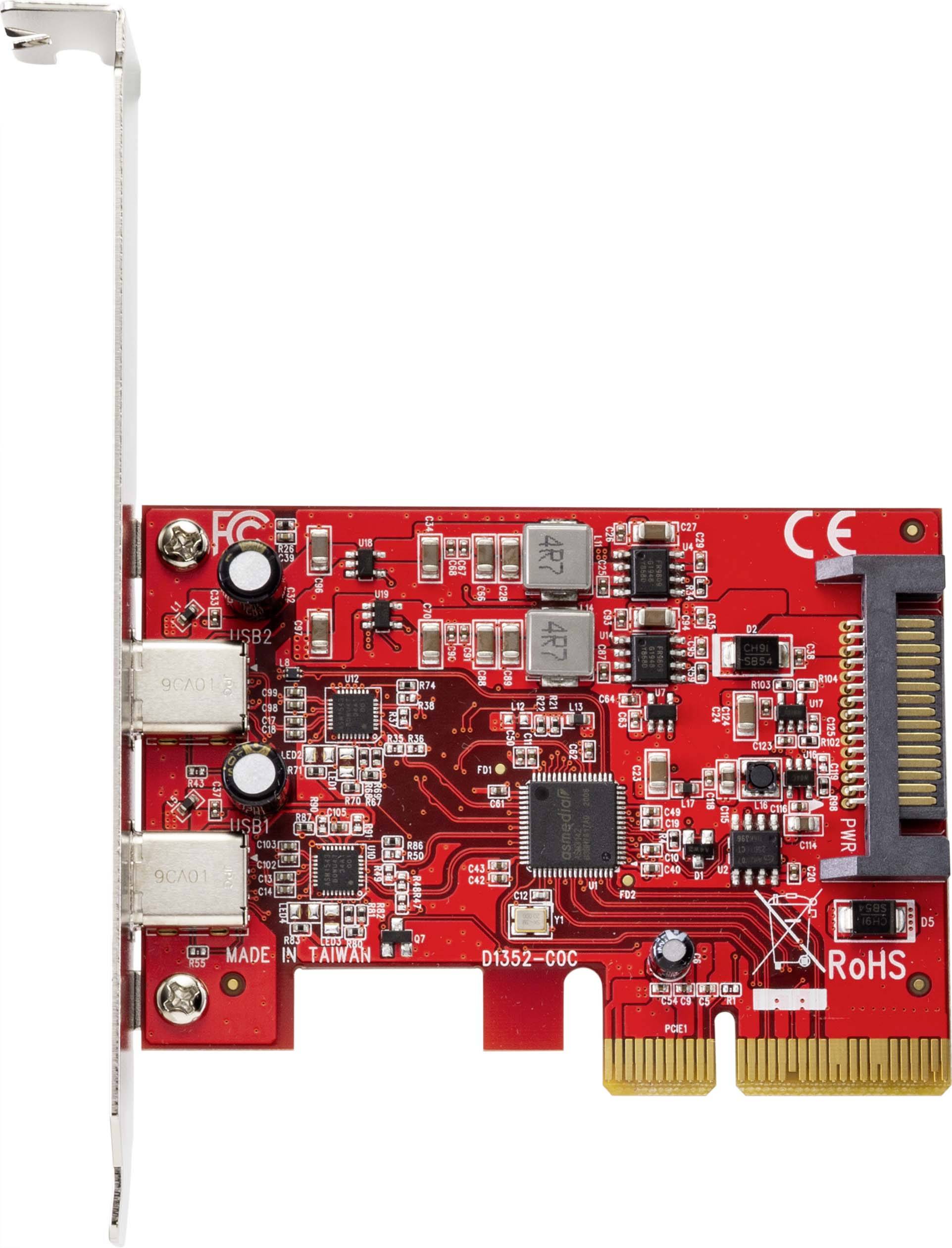

A red PCIe expansion card with two USB ports and electronic components, marked 'RoHS' and 'Made in Taiwan'.

1/4

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 61.99 / piece)

€ 61.99

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Renkforce 10 Gbps 2x USB3.1 Type-C PCIe Low Profile Host Adapter

PCIe x4 Lane Host Adapter with USB3.1 PCIe Gen3 x2 fast chipset
Each USB 3.1 Type-C port provides 5V3A bus power, total 5V6A
Supports USB3.1, USB3.0, USB2.0 and USB1.1 devices
Compliant with PCI Express Specification 3.0
Regular size PCIe bracket on board and low profile PCIe bracket included

Technical specifications

chipset ASM3142

Product type: USB 3.1 2nd gen controller card

Slot: PCIe

No. of USB 3.2 2nd gen (USB 3.1) ports: 2 x

No. of external USB 3.2 2nd Gen (USB 3.1) ports: 2 x

Power supply: via PC PSU

Chipset: ASMedia

Port: 2 ports

Specs: incl. slot panel

Interfaces (output): USB C® (USB 3.1 2nd gen)

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2299832 Renkforce RF-4599664 2 ports USB 3.1 2nd gen controller card USB C® (USB 3.1 2nd gen) PCIe

Features

Compliant with Universal Serial Bus 3.1 Specification Revision 1.0
Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.1
Compliant with USB Attached SCSI Protocol Specification 1.0
All USB ports support SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transfers
Requires an empty PCIe 2.0 or PCIe 3.0 x4, x8 or x16 slot in computer for full USB3.1 performance
Mac10.8 to 10.10, Mac10.12, Windows 10, Win8, 8.1, Server 2012, Linux kernel 2.6.31 or later OS in-box USB driver supports UASP, no additional driver required

Scope of delivery

10 Gbps USB3.1 Gen2 Type-C 5V3A, 2 ports PCIe Gen3 Low Profile Host Adapter
Low profile bracket
CD driver
User manual
