B + B Thermo-Technik 0557 0005-01 Universal Switch Module With Two-step Controller 24 V/DC Universal-switching module, b
Product type
Universal switchboard
Operating voltage
24 V DC
Type
0557 0005-01
Operating current
60 mA
Switching voltage (max.)
230 V AC
EAN:
Part number:
Item no:
Number
Total (€ 85.99 / piece)
€ 85.99
incl. VAT
14-day return policy included
Highlights & Details
B + B Thermo-Technik 0557 0005-01 Universal Switch Module With Two-step Controller 24 V/DC Universal-switching module, board for 24 V/DC
- Direct connection of NTC, LDR, etc.
- For industrial sensors 0 - 1 V/10 V/20 mA
- Configurable operating time relay 10 s - 10 min
Our service for you
Technical specifications
- Relays are potentially separated
- Evaluation Range: 0 - 10 V/20 mA/1 - 100 kΩ
- Product type
Universal switchboard
- Type
0557 0005-01
- Operating voltage
24 V DC
- Operating current
60 mA
- Switching voltage (max.)
230 V AC
- Switching current (max.)
5 A
- Content
1 pc(s)
- Length
95 mm
- Width
75 mm
- Height
30 mm
- Dim
(L x W x H) 95 x 75 x 30 mm
- RoHS-compliant
Yes
- Type
Universal-switching module, board for 24 V/DC
- Switching capacity
Relays are potentially separated 5 A/230 V AC
- Type
CON-SENSW-MOD24V
- Operating voltage
24 V DC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 156517 B + B Thermo-Technik 0557 0005-01 Universal Switch Module With Two-step Controller 24 V/DC Universal-switching module, b
Description

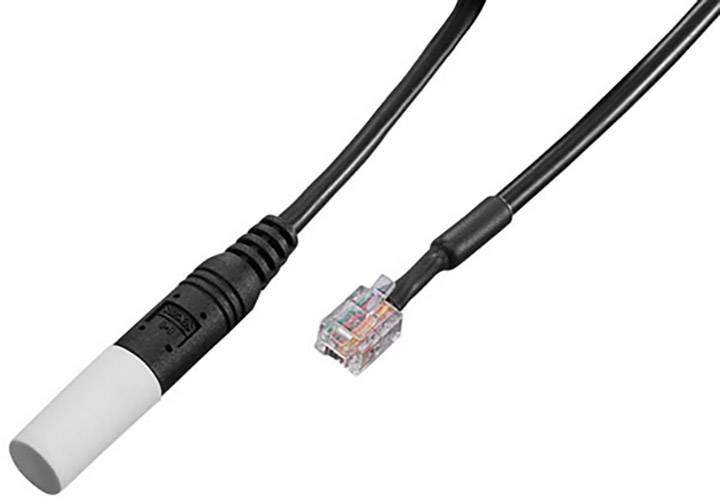

Switch module (two-step controller) for almost all sensors and detectors. The input can be connected to a wide variety of sensors, depending on the area of use. Suitable sensor: The sensors are preassembled with a 1 m connection lead, Western connectors and cable gland. Dew sensor (condensate guard): recognize imminent dew before it emerges. Humidity guard for bath/shower, exterior walls, cool covers, show windowpane etc. Conductance sensor: For supervision of the water quality (ion content), of the abundance state as foam sensor etc. Room humidity sensor: With sinter protection cap for the regulation of the relative humidity in greenhouses, terrace, sanitary room, switch cabinets etc. Temperature sensor -40 up to +80 ºC:In the stainless steel sensor pipe Ø 6 x 30 mm or as a pressure screw sensor with M10 thread. Light sensor 50 - 2000 Lux: weather-proof for inner- and outer mounting.
Features
- Input with AC evaluation (conductance)
- Configurable operating time relay 10 s - 10 min
- Three potentiometers for adjusting the switching thresholds and hysteresis
- 6 LEDs for operating status display
- Switching polarity and operating time relay can be coded via plug-in jumpers
- Power relay with two-way contact
- Universal analogue input for resistive sensors
- Direct connection of NTCs, PTCs, LDRs or industrial sensors 0 - 1/5/10 V, 0 - 20 mA, etc.
- Second input for electrolytic sensors such as dew point and humidity sensors, level electrodes, water detectors, rain sensors, building humidity sensors, etc. (operating principle via AC impedance analysis)
- Third input for reed contacts, level switches, alarm contacts, etc.
Scope of delivery
- Supplied as a board, housing and sensors not included.
