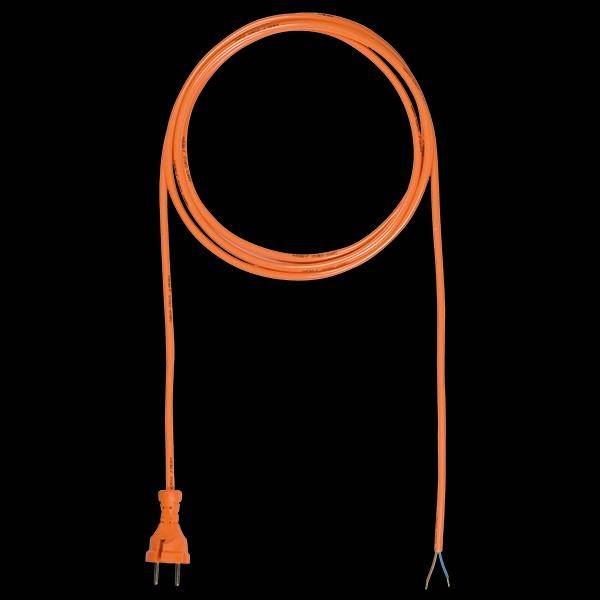

Bachmann 249876 Current Mains cable Orange 5 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connection 1: Profile connector
- Connection 2: Wire-end sleeve
- Connector system-linked: No.
- Wire number: 2
- Conductor cross-section: 1.5 mm²
- Length: 5 m
- Jacket material: Polyurethane (PUR)
- Temperature resistance 70 °C
- Nominal current 10 A
- Nominal voltage 230..250 V
- Mains frequency: 50/60 Hz.
- Sheath color: Orange
- Spiral cable: No.
- With ground wire: No.
- Protection class (IP) IP20
- Oil resistant according to EN 60811-404: No.
- With cord switch: No.
- Outer diameter approx. 8.3 mm
- Product type
Current Mains cable
- Cable use
Current
- Version
Mains cable
- Type A
CEE 7/17 plug
- Connector version
straight
- Type B
Open cable ends
- Cable length
5 m
- Factory colour
Orange
- Nominal voltage
250 V
- Nominal current
10 A
- Length
5.00 m
IP20
- Connection type
DC (current)
- Operating voltage
250 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3158712 Bachmann 249876 Current Mains cable Orange 5 m
User & Safety Instructions
User & Safety Instructions 3158712 Bachmann 249876 Current Mains cable Orange 5 m
Description
Line FEED LINES/ CONNECTION lines Power line 10A/ 250V~ 5 m H07BQ-F 2 1.5 mm2 orange CEE 7/17 contour plug, central, injected 30mm stripped with wire-end sleeves unpacked
