Bachmann 356.127 Current Cable 10.0 A Black 1.50 m H05VV-F 3G 1mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Connection 1: Cold-device plug
- Connection 2: Straight IEC socket
- Connector system-linked: No.
- Wire number: 3
- Conductor cross-section: 1 mm²
- Length: 1.5 m
- Jacket material: Polyvinyl chloride (PVC)
- Temperature resistance 70 °C
- Nominal current 10 A
- Nominal voltage 230..250 V
- Mains frequency: 50/60 Hz.
- Sheath color: Black
- Spiral cable: No.
- Protection class (IP) IP20
- Oil resistant according to EN 60811-404: No.
- With cord switch: No.
- Product type
Current Cable
- Version
Cable
- Type A
IEC 3 A plug (cooling devices)
- Type B
IEC 3 A socket (cooling devices)
- Cable standard
H05VV-F 3G 1mm²
- Cable length
1.50 m
IP20
- Factory colour
Black
- Cable use
Current
- Nominal current
10.0 A
- Cable design
Round
- Length
1.50 m
- Connection type
DC (current)
- Nominal voltage
250 V
- Operating voltage
250 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3159011 Bachmann 356.127 Current Cable 10.0 A Black 1.50 m H05VV-F 3G 1mm²
User & Safety Instructions
User & Safety Instructions 3159011 Bachmann 356.127 Current Cable 10.0 A Black 1.50 m H05VV-F 3G 1mm²
Description

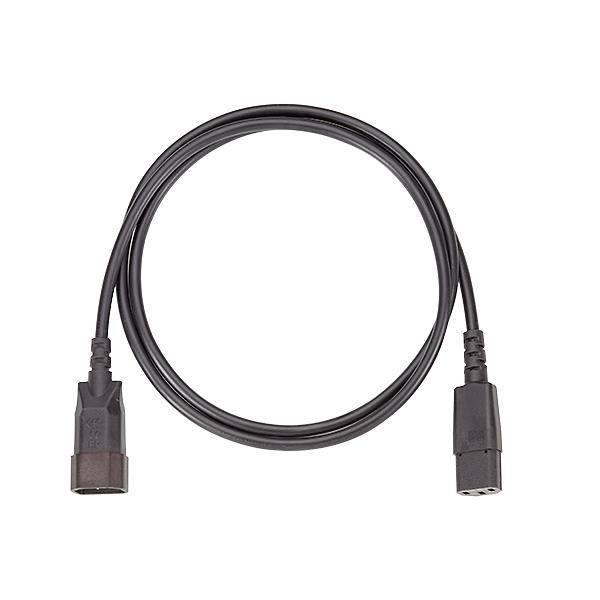

Power distribution extension Power line 10A / 250V~ 1.5 m H05VV-F 3G 1 mm² black C14 cold-device plug IEC 60320, central, mounted C13 low-power socket IEC 60320, centrally mounted, unpacked
This text is machine translated.
This text is machine translated.
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
