Bachmann 356.902 Current Cable 10.0 A Grey 1.00 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Connection 1: Cold-device plug
- Connection 2: Straight IEC socket
- Connector system-linked: No.
- Wire number: 3
- Conductor cross-section: 1 mm²
- Length: 1 m
- Jacket material: Polyvinyl chloride (PVC)
- Temperature resistance 70 °C
- Nominal current 10 A
- Nominal voltage 230..250 V
- Mains frequency: 50/60 Hz.
- Sheath color: Grey
- Spiral cable: No.
- Protection class (IP) IP20
- Oil resistant according to EN 60811-404: No.
- With cord switch: No.
- Product type
Current Cable
- Version
Cable
- Type A
IEC 3 A plug (cooling devices)
- Type B
IEC 3 A socket (cooling devices)
- Outlets
1
- Cable length
1.00 m
IP20
- Factory colour
Grey
- Cable use
Current
- Nominal current
10.0 A
- Cable design
Round
- Length
1.00 m
- Connection type
DC (current)
- Nominal voltage
250 V
- Operating voltage
250 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3158979 Bachmann 356.902 Current Cable 10.0 A Grey 1.00 m
User & Safety Instructions
User & Safety Instructions 3158979 Bachmann 356.902 Current Cable 10.0 A Grey 1.00 m
Description

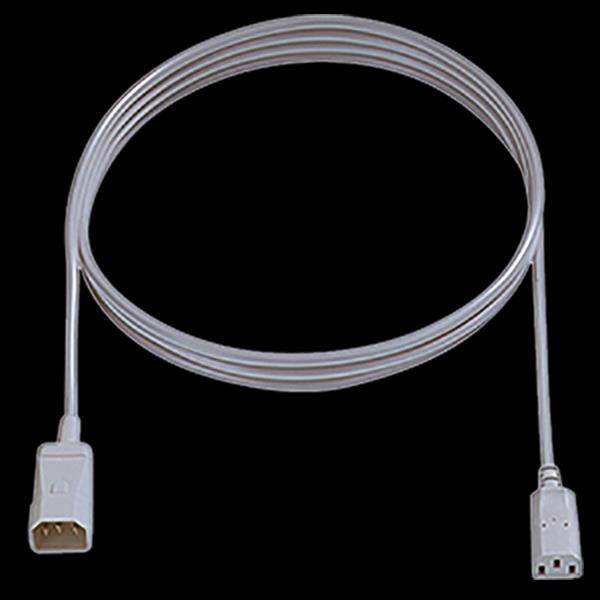

Power distribution extension Power line 10A / 250V~ 1 m H05VV-F 3G 1 mm² gray C14 cold-device plug IEC 60320, central, mounted C13- cold-device socket IEC 60320, centrally mounted, individually packaged
This text is machine translated.
This text is machine translated.
