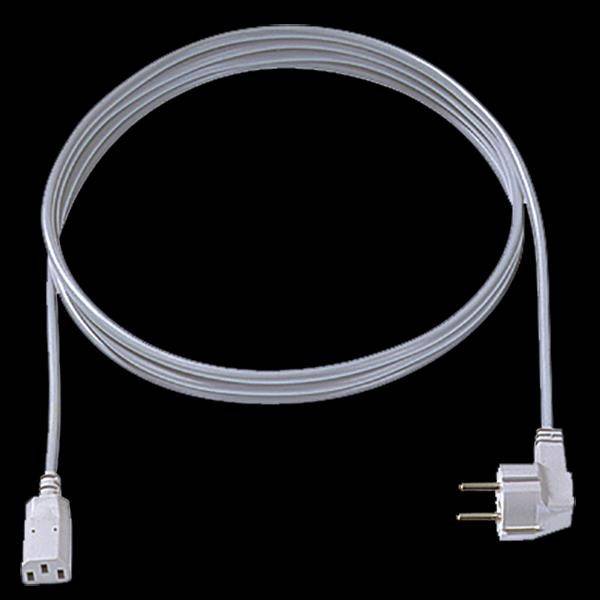

Bachmann 356.909 Current Cable 10.0 A Grey 2.00 m incl. PG
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Connection 1: Right-angled Schuko plug
- Connection 2: Straight IEC socket
- Connector system-linked: No.
- Wire number: 3
- Conductor cross-section: 1.5 mm²
- Length: 2 m
- Jacket material: Polyvinyl chloride (PVC)
- Temperature resistance 70 °C
- Nominal current 10 A
- Nominal voltage 230..250 V
- Mains frequency: 50/60 Hz.
- Sheath color: Grey
- Spiral cable: No.
- Protection class (IP) IP20
- Oil resistant according to EN 60811-404: No.
- With cord switch: No.
- Outer diameter approx. 8.1 mm
- Product type
Current Cable
- Version
Cable
- Type A
PG right-angle plug
- Connector version
angled
- Type B
IEC 3 A socket (cooling devices)
- Cable length
2.00 m
- Cable features
incl. PG
IP20
- Factory colour
Grey
- Cable use
Current
- Nominal current
10.0 A
- Length
2.00 m
- Connection type
DC (current)
- Nominal voltage
250 V
- Operating voltage
250 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3159024 Bachmann 356.909 Current Cable 10.0 A Grey 2.00 m incl. PG
User & Safety Instructions
User & Safety Instructions 3159024 Bachmann 356.909 Current Cable 10.0 A Grey 2.00 m incl. PG
Description
Power distributor Power SUPPLY lines/ CONNECTION lines 10A/ 250V~ 2 m H05VV-F 3G 1.5 mm² gray CEE 7/7 safety plug with double earthing contact system angle, molded C13-cold device socket IEC 60320, centrally mounted, individually packaged
