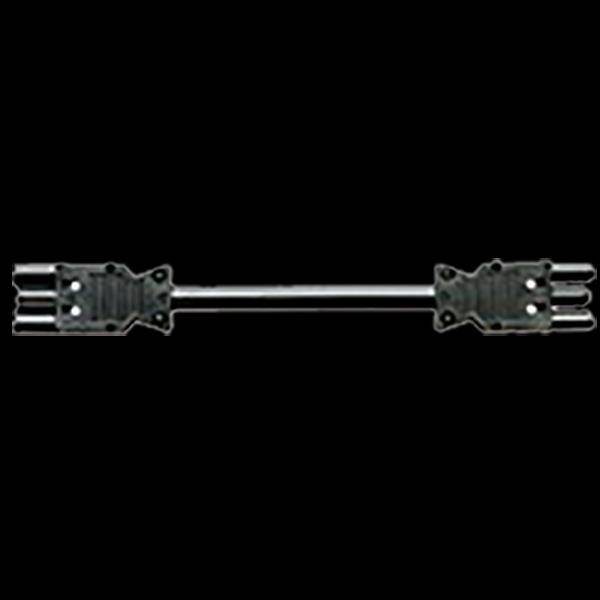

Bachmann 375.064 Current Cable extension Black 3 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Rated voltage: 250 V
- Rated current 16 A
- Number of poles: 3
- Protection class (IP) IP20
- Type of pre-assembled cable: Device connection cable
- Page 1: Plug
- Page 2 version: Socket
- Total length 3000 mm.
- Mechanical coding: Yes
- Colour of the coding/contact insert: Black
- Black enclosure
- Cable type H05VV-F
- Cable diameter 82..83 mm
- Sheath color: Black
- Pole identification L, N, PE
- Conductor cross-section: 1.5 mm²
- Type of locking: Integrated in the connector
- Insulation part resistant to continuous temperature up to 100 °C.
- Cable temperature resistant up to 70 ° C.
- Halogen-free: No.
- Pollution level: 2
- Dimensioning surge voltage: 4 kV
- Product type
Current Cable extension
- Version
Cable extension
- Connector version
threaded
- Cable length
3 m
IP20
- Factory colour
Black
- Cable use
Current
- Halogen-free
No
- Number of pins
3
Documents & Downloads
Datasheet
Datasheet 3158738 Bachmann 375.064 Current Cable extension Black 3 m
User & Safety Instructions
User & Safety Instructions 3158738 Bachmann 375.064 Current Cable extension Black 3 m
Description
Power distribution unit line Wieland power line 16A/ 250V~, 50Hz 3 m H05VV-F 3G 1.5 mm² black ST18/3-plug, central, screwed ST18/3-socket, central, screwed IP20 individually wrapped
This text is machine translated.
This text is machine translated.
