Image similar

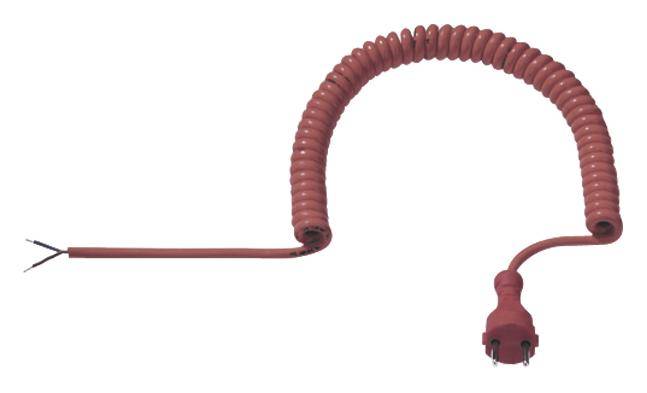

Bachmann 624.871 Current Cable Orange 5.00 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Temperature range laid fixed: -45°C to +90°C
- Temperature range, moving: -35°C to +80°C
- Outer diameter: 7 mm
- Spiral length min.: 1.0 m
- Spiral length max.: 5.0 m
- Product type
Current Cable
- Cable use
Current
- Version
Cable
- Type A
CEE 7/17 plug
- Type B
CEE 7/17 plug
- Cable features
Spiral cable
- Cable length
5.00 m
- Cable standard
H07BQ-F 3G 1 mm²
- Factory colour
Orange
- Nominal voltage (details)
500 V
- Cable type
H07BQ-F
- Cross section (each core)
1 mm²
- Insulation material
PUR
- Connection type
DC (current)
- Nominal voltage
500 V
- Outside Ø
7 mm
- Nominal voltage U0
300 V
- Spiral lenght (max.)
5000 mm
- Spiral length (min.)
1000 mm
- Max. temperature range (fixed installation)
+90 °C
- Min. temperature range (fixed installation)
-45 °C
- Max. temperature range (flexible installation)
+80 °C
- Min. temperature range (flexible installation)
-35 °C
- No. of leads
3 x
- Core layout
Class 5, stranded
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1838617 Bachmann 624.871 Current Cable Orange 5.00 m
User & Safety Instructions
User & Safety Instructions 1838617 Bachmann 624.871 Current Cable Orange 5.00 m
Description
Bachmann 624.871. Cable length: 5m, Connector Gender: Male, cable color: orange.
