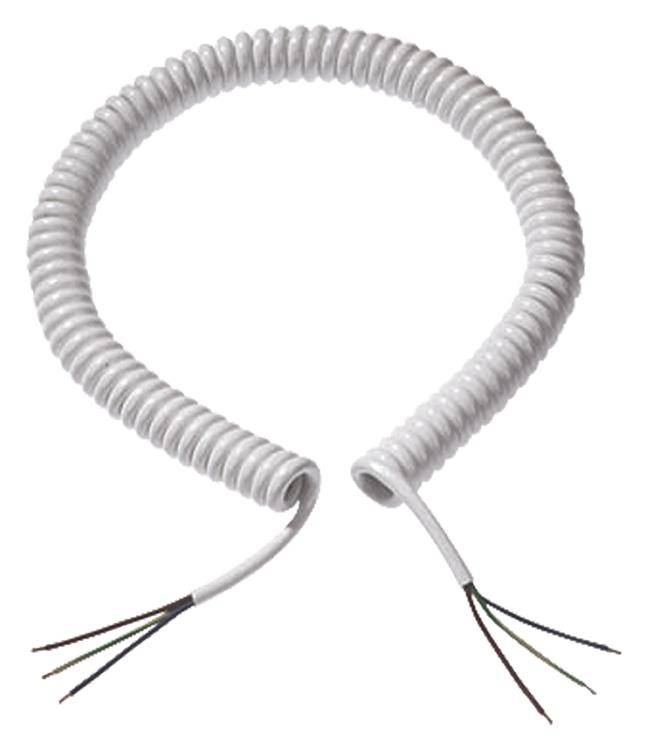

Image similar
Bachmann 693.283 Current Cable White 2.00 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Temperature range laid fixed: -40°C to +70°C
- Temperature range, moving: -5°C to +70°C
- Outer diameter: 10 mm
- Spiral length min.: 0.4 m
- Spiral length max.: 2.0 m
- Cable type: CS-YMH11Y-J-5x 1.5 mm²
- Product type
Current Cable
- Cable use
Current
- Version
Cable
- Cable features
Spiral cable
- Cable length
2.00 m
- Factory colour
White
- Nominal voltage (details)
500 V
- Cable type
CS-YMH11Y-J 5x 1.5mm²
- Cross section (each core)
1.5 mm²
- Insulation material
PUR
- Connection type
DC (current)
- Nominal voltage
500 V
- Outside Ø
10 mm
- Nominal voltage U0
230 V
- Spiral lenght (max.)
2000 mm
- Spiral length (min.)
400 mm
- Max. temperature range (fixed installation)
+70 °C
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (flexible installation)
+70 °C
- Min. temperature range (flexible installation)
-5 °C
- No. of leads
3 x
- Core layout
Class 5, stranded
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1838719 Bachmann 693.283 Current Cable White 2.00 m
User & Safety Instructions
User & Safety Instructions 1838719 Bachmann 693.283 Current Cable White 2.00 m
Description
Bachmann 693.283. Cable length: 2m, cable color: white
