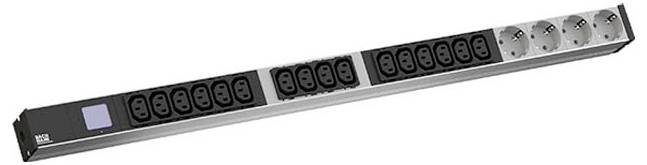

Bachmann 800.2396 19" power strip Black CEE connector 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Height: 44 mm
- Width 44 mm
- Depth: 47 mm
- Switch option: No
- Length: 746 mm
- Number of height units (RUs): 1
- Supply voltage 230 V
- With LED indicator: No.
- With mounting material: Yes
- Cable length 3 m
- Mounting direction: Horizontal / vertical
- Design of the electrical connection: Other
- With display: Yes
- Number of Schuko sockets: 4
- Mounting dimension (standardized): Other
- Electrical connection: Connection cable with plug
- Number of C13 sockets: 16
- Line suppression filter: No.
- SNMP: No.
- Evaluation: Local
- With fuse: No.
- Ammeter: Yes
- Temperature measurement: No.
- Product type
19" power strip
- Light bulb features
Energy consumption metering
- Outlets
20
- Cable length
3 m
- Mounting type
Rack
- Material
Aluminium
- Plug type
CEE connector
- No. of IEC C13 10A sockets
16
- Operating voltage
230 V
- Factory colour
Black
- Length
746 mm
- Width
44 mm
- Height
44 mm
- Cable design
Round
- Version
Cable
- Screen size diagonal (inches)
1 inch
- Keyboard layout
German, QWERTZ
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3546933 Bachmann 800.2396 19" power strip Black CEE connector 1 pc(s)
Description
BN0500
Alu 1HE power strip
With integrated performance measurement,
16xC13 0° cold device boxes
4x earthing contact socket-outlets 35°
Cable: 3.0m H05VV-F 3G1.5mm² black
With CEE 16A plug
With 1HE bracket,
With Bachmann logo
Packed in BlueNet carton.
This text is machine translated.
Alu 1HE power strip
With integrated performance measurement,
16xC13 0° cold device boxes
4x earthing contact socket-outlets 35°
Cable: 3.0m H05VV-F 3G1.5mm² black
With CEE 16A plug
With 1HE bracket,
With Bachmann logo
Packed in BlueNet carton.
This text is machine translated.
