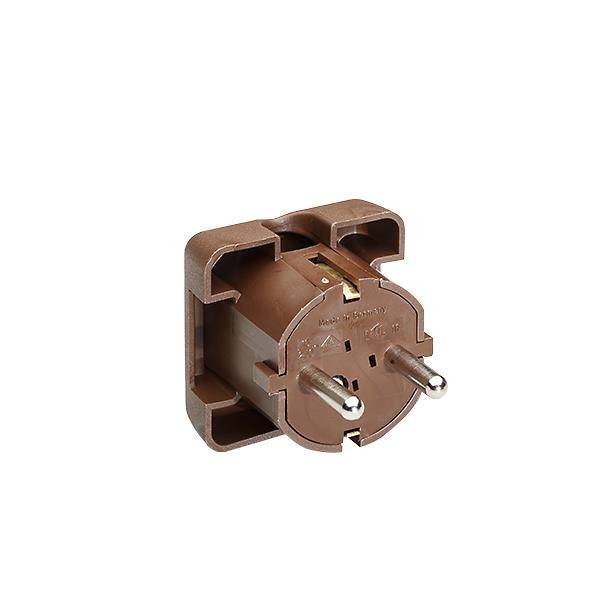

Bachmann 911470 CEE 7/16 safety plug 250 V Brown
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Schuko design
- Material: Plastic
- Material quality: Thermoplastic
- Mating direction: Right angled
- Connection technology: Screw terminal
- Colour: brown
- Number of poles: 2
- Nominal voltage: 250 V
- Nominal current: 16 A
- For "difficult conditions" (according to VDE): Yes
- Product type
CEE 7/16 safety plug
- Connector version
angled
- Nominal voltage
250 V
- Load (max.)
16 A
- Factory colour
Brown
- Type
EARTHING CONTACT
- Dim
(W x H x D) 44 x 44 x 52 mm
- Width
44 mm
- Height
44 mm
- Mains plug type (on device)
F
- Depth
52 mm
- Cable length
0 m
- Connection
Screw terminal
- Material (details)
Plastic
- Number of pins
2
- Operating voltage
250 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3135075 Bachmann 911470 CEE 7/16 safety plug 250 V Brown
User & Safety Instructions
User & Safety Instructions 3135075 Bachmann 911470 CEE 7/16 safety plug 250 V Brown
Description
Earthing contact angled plug, brown flat design, mountable
