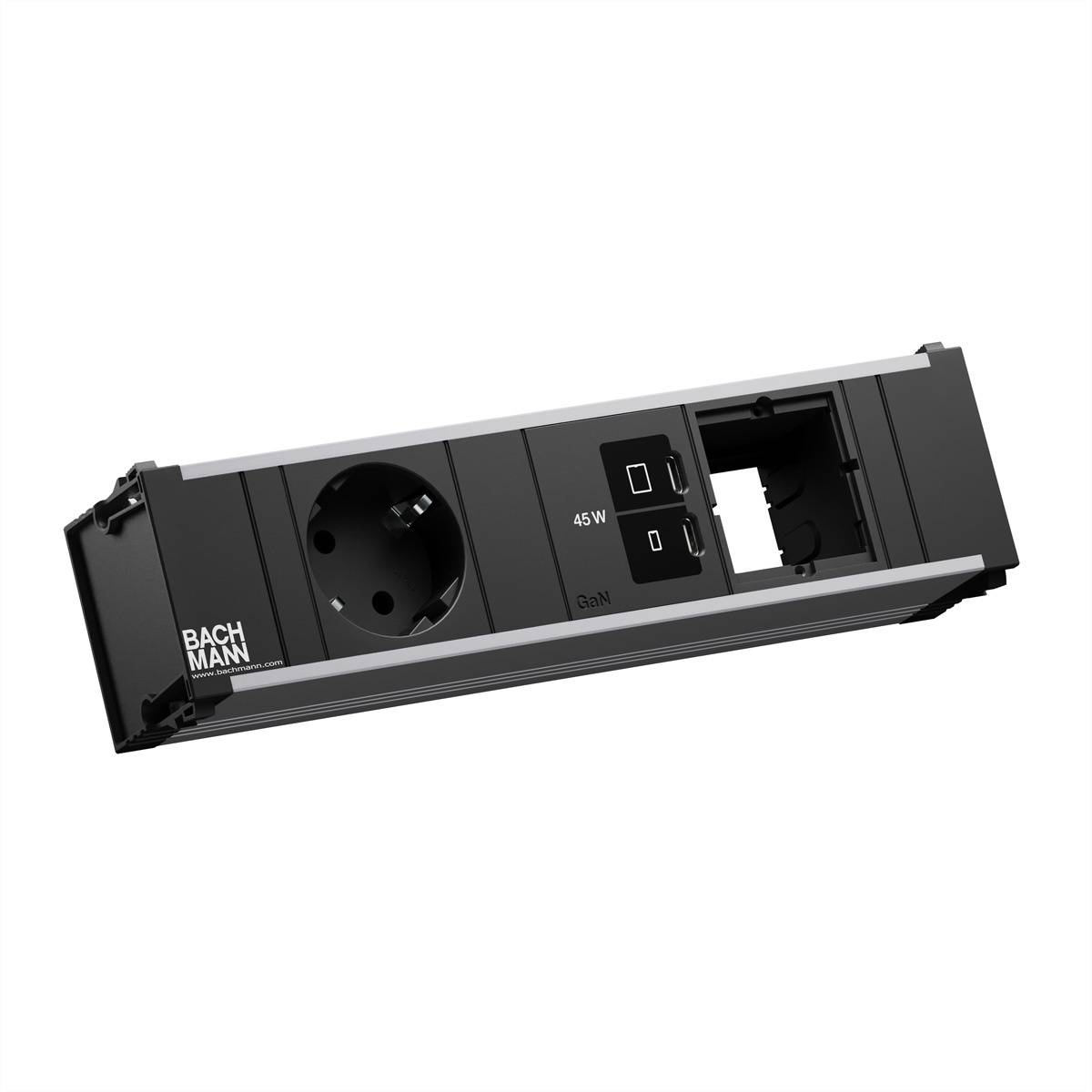

Bachmann BM0024208 Socket Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
CONI built-in socket strip 1xCEE7/3 1xUSB C/C 45W 1xCM 0.2 m...
- Mounted connector panels CONI
- Integrated into the furniture surface
- Suitable for Germany, Austria, Netherlands
Technical specifications
- Product group: Socket strips
- Product type: CONI built-in connection panels
- Colour, black
- Length 0.2 m
- Number of socket pots: 1
- Socket type: Protective contact, CEE 7/3, type-F
- USB charger: Yes
- Number of USB ports: 2
- Connection plug: Installation connector
- Plug type Wieland GST18
- With increased protection against accidental contact: Yes
- Regional use: Germany, Austria, Netherlands
- Height: 44 mm
- Width 52 mm
- Depth: 217.5 mm
- Weight 400 g
- Packaging height 70 mm
- Package width 80 mm
- Packaging depth 320 mm
- Package weight: 0,405 kg
- Gross weight: 0.405
- Product type
Socket
- Outlets
1
- Factory colour
Black
- Content
1 pc(s)
- Cable design
Round
- Cable length
0.20 m
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3797353 Bachmann BM0024208 Socket Black
User & Safety Instructions
User & Safety Instructions 3797353 Bachmann BM0024208 Socket Black
Description
Bachmann CONI 1xCEE7/3 1xUSB BM0024208
<>similar figure.
Please pay attention to the technical data and the EAN of the product.
Manufacturer:Bachmann Name:CONI 1xCEE7/3 1xUSB C/C 45W 1xCM 0.2mType 16:BM0024208Housing shape:rectangular number of safety contact sockets CEE 7/3 5 (Type F):1With on/off switch:neFI switch:neLine interference filter:no Number of connections USB:2With black fuse:no surge protection:no current current connection temperature 0.2 A9005Wire type Wire type Wire type Wire type Wire type IP Type:Type no. .35<><>Bachmann CONI 1xCEE7/3 1xUSB BM0024208: further details
CONI socket strip,
1xCEE7/3 35° socket black,
with increased contact protection,
1xUSB C/C 45W,
1xCustom module empty,
current input: 0.2m H05VV-F 3G1,5mm² black with installation connector,
with Bachmann logo,
packed in carton EAN: 4057298228865
Supplied: Bachmann CONI 1xCEE7/3 1xUSB C/C 45W 1xCM 0.2m BM0024208, packaging unit: 1 PCs., EAN: 4057298228865
This text is machine translated.
Scope of delivery
- Bachmann CONI 1XCEE7/3
