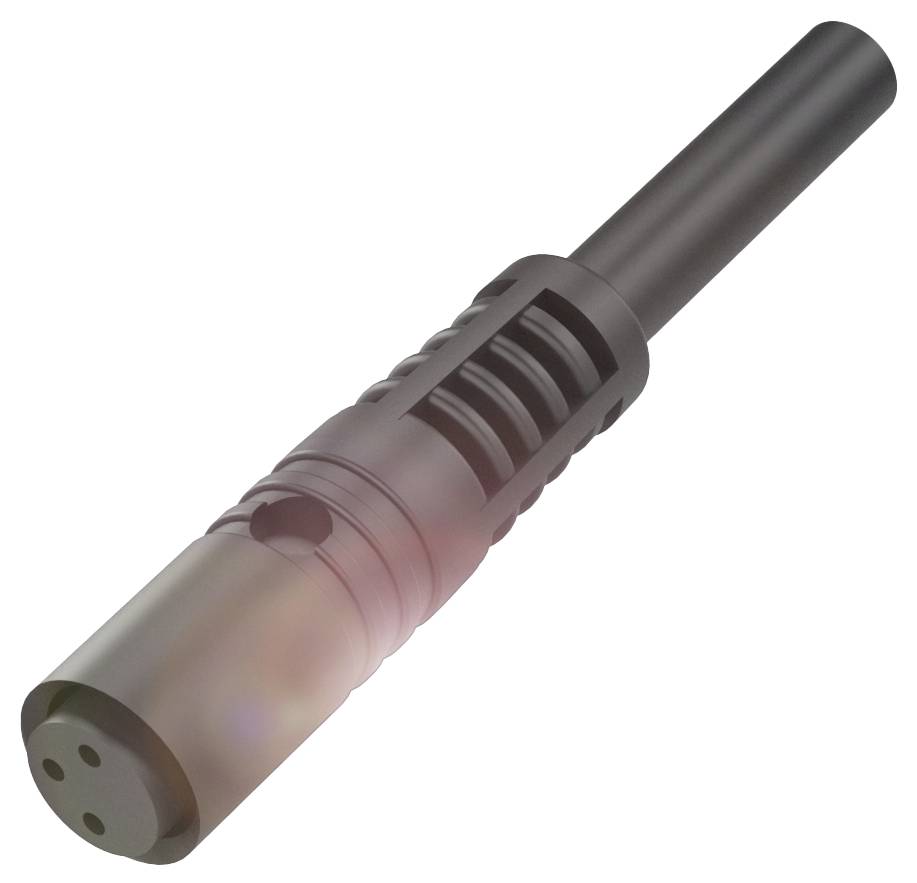

Image similar
BALLUFF BCC0088 Sensor/actuator cable Socket, straight 5.00 m No. of pins (RJ): 3 1 pc(s) Piece
Connector type
Socket, straight
Total no. of pins
3
Connection
Socket
Content
1 pc(s)
Nominal current - rounded value
4 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BCC0088 Connecting wires
- Push-pull socket, straight, 3-pin
- Number of conductors: 3
- Conductor cross-section: 0.34 mm²
- Cable: PUR black, 5 m, suitable for drag chains
- Cable temperature, fixed installation: -50...80 °C.
Technical specifications
- Main features:Connection: Push-pull socket, straight, 3-pin
- Number of conductors: 3
- Operating voltage Ub 60 VDC
- Cable: PUR black, 5 m, suitable for drag chains
- Cable temperature, fixed installation: -50...80 °C.
- Cable temperature, flexible laying: -25...90 °C.
- Conductor cross-section: 0.34 mm²
- Rated current (40 °C) 4.0 A
- Protection system: IP65
- Additional features:
- Operating voltage Ub 60 VDC
- Push-pull socket, straight, 3-pin
- Cable diameter D:4.30 mm ±0.20 mm
- Cable length 5.00 m
- Protection system: IP65
- Ambient temperature -40...90 °C
- Contact material: Bronze
- Number of conductors: 3
- Conductor cross-section: 0.34 mm²
- Rated current (40 °C) 4.0 A
- System: Moulded
- Contact carrier material: TPU
- Number of pins: 3
- Cable: PUR black, 5 m,|suitable for drag chain
- Cable, bending radius min., fixed laying: 5 x D
- Cable, minimum bending radius, flexible laying 10 x D
- Cable, bending cycles min.: 5 MIO.
- Plug configuration: Straight
- Grip body material: TPU
- Cable sheath material PUR
- Acceleration max., drag chain: 5 m/s²
- Cable properties: Suitable for drag chains
- Cable jacket, color: Black
- Travel speed max., drag chain: 200 m/min.
- Travel horizontal max., drag chain: 5 m.
- Travel vertically max., drag chain: 5 m
- Cable temperature UL max., fixed laying 80 °C
- Cable temperature UL max., flexible laying 80 °C
- Cable temperature, drag chain -25...60 °C.
- Cable temperature, fixed installation: -50...80 °C.
- Cable temperature, flexible laying: -25...90 °C.
- Cable, torsional load: ±360°/m
- Type
BCC0088
- Connector type
Socket, straight
- Total no. of pins
3
- Connection
Socket
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
90 °C
- Nominal current
4.0 A
- Min. temperature
-50 °C
- Nominal current - rounded value
4 A
- Nominal voltage
60 V DC
- Manufacturer part #
BCC0088
- Insulation material
Polyurethane
- Number of pins
3
IP65
- Packaging type
Piece
- Cable colour
Black
- Cable length
5.00 m
- Connection side A
PushPull
- Connection side B
Cable, open end
- No. of pins
3
- Outside Ø
4.30 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3420924 BALLUFF BCC0088 Sensor/actuator cable Socket, straight 5.00 m No. of pins (RJ): 3 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3420924 BALLUFF BCC0088 Sensor/actuator cable Socket, straight 5.00 m No. of pins (RJ): 3 1 pc(s) Piece
Description
Select the right connection for reliable transmission of signals, data and power in your application. Various cable types and different connectors are available. Connection = push-pull socket, straight, 3-pole, cable = PUR black, 5.00 m, suitable for drag chains, number of conductors=3, cable temperature, fixed installation=-50...80 °C, cable temperature, flexible laying=-25...90 °C, operating voltage Ub=60 VDC, rated current (40 °C)=4.0 A, protection class=IP65, approval/conformity=CecURusEACWEEE
