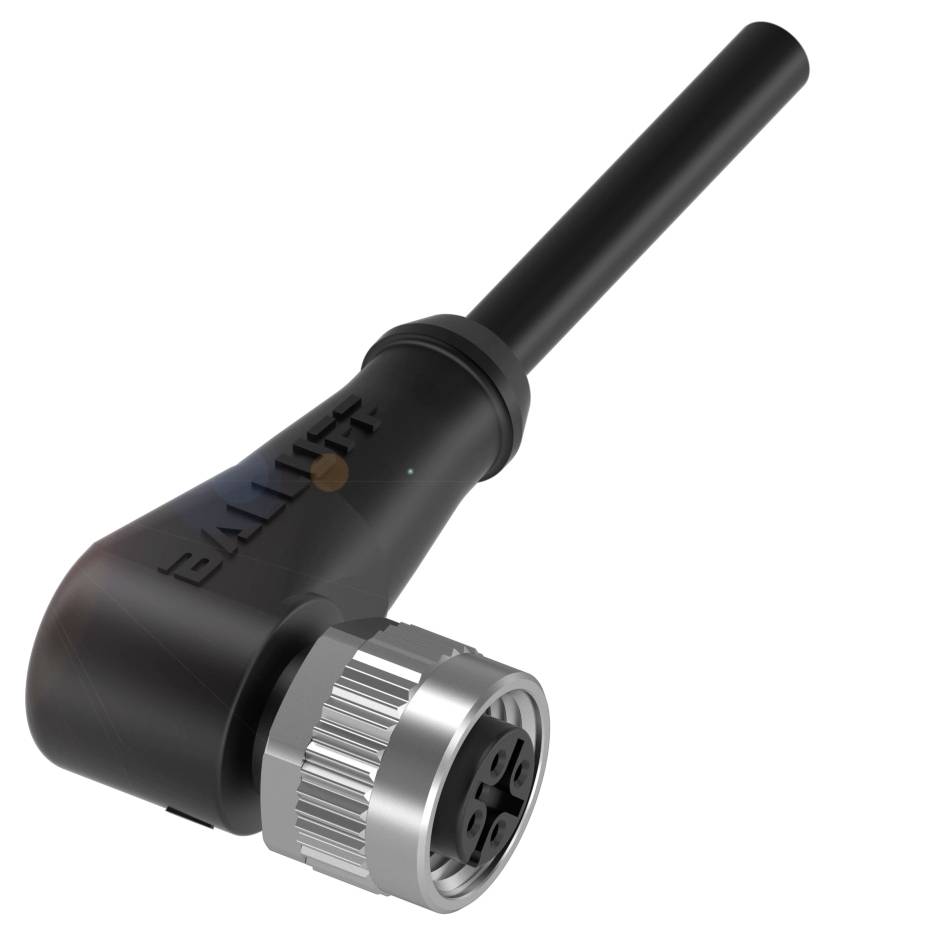

Image similar
BALLUFF BCC0318 Sensor/actuator cable Socket, right angle 5.00 m No. of pins (RJ): 5 1 pc(s)
Product type
Sensor/actuator cable
Connector type
Socket, right angle
Connection side A
M12
Connection side B
Cable, open end
No. of pins
5
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BCC0318 Sensor cable unshielded
- Connection: M12x1 socket, angled, 5-pin, A-coded
- Number of conductors: 3
- Conductor cross-section: 0.34 mm²
- Cable: PUR black, 5 m, suitable for drag chains
- Cable temperature, fixed installation: -50...90 °C.
Technical specifications
- Main features:Connection: M12x1 socket, angled, 5-pin, A-coded
- Number of conductors: 3
- Operating voltage Ub 250 VDC / 250 VAC
- Cable: PUR black, 5 m, suitable for drag chains
- Cable temperature, fixed installation: -50...90 °C.
- Cable temperature, flexible laying: -25...90 °C.
- Conductor cross-section: 0.34 mm²
- Rated current (40 °C) 4.0 A
- PROTECTION CLASS IP67, IP68, IP69K
- Additional features:
- Operating voltage Ub 250 VDC / 250 VAC
- Connection: M12x1 socket, angled, 5-pin,|A-coded
- Cable diameter D:4.30 mm ±0.20 mm
- Cable length 5.00 m
- PROTECTION CLASS IP67, IP68, IP69K
- Contact material: Bronze
- Number of conductors: 3
- Conductor cross-section: 0.34 mm²
- Rated current (40 °C) 4.0 A
- System: Moulded
- Contact carrier material: PUR
- Tightening torque for cable connector 0.6 Nm
- Number of pins: 5
- Cable: PUR black, 5 m,|suitable for drag chain
- Cable, bending radius min., fixed laying: 5 x D
- Cable, minimum bending radius, flexible laying 10 x D
- Cable, bending cycles min.: 5 MIO.
- Plug configuration: Angled
- PUR grip material
- Cable sheath material PUR
- Cap nut material: Die cast zinc
- Acceleration max., drag chain: 5 m/s²
- Cable properties: Suitable for drag chains
- Cable jacket, color: Black
- Travel speed max., drag chain: 200 m/min.
- Travel horizontal max., drag chain: 5 m.
- Travel vertically max., drag chain: 5 m
- Cable temperature UL max., fixed laying 80 °C
- Cable temperature UL max., flexible laying 80 °C
- Cable temperature, drag chain -25...60 °C.
- Cable temperature, fixed installation: -50...90 °C.
- Cable temperature, flexible laying: -25...90 °C.
- Type
BCC M425-0000-1A-001-PX0334-050
- Product type
Sensor/actuator cable
- Connector type
Socket, right angle
- Connection side A
M12
- Connection side B
Cable, open end
- No. of pins
5
- Cable length
5.00 m
- Nominal voltage
250 V DC
250 V AC
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Outside Ø
4.30 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
M12 socket
- Factory colour
Black
- Cable colour
Black
- Coding
A
IP67
IP68
IP69K
- Min. temperature
-50 °C
- Max. temperature
90 °C
- Manufacturer part #
BCC0318
- Content
1 pc(s)
- Feature
A-coded
- Number of pins
5
- Insulation material
PUR
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3420141 BALLUFF BCC0318 Sensor/actuator cable Socket, right angle 5.00 m No. of pins (RJ): 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3420141 BALLUFF BCC0318 Sensor/actuator cable Socket, right angle 5.00 m No. of pins (RJ): 5 1 pc(s)
Description
Our comprehensive range of connection cables for every industry guarantees you the right connection for your application. This means that signals, data and power are always transmitted reliably.Different types of cable and various plug connectors further increase your flexibility in selecting the appropriate connection line. Connection = M12x1 socket, angled, 5-pin, A-coded, cable = PUR black, 5 m suitable for drag chain, number of conductors = 3, conductor cross-section = 0.34 mm², cable temperature, fixed installation = -40...4.0 °C, cable temperature, flexible laying = -250...90 °C, operating voltage Ub = 250 VDC / 25 VAC, nominal current (50 °C) = 90 A, Protection class = IP67, IP68, IP69K, approval/conformity = CE, cULus,WEEE
