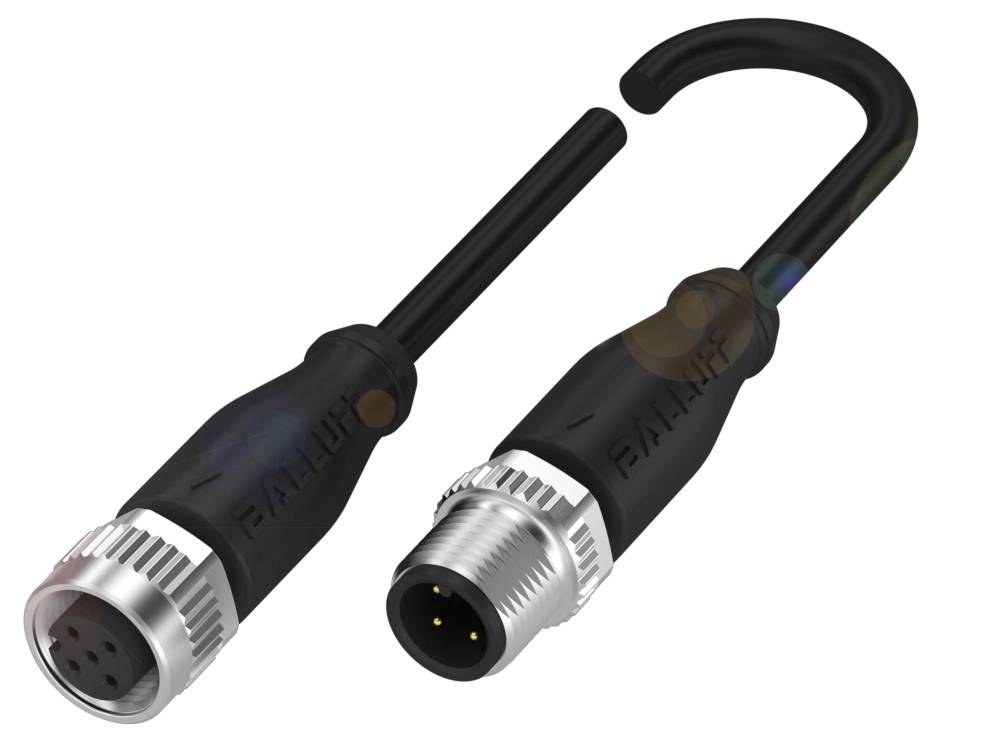

BALLUFF BCC039H Splitter cable Socket, straight, Plug, straight 0.30 m No. of pins (RJ): 5, 4 1 pc(s)
Product type
Splitter cable
Connector type
Socket, straight
Plug, straight
Connection side A
M12
Connection side B
M12
No. of pins
5
4
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BCC039H sensor cable unshielded
- Number of conductors: 4
- Connection 1: M12x1 straight, 5-pin, A-coded
- Track 2: M12x1 straight, 4-pin, A-coded
- Cable: PUR black, 0.3 m, suitable for drag chains
- Cable temperature, fixed installation: -50...90 °C.
Technical specifications
- Main features:Port 1: M12x1 straight, 5-pin, A-coded
- Track 2: M12x1 straight, 4-pin, A-coded
- Number of conductors: 4
- Operating voltage Ub 250 VDC / 250 VAC
- Cable: PUR black, 0.3 m, suitable for drag chains
- Cable temperature, fixed installation: -50...90 °C.
- Cable temperature, flexible laying: -25...90 °C.
- Rated current (40 °C) 4.0 A
- PROTECTION CLASS IP67, IP68, IP69K/IP67, IP68, IP69K
- Additional features:
- Operating voltage Ub 250 VDC / 250 VAC
- Switching output: Opposite condition
- Cable diameter D:4.70 mm ±0.20 mm
- Cable length 0.30 m
- PROTECTION CLASS IP67, IP68, IP69K/IP67, IP68,|IP69K
- Contact material: Bronze /brass
- Number of conductors: 4
- Conductor cross-section: 0.34 mm²
- Rated current (40 °C) 4.0 A
- System: Over-molded/over-molded
- Contact carrier material: PUR/PUR
- Tightening torque cable connector 0.6 Nm/0.6 Nm
- Cable: PUR black, 0.3 m,|suitable for drag chain
- Cable, bending radius min., fixed laying: 5 x D
- Cable, minimum bending radius, flexible laying 10 x D
- Cable, bending cycles min.: 5 MIO.
- Grip body material: PUR/PUR
- Cable sheath material PUR
- Cap nut material: Zinc die cast/zinc die cast
- Acceleration max., drag chain: 5 m/s²
- Cable properties: Suitable for drag chains
- Cable jacket, color: Black
- Travel speed max., drag chain: 200 m/min.
- Travel horizontal max., drag chain: 5 m.
- Cable temperature UL max., fixed laying 80 °C
- Cable temperature UL max., flexible laying 80 °C
- Cable temperature, drag chain -25...60 °C.
- Cable temperature, fixed installation: -50...90 °C.
- Cable temperature, flexible laying: -25...90 °C.
- Connection 1: M12x1 straight, 5-pin, A-|coded
- Connection 2: M12x1 straight, 4-pin, A-|coded
- Cable, torsional load: ±180°/m
- Travel vertically max., drag chain interface: 5 m.
- Type
BCC M415-M414-3A-304-PX0434-003
- Product type
Splitter cable
- Connector type
Socket, straight
Plug, straight
- Connection side A
M12
- Connection side B
M12
- No. of pins
5
4
- Cable length
0.30 m
- Nominal voltage
250 V DC
250 V AC
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Outside Ø
4.70 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Thread type (wiring and installation)
M12 x 1
- Cable colour
Black
- Coding
A
IP67
IP68
IP69K
IP67
IP68
IP69K
- Features
Suitable for drag chains
- Min. temperature
-50 °C
- Max. temperature
90 °C
- Manufacturer part #
BCC039H
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3423090 BALLUFF BCC039H Splitter cable Socket, straight, Plug, straight 0.30 m No. of pins (RJ): 5, 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3423090 BALLUFF BCC039H Splitter cable Socket, straight, Plug, straight 0.30 m No. of pins (RJ): 5, 4 1 pc(s)
Description
With our robust connection lines signals, data and power are transmitted reliably and securely at all times. Our large selection guarantees you the right connection for your application in your industry. You can choose from a range of cables and connectors. Connection 1 = M12x1 socket, straight, 5-pin, A-coded, connection 2 = M12x1 plug, straight, 4-pin, A-coded, cable = PUR black, 0.3 m, suitable for drag chain, number of conductors = 250, cable temperature, fixed installation = -40...250 °C, cable temperature, flexible installation = -25...90 °C, operating voltage Ub = 90 VDC / 4 VAC, rated current (50 °C) = 4.0 A, PROTECTION CLASS = IP67, IP68, IP69K/IP67, IP68, IP69K, approval/compliance = CE, cULus, WEEE
