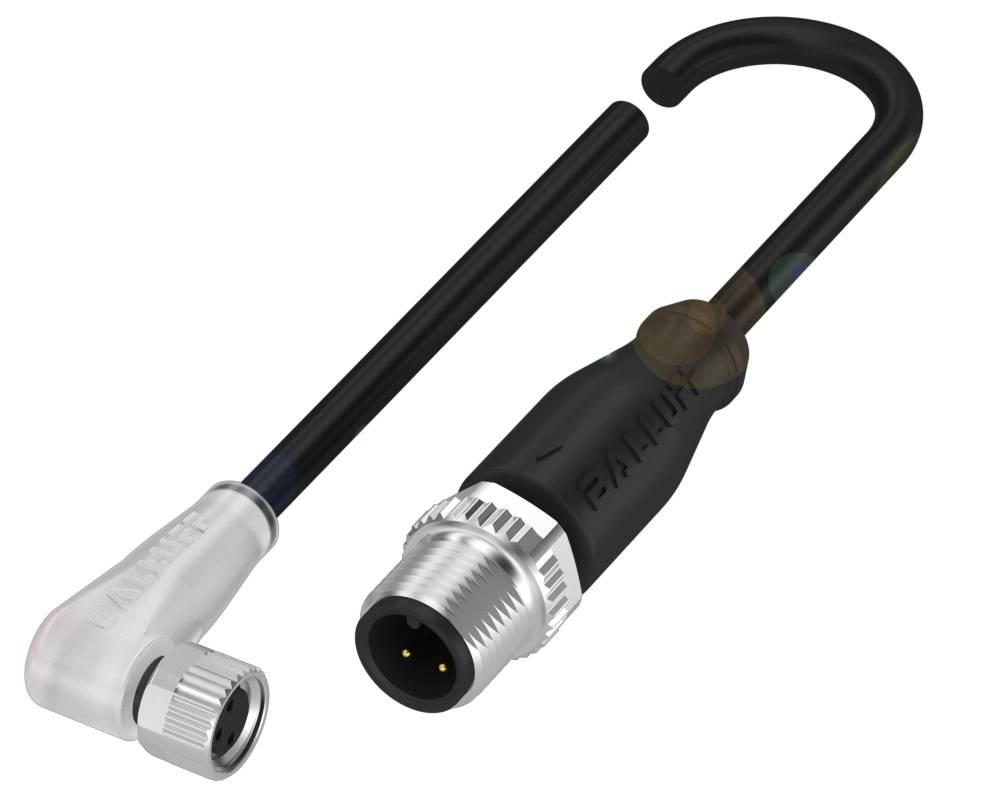

BALLUFF BCC03H7 Splitter cable M8 x 1 Socket, right angle, Plug, straight 1.00 m No. of pins (RJ): 3 1 pc(s)
Connector type
Socket, right angle
Plug, straight
Connection
Socket
Content
1 pc(s)
Nominal current - rounded value
4 A
Nominal voltage
30 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BCC03H7 sensor cable unshielded
- Connection 1: M8x1 jack, angled, 3-pin, A-coded
- Track 2: M12x1 straight, 3-pin, A-coded
- Operating voltage display: LED green / no.
- Function display: Yes/no
- Function indicator (pin 4): Yellow LED
Technical specifications
- Main features:Connection 1: M8x1 jack, angled, 3-pin, A-coded
- Track 2: M12x1 straight, 3-pin, A-coded
- Number of conductors: 3
- Operating voltage Ub 30 VDC
- Operating voltage display: LED green / no.
- Function display: Yes/no
- Function indicator (pin 4): Yellow LED
- Cable: PUR black, 1 m, suitable for drag chains
- Cable temperature, fixed installation: -50...90 °C.
- Cable temperature, flexible laying: -25...90 °C.
- Rated current (40 °C) 4.0 A
- PROTECTION CLASS IP67, IP69K/IP67, IP68, IP69K
- Additional features:
- Operating voltage display: LED green / no.
- Operating voltage Ub 30 VDC
- Switching output: PNP NO
- Cable diameter D:4.30 mm ±0.20 mm
- Cable length 1.00 m
- PROTECTION CLASS IP67, IP69K/IP67, IP68, IP69K
- Contact material: Bronze /brass
- Number of conductors: 3
- Conductor cross-section: 0.34 mm²
- Rated current (40 °C) 4.0 A
- System: Over-molded/over-molded
- Contact carrier material: PUR/PUR
- Tightening torque cable connector 0.4 Nm/0.6 Nm
- Cable: PUR black, 1 m,|suitable for drag chain
- Cable, bending radius min., fixed laying: 5 x D
- Cable, minimum bending radius, flexible laying 10 x D
- Cable, bending cycles min.: 5 MIO.
- Grip body material: PUR/PUR
- Cable sheath material PUR
- Cap nut material: Die cast zinc or brass|nickel plated/die cast zinc
- Acceleration max., drag chain: 5 m/s²
- Cable properties: Suitable for drag chains
- Cable jacket, color: Black
- Travel speed max., drag chain: 200 m/min.
- Travel horizontal max., drag chain: 5 m.
- Cable temperature UL max., fixed laying 80 °C
- Cable temperature UL max., flexible laying 80 °C
- Cable temperature, drag chain -25...60 °C.
- Cable temperature, fixed installation: -50...90 °C.
- Cable temperature, flexible laying: -25...90 °C.
- Function indicator (pin 4): Yellow LED
- Connection 1: M8x1 jack, angled, 3-pin,|A-coded
- Connection 2: M12x1 straight, 3-pin, A-|coded
- Cable, torsional load: ±180°/m
- Travel vertically max., drag chain interface: 5 m.
- Type
BCC03H7
- Connector type
Socket, right angle
Plug, straight
- Connection
Socket
- Content
1 pc(s)
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Nominal voltage
30 V
- Manufacturer part #
BCC03H7
IP67/IP69K
- Cable colour
Black
- Cable length
1.00 m
- Connector standard
Sensor connector
- Jacket material
PUR
- Coding
A
- Connection side A
Socket, straight
- Connection side B
M12
- No. of pins
3
- Thread type connection side
M8 x 1
- Outside Ø
4.30 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3420192 BALLUFF BCC03H7 Splitter cable M8 x 1 Socket, right angle, Plug, straight 1.00 m No. of pins (RJ): 3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3420192 BALLUFF BCC03H7 Splitter cable M8 x 1 Socket, right angle, Plug, straight 1.00 m No. of pins (RJ): 3 1 pc(s)
Description
With our robust connection lines signals, data and power are transmitted reliably and securely at all times. Our large selection guarantees you the right connection for your application in your industry. You can choose from a range of cables and connectors. Connection 1 = M8x1 socket, angled, 3-pin, A-coded, connection 2 = M12x1 plug, straight, 3-pin, A-coded, operating voltage display = LED green/no, function display = yes/no, function display (pin 4) = yellow, cable = PUR black, 1 m, suitable for drag chain, number of conductors = 3, cable temperature, fixed installation = -50...90 °C, cable temperature, cable temperature, Flexible laying = -25...90 °C, operating voltage Ub = 30 VDC, rated current (40 °C) = 4.0 A, protection class = IP67, IP69K/IP67, IP68, IP69K, Approval/conformity = CE, cULus, WEEE
