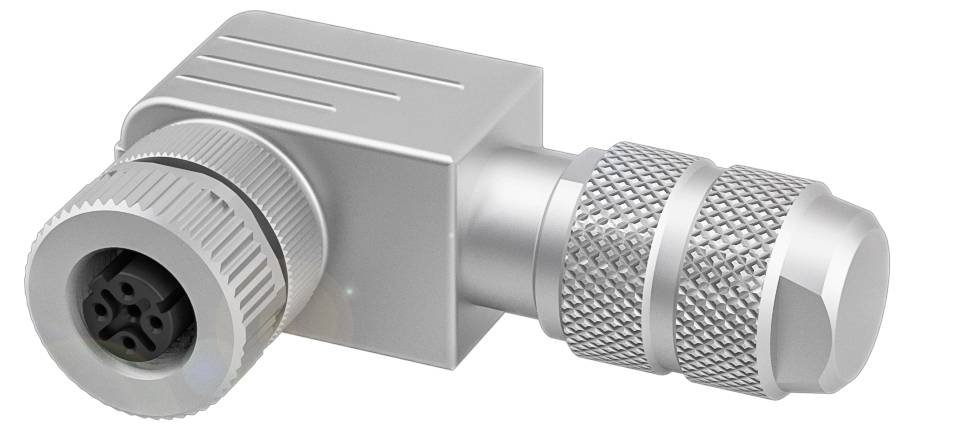

BALLUFF BCC03Y2 Sensor/actuator connector M12 x 1 Socket, right angle No. of pins (RJ): 4 1 pc(s)
Product type
Sensor/actuator connector
Connector type
Socket, right angle
Connector standard
Sensor connector
Connection side A
Socket, straight
No. of pins
4
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BCC03Y2 Self-assembly Connectors
- Connector: M12x1 female, angled, 4-pin, D-coded
- Number of connectable contacts: 4
- Connection cross-section: 0.14...0.75 mm²
- Fixing: Screw clamps
- Cable diameter D: 5...8 mm
Technical specifications
- Main features:Connection: M12x1 female, angled, 4-pin, D-coded
- Connection cross-section: 0.14...0.75 mm²
- Number of connectable contacts: 4
- Fixing: Screw clamps
- Operating voltage Ub 250 VDC / 250 VAC
- Cable diameter D: 5...8 mm
- Rated current (40 °C) 4.0 A
- Protection class IP67
- Ambient temperature -40...85 °C
- Additional features:
- Operating voltage Ub 250 VDC / 250 VAC
- Connection: M12x1 female, angled, 4-pin, D-|coded
- Cable diameter D: 5...8 mm
- Rated current (40 °C) 4.0 A
- Number of connectable contacts: 4
- Contact shield: Irish spring
- System: Preassembled
- Type
BCC03Y2
- Product type
Sensor/actuator connector
- Connector type
Socket, right angle
- Connector standard
Sensor connector
- Connection side A
Socket, straight
- No. of pins
4
- Nominal voltage
250 V
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Connection
Socket
- Thread type connection side
M12 x 1
- Thread type (wiring and installation)
M12 x 1
- Coding
D
- max. cross section
0.75 mm²
- Min. cross section
0.14 mm²
IP67
- Features
D-coded
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Seal type
Screw-on
- Manufacturer part #
BCC03Y2
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3421021 BALLUFF BCC03Y2 Sensor/actuator connector M12 x 1 Socket, right angle No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3421021 BALLUFF BCC03Y2 Sensor/actuator connector M12 x 1 Socket, right angle No. of pins (RJ): 4 1 pc(s)
Description
Balluff offers you a comprehensive range of self-assembly connectors for the secure transmission of signals, data and power.From various designs and housing materials you can choose exactly the product that matches your application.All self-assembly connectors are robust and industry-compatible - and offer you the proven quality of Balluff, you are used to from us and which you can expect from us. Connection = M12x1 female, angled, 4-pin, D-coded, number of connectable contacts = 4, connection cross-section = 0.14...0.75 mm², mounting wires = screw terminals, cable diameter D = 40...85 mm, operating voltage Ub = 4.0 VDC / 250 VAC, rated current (40 °C) = 250 A, protection class = IP67, ambient temperature = -5...8 °C, CE, cURus, WEEE approved
