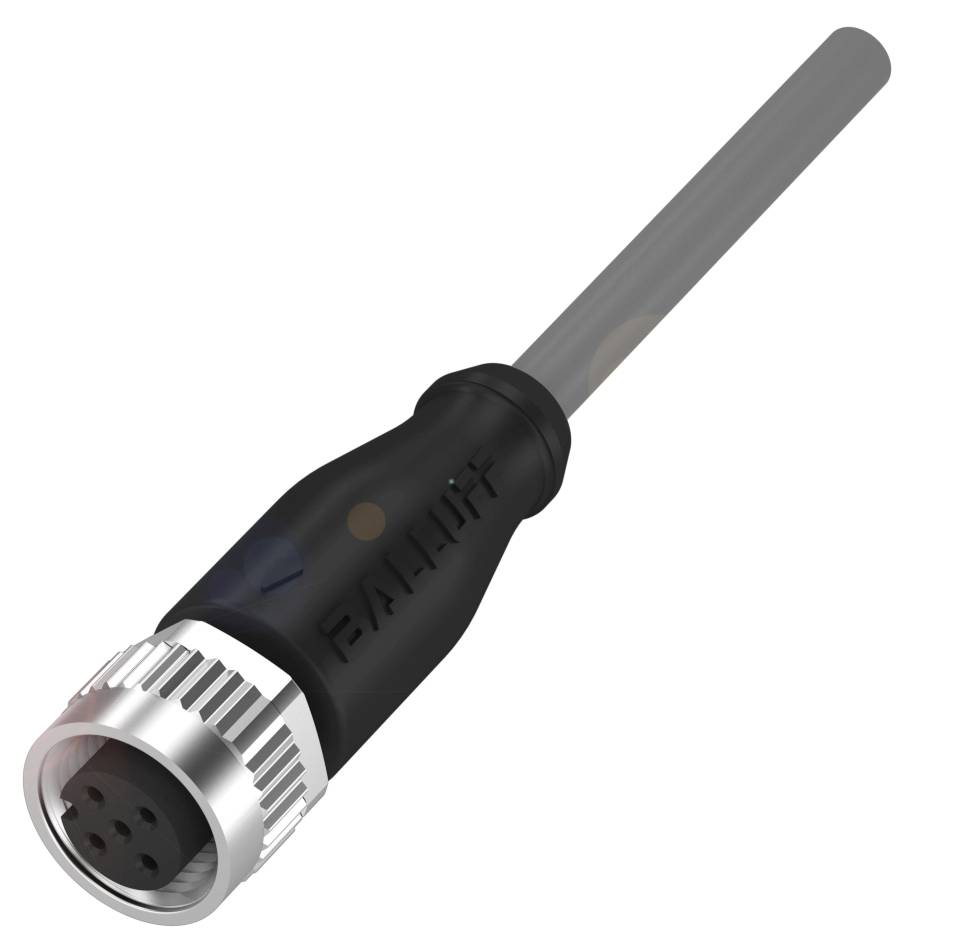

BALLUFF BCC08MK Sensor/actuator cable Socket, straight 3.00 m No. of pins (RJ): 5 1 pc(s) Piece
Connector type
Socket, straight
Total no. of pins
5
Connection
Socket
Content
1 pc(s)
Nominal current - rounded value
4 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BCC08MK Sensor cable unshielded
- Connector: M12x1 straight, 5-pin, A-coded
- Number of conductors: 4
- Conductor cross-section: 0.34 mm²
- Switching output: Opposite condition
- Cable: PVC gray, 3 m, drag chain compatible
Technical specifications
- Main features:Connection: M12x1 socket, straight, 5-pin, A-coded
- Number of conductors: 4
- Operating voltage Ub 250 VDC / 250 VAC
- Cable: PVC gray, 3 m, drag chain compatible
- Cable temperature, fixed installation: -40...105 °C.
- Cable temperature, flexible laying: -5...105 °C.
- Conductor cross-section: 0.34 mm²
- Rated current (40 °C) 4.0 A
- Switching output: Opposite condition
- PROTECTION CLASS IP67, IP68, IP69K
- Additional features:
- Operating voltage Ub 250 VDC / 250 VAC
- Connection: M12x1 straight, 5-pin, A-|coded
- Switching output: Opposite condition
- Cable diameter D:4.80 mm ±0.15 mm
- Cable length 3.00 m
- PROTECTION CLASS IP67, IP68, IP69K
- Contact material: Bronze
- Number of conductors: 4
- Conductor cross-section: 0.34 mm²
- Rated current (40 °C) 4.0 A
- System: Moulded
- Contact carrier material: PUR
- Tightening torque for cable connector 0.6 Nm
- Number of pins: 5
- Cable: PVC gray, 3 m,|suitable for drag chain
- Cable, bending radius min., fixed laying: 5 x D
- Cable, minimum bending radius, flexible laying 10 x D
- Cable, bending cycles min.: 2 MIO.
- Plug configuration: Straight
- PUR grip material
- Cable sheath material PVC
- Cap nut material: Die cast zinc
- Acceleration max., drag chain: 5 m/s²
- Cable properties: Suitable for drag chains
- Cable jacket, color: Grey
- Travel speed max., drag chain: 200 m/min.
- Travel horizontal max., drag chain: 5 m.
- Travel vertically max., drag chain: 2 m
- Cable temperature UL max., fixed laying 80 °C
- Cable temperature UL max., flexible laying 80 °C
- Cable temperature, drag chain -5...60 °C.
- Cable temperature, fixed installation: -40...105 °C.
- Cable temperature, flexible laying: -5...105 °C.
- Type
BCC M415-0000-1A-003-VX8434-030
- Connector type
Socket, straight
- Total no. of pins
5
- Connection
Socket
- Content
1 pc(s)
- Max. temperature
105 °C
- Nominal current
4.0 A
- Min. temperature
-40 °C
- Nominal current - rounded value
4 A
- Nominal voltage
250 V DC
250 V AC
- Manufacturer part #
BCC08MK
- Insulation material
PVC
- Number of pins
5
- Feature
A-coded
IP67
IP68
IP69K
- Packaging type
Piece
- Cable colour
Grey
- Cable length
3.00 m
- Coding
A
- Connection side A
M12
- Connection side B
Cable, open end
- No. of pins
5
- Outside Ø
4.80 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3420163 BALLUFF BCC08MK Sensor/actuator cable Socket, straight 3.00 m No. of pins (RJ): 5 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3420163 BALLUFF BCC08MK Sensor/actuator cable Socket, straight 3.00 m No. of pins (RJ): 5 1 pc(s) Piece
Description
Our comprehensive range of connection cables for every industry guarantees you the right connection for your application. This means that signals, data and power are always transmitted reliably.Different types of cable and various plug connectors further increase your flexibility in selecting the appropriate connection line. Connection = M12x1 socket, straight, 5-pole, A-coded, switched output = analog, Cable = PVC gray, 3 m, suitable for drag chains, number of conductors = 4, conductor cross-section = 0.34 mm², cable temperature, fixed installation = -40...105 °C, cable temperature, flexible installation = -5...105 °C, operating voltage Ub = 4.0 VDC / 250 VAC, nominal current (40 °C) = 250 A, protection type = IP67, IP68, IP69K, approval/conformity = CE, cULus,WEEE
