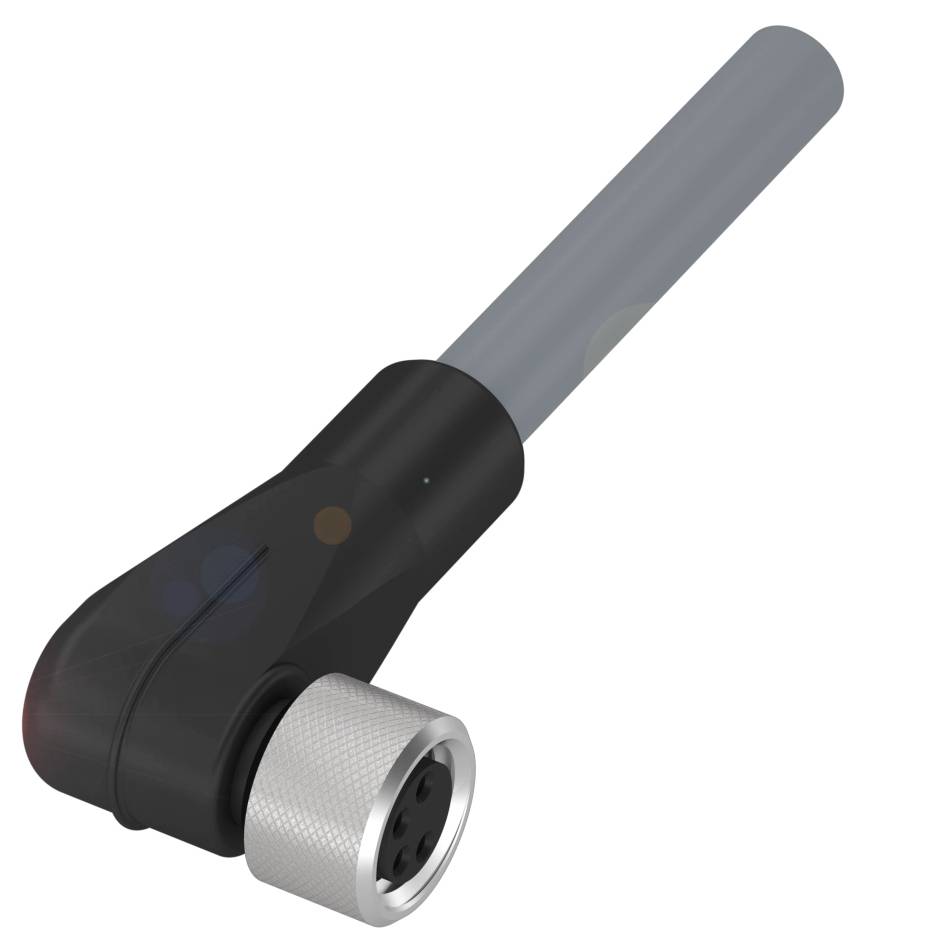

BALLUFF BCC08N3 Sensor/actuator cable M8 Socket, right angle 3.00 m No. of pins (RJ): 4 1 pc(s)
Product type
Sensor/actuator cable
Connector type
Socket, right angle
Connection side A
M8
Connection side B
Cable, open end
No. of pins
4
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BCC08N3 Sensors cable shielded
- Connection: M8x1-female, angled, 4-pin, A-coded
- Number of conductors: 4
- Conductor cross-section: 0.34 mm²
- Switching output: Opposite condition
- Cable: PVC shielded gray, 3 m, suitable for drag chain
Technical specifications
- Main features:Connection: M8x1-female, angled, 4-pin, A-coded
- Number of conductors: 4
- Operating voltage Ub 60 VDC / 60 VAC
- Cable: PVC shielded gray, 3 m, suitable for drag chain
- Cable temperature, fixed installation: -40...105 °C.
- Cable temperature, flexible laying: -5...105 °C.
- Conductor cross-section: 0.34 mm²
- Rated current (40 °C) 4.0 A
- Switching output: Opposite condition
- Protection class IP67
- Additional features:
- Operating voltage Ub 60 VDC / 60 VAC
- Connection: M8x1 jack, angled, 4-pin,|A-coded
- Switching output: Opposite condition
- Cable diameter D:5.40 mm ±0.10 mm
- Cable length 3.00 m
- Protection class IP67
- Contact material: Bronze
- Number of conductors: 4
- Conductor cross-section: 0.34 mm²
- Rated current (40 °C) 4.0 A
- System: Moulded
- Contact carrier material: PUR
- Tightening torque for cable connector 0.4 Nm
- Number of pins: 4
- Cable: PVC shielded gray, 3 m,|suitable for drag chain
- Cable, bending radius min., fixed laying: 5 x D
- Cable, minimum bending radius, flexible laying 10 x D
- Cable, bending cycles min.: 2 MIO.
- Plug configuration: Angled
- PUR grip material
- Cable sheath material PVC
- Cap nut material: Brass
- Acceleration max., drag chain: 5 m/s²
- Cable properties: Suitable for drag chains
- Cable jacket, color: Grey
- Travel speed max., drag chain: 200 m/min.
- Travel horizontal max., drag chain: 5 m.
- Travel vertically max., drag chain: 2 m
- Cable temperature, drag chain -5...60 °C.
- Cable temperature, fixed installation: -40...105 °C.
- Cable temperature, flexible laying: -5...105 °C.
- Cable, shielding: Tin-plated copper braid
- Cable sheath material, note: Shielded
- Type
BCC08N3
- Product type
Sensor/actuator cable
- Connector type
Socket, right angle
- Connection side A
M8
- Connection side B
Cable, open end
- No. of pins
4
- Cable length
3.00 m
- Jacket material
PVC
- Nominal voltage
60 V DC
60 V AC
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Outside Ø
5.40 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Thread type connection side
M8
- Thread type (wiring and installation)
M8
- Cable colour
Grey
- Coding
A
IP67
- Features
Shielded
- Min. temperature
-40 °C
- Max. temperature
105 °C
- Manufacturer part #
BCC08N3
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3420272 BALLUFF BCC08N3 Sensor/actuator cable M8 Socket, right angle 3.00 m No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3420272 BALLUFF BCC08N3 Sensor/actuator cable M8 Socket, right angle 3.00 m No. of pins (RJ): 4 1 pc(s)
Description
Select the right connection for reliable transmission of signals, data and power in your application. Various cable types and different connectors are available. Connection=M8x1 socket, angled, 4-pin, A-coded, cable=PVC shielded gray, 3.00 m, number of conductors=4, cable temperature, fixed installation=-20...105 °C, operating voltage Ub=60 VDC / 60 VAC, nominal current (40 °C)=4.0 A, protection class=IP67, approval/conformity=CEEACWEEE
