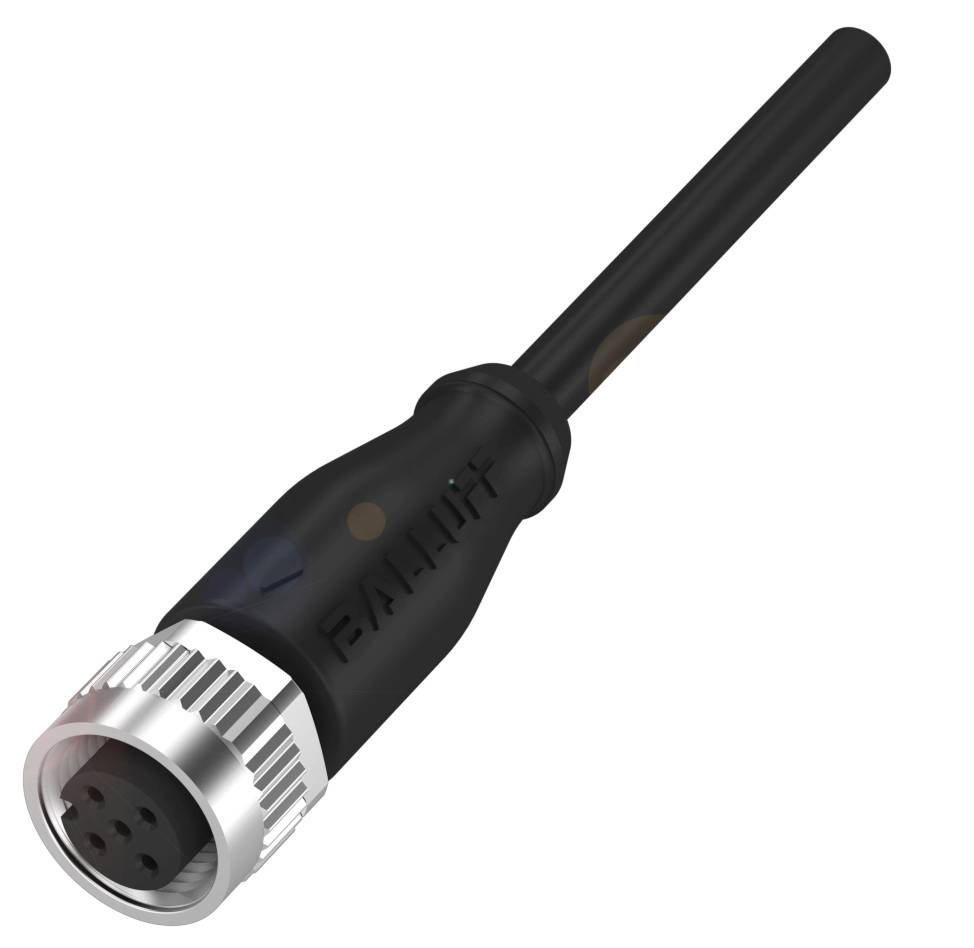

BALLUFF BCC09H4 Sensor/actuator cable M12 Socket, straight 2.00 m No. of pins (RJ): 5 1 pc(s) Piece
Product type
Sensor/actuator cable
Connector type
Socket, straight
Connector standard
Sensor connector
Connection side A
M12
Connection side B
Cable, open end
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BCC09H4 sensor cable unshielded
- Connector: M12x1 straight, 5-pin, A-coded
- Number of conductors: 5
- Conductor cross-section: 0.34 mm²
- Switching output: Opposite condition
- Cable: PUR black, 2 m, suitable for drag chains
Technical specifications
- Main features:Connection: M12x1 socket, straight, 5-pin, A-coded
- Number of conductors: 5
- Operating voltage Ub 60 VDC / 60 VAC
- Cable: PUR black, 2 m, suitable for drag chains
- Cable temperature, fixed installation: -50...90 °C.
- Cable temperature, flexible laying: -25...90 °C.
- Conductor cross-section: 0.34 mm²
- Rated current (40 °C) 4.0 A
- Switching output: Opposite condition
- PROTECTION CLASS IP67, IP68, IP69K
- Additional features:
- Operating voltage Ub 60 VDC / 60 VAC
- Connection: M12x1 straight, 5-pin, A-|coded
- Switching output: Opposite condition
- Cable diameter D:5.00 mm ±0.20 mm
- Cable length 2.00 m
- PROTECTION CLASS IP67, IP68, IP69K
- Contact material: Bronze
- Number of conductors: 5
- Conductor cross-section: 0.34 mm²
- Rated current (40 °C) 4.0 A
- System: Moulded
- Contact carrier material: PUR
- Tightening torque for cable connector 0.6 Nm
- Number of pins: 5
- Cable: PUR black, 2 m,|suitable for drag chain
- Cable, bending radius min., fixed laying: 5 x D
- Cable, minimum bending radius, flexible laying 10 x D
- Cable, bending cycles min.: 2 MIO.
- Plug configuration: Straight
- PUR grip material
- Cable sheath material PUR
- Cap nut material: Die cast zinc
- Acceleration max., drag chain: 5 m/s²
- Cable properties: Suitable for drag chains
- Cable jacket, color: Black
- Travel speed max., drag chain: 200 m/min.
- Travel horizontal max., drag chain: 5 m.
- Cable temperature UL max., fixed laying 80 °C
- Cable temperature UL max., flexible laying 80 °C
- Cable temperature, drag chain -25...60 °C.
- Cable temperature, fixed installation: -50...90 °C.
- Cable temperature, flexible laying: -25...90 °C.
- Travel vertically max., drag chain interface: 5 m.
- Packaging type
Piece
- Type
BCC09H4
- Product type
Sensor/actuator cable
- Connector type
Socket, straight
- Connector standard
Sensor connector
- Connection side A
M12
- Connection side B
Cable, open end
- No. of pins
5
- Cable length
2.00 m
- Jacket material
PUR
- Nominal voltage
60 V DC
60 V AC
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Outside Ø
5.00 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
M12 socket
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Cable colour
Black
- Coding
A
IP67/IP69K
- Features
Suitable for drag chains
- Min. temperature
-50 °C
- Max. temperature
90 °C
- Manufacturer part #
BCC09H4
- Content
1 pc(s)
- UKCA
yes
