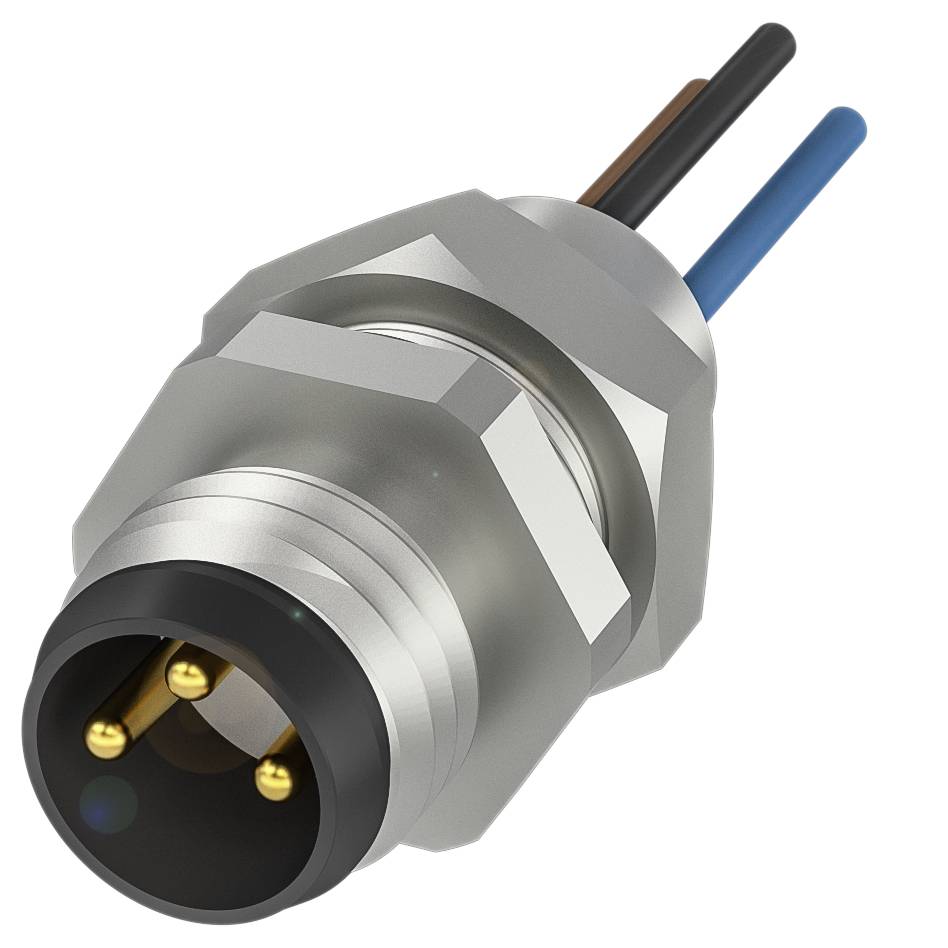

BALLUFF BCC0E50 Flanged connector Plug, straight No. of pins (RJ): 3 1 pc(s)
Connector type
Plug, straight
Connection
Plug
Content
1 pc(s)
Nominal current - rounded value
4 A
Nominal voltage
60 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BCC0E50 Flange Sockets
- Connection: M8x1-plug, straight, 3-pin, A-coded
- Number of conductors: 3
- Conductor cross-section: 0.25 mm²
- Wire length L 0.50 m
- Operating voltage Ub 60 VDC / 60 VAC
Technical specifications
- Main features:Connection: M8x1-plug, straight, 3-pin, A-coded
- Number of conductors: 3
- Operating voltage Ub 60 VDC / 60 VAC
- Conductor cross-section: 0.25 mm²
- Wire length L 0.50 m
- Rated current (40 °C) 4.0 A
- Protection class IP67
- Additional features:
- Operating voltage Ub 60 VDC / 60 VAC
- Connection: M8x1 plug, straight, 3-pin, A-|coded
- Number of conductors: 3
- Conductor cross-section: 0.25 mm²
- Rated current (40 °C) Electrical connection: 4.0 A.
- Type
BCC0E50
- Connector type
Plug, straight
- Connection
Plug
- Content
1 pc(s)
- Max. temperature
85 °C
- Nominal current
4.0 A
- Min. temperature
-25 °C
- Nominal current - rounded value
4 A
- Nominal voltage
60 V
- Manufacturer part #
BCC0E50
IP67
- Coding
A
- Connection side A
M8
- No. of pins
3
- Cross-section (sensor/actuator wiring)
0.25 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3422948 BALLUFF BCC0E50 Flanged connector Plug, straight No. of pins (RJ): 3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3422948 BALLUFF BCC0E50 Flanged connector Plug, straight No. of pins (RJ): 3 1 pc(s)
Description
Our flange connectors ensure reliable and fast connection. Choose from different designs of the robust and industry-standard products. Connection=M8x1 connector, straight, 3-pole, A-coded, number of conductors=3, Conductor cross-section=0.25 mm², strand length L=0.50 m, operating voltage Ub=60 VDC / 60 VAC, nominal current (40 °C)=4.0 A, protection class=IP67, approval/conformity=EACWEEE
