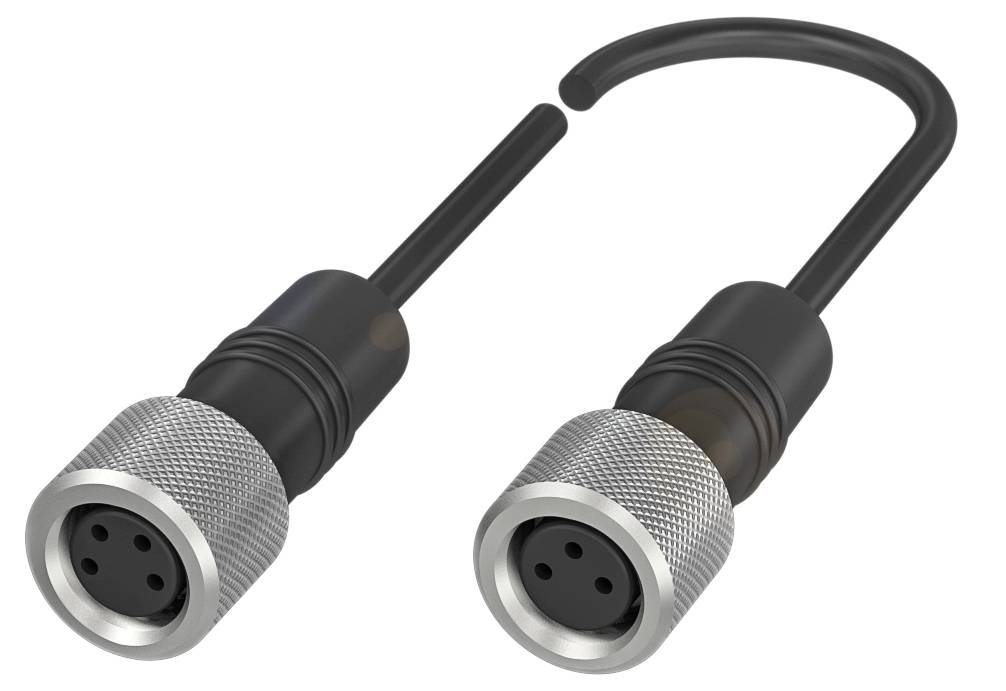

Image similar
BALLUFF BCC0FTJ Splitter cable M8 x 1 Socket, straight, Socket, straight 2.00 m No. of pins (RJ): 4 1 pc(s)
Product type
Splitter cable
Connector type
Socket, straight
Socket, straight
Connector standard
Sensor connector
Connection side A
Socket, straight
Connection side B
M8
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
BCC0FTJ Connecting wires
- Number of conductors: 4
- Connection 1: M8x1 jack, straight, 4-pin, A-coded
- Connection 2: M8x1 jack, straight, 3-pin, A-coded
- Cable: PUR shielded black, 2 m
- Cable temperature, fixed installation: -30...70 °C.
Technical specifications
- Main features:Connection 1: M8x1 socket, straight, 4-pin, A-coded
- Connection 2: M8x1 jack, straight, 3-pin, A-coded
- Number of conductors: 4
- Operating voltage Ub 60 VDC / 60 VAC
- Cable: PUR shielded black, 2 m
- Cable temperature, fixed installation: -30...70 °C.
- Cable temperature, flexible laying: -5...50 °C.
- Rated current (40 °C) 4.0 A
- Protection class IP67/IP67
- Additional features:
- Operating voltage Ub 60 VDC / 60 VAC
- Cable diameter D 1.70 mm
- Number of conductors: 4
- Conductor cross-section: 0.02 mm²
- Rated current (40 °C) 4.0 A
- System: Over-molded/over-molded
- Cable: PUR shielded black, 2 m
- Connection 1: M8x1 jack, straight, 4-pin, A-|coded
- Connection 2: M8x1 jack, straight, 3-pin, A-|coded
- Type
BCC0FTJ
- Product type
Splitter cable
- Connector type
Socket, straight
Socket, straight
- Connector standard
Sensor connector
- Connection side A
Socket, straight
- Connection side B
M8
- No. of pins
4
- Cable length
2.00 m
- Jacket material
PUR
- Nominal voltage
60 V
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Outside Ø
1.70 mm
- Cross-section (sensor/actuator wiring)
0.02 mm²
- Connection
Socket
- Thread type connection side
M8 x 1
- Thread type (wiring and installation)
M8 x 1
- Coding
A
IP67
- Features
Shielded
- Min. temperature
-30 °C
- Max. temperature
70 °C
- Manufacturer part #
BCC0FTJ
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3420509 BALLUFF BCC0FTJ Splitter cable M8 x 1 Socket, straight, Socket, straight 2.00 m No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3420509 BALLUFF BCC0FTJ Splitter cable M8 x 1 Socket, straight, Socket, straight 2.00 m No. of pins (RJ): 4 1 pc(s)
Description
With our robust connection lines signals, data and power are transmitted reliably and securely at all times. Select the right connection for your application in your industry. Various cable types and connectors are available. Connection 1=M8x1 socket, straight, 4-pole, A-coded, connection 2=M8x1 socket, straight, 3-pin, A-coded, cable=PUR shielded black, 2.00 m, Number of conductors=4, cable temperature, fixed installation=-30...70 °C, cable temperature, flexible installation=-5...50 °C, Operating voltage Ub=60 VDC / 60 VAC, nominal current (40 °C)=4.0 A, protection class=IP67/IP67, approval/conformity=CEEACWEEE
