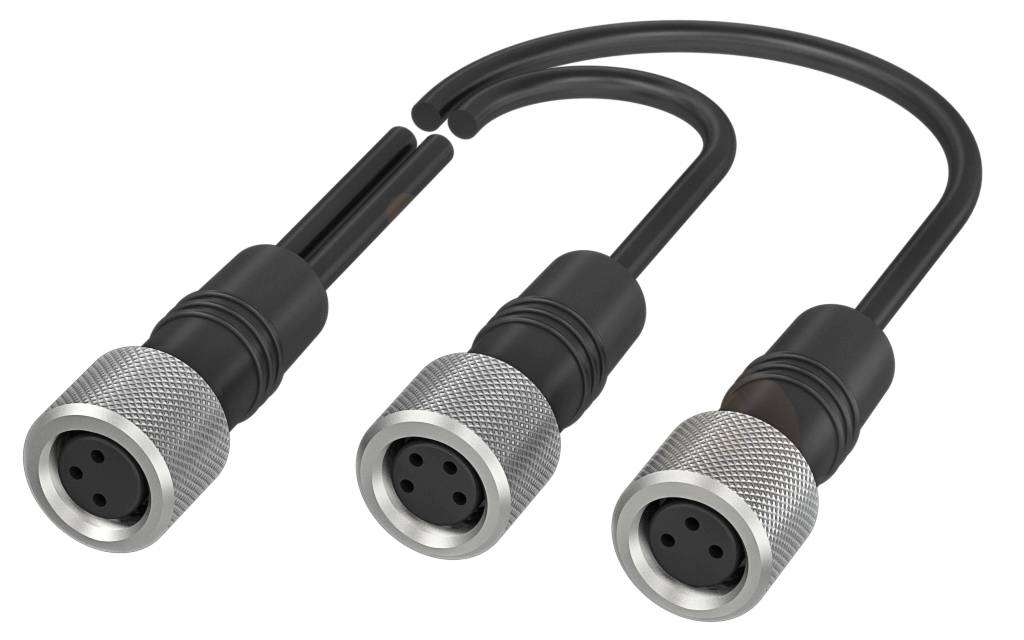

Image similar
BALLUFF BCC0FTN Y-splitter M8 Socket, straight, Socket, straight 2.00 m No. of pins (RJ): 3, 4 1 pc(s)
Product type
Y-splitter
Connector type
Socket, straight
Socket, straight
Connection side A
M8
Connection side B
M8
No. of pins
3
4
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
BCC0FTN Y-splitter
- Operating voltage Ub 30 VDC / 30 VAC
- Connection 1: M8x1 jack, straight, 3-pin, A-coded
- Connection 2: M8x1 jack, straight, 4-pin, A-coded
- Cable: PUR shielded black, 2 m
- Connection 3: M8x1 jack, straight, 3-pin, A-coded
Technical specifications
- Main features:Connection 1: M8x1 socket, straight, 3-pin, A-coded
- Connection 2: M8x1 jack, straight, 4-pin, A-coded
- Connection 3: M8x1 jack, straight, 3-pin, A-coded
- Operating voltage Ub 30 VDC / 30 VAC
- Cable: PUR shielded black, 2 m
- Cable temperature, fixed installation: -30...70 °C.
- Cable temperature, flexible laying: -5...50 °C.
- PROTECTION CLASS IP67/IP67
- Additional features:
- Operating voltage Ub 30 VDC / 30 VAC
- Cable diameter D 1.70 mm
- Number of conductors: 2/2
- Conductor cross-section: 0.04 mm²
- System: Over-molded/over-molded
- Number of pins 3/4/3
- Connection 1: M8x1 jack, straight, 3-pin, A-|coded
- Connection 2: M8x1 jack, straight, 4-pin, A-|coded
- Connection 3: M8x1 jack, straight, 3-pin, A-|coded
- Connection 01, design: Straight
- Connection 02, design: Straight
- Connection 03, design: Straight
- Type
BCC0FTN
- Product type
Y-splitter
- Connector type
Socket, straight
Socket, straight
- Connection side A
M8
- Connection side B
M8
- No. of pins
3
4
- Cable length
2.00 m
- Jacket material
PUR
- Nominal voltage
30 V DC
30 V AC
- Outside Ø
1.70 mm
- Cross-section (sensor/actuator wiring)
0.04 mm²
- Thread type connection side
M8
- Thread type (wiring and installation)
M8
- Coding
A
IP67
- Features
Shielded
- Min. temperature
-30 °C
- Max. temperature
70 °C
- Manufacturer part #
BCC0FTN
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3423118 BALLUFF BCC0FTN Y-splitter M8 Socket, straight, Socket, straight 2.00 m No. of pins (RJ): 3, 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3423118 BALLUFF BCC0FTN Y-splitter M8 Socket, straight, Socket, straight 2.00 m No. of pins (RJ): 3, 4 1 pc(s)
Description
With our Y-distributors you can collect, connect and distribute two signals in the field. Choose from different designs of the robust and industry-standard distributor. For a fast and reliable connection. Connection 1=M8x1 socket, straight, 3-pole, A-coded, connection 2=M8x1 socket, straight, 4-pole, A-coded, connection 3=M8x1-bushing, straight, 3-pole, A-coded, operating voltage Ub=30 VDC / 30 VAC, cable=PUR shielded black, 2.00 m, cable temperature, fixed installation=-30...70 °C, Cable temperature, flexible laying=-5...50 °C, protection class=IP67/IP67
