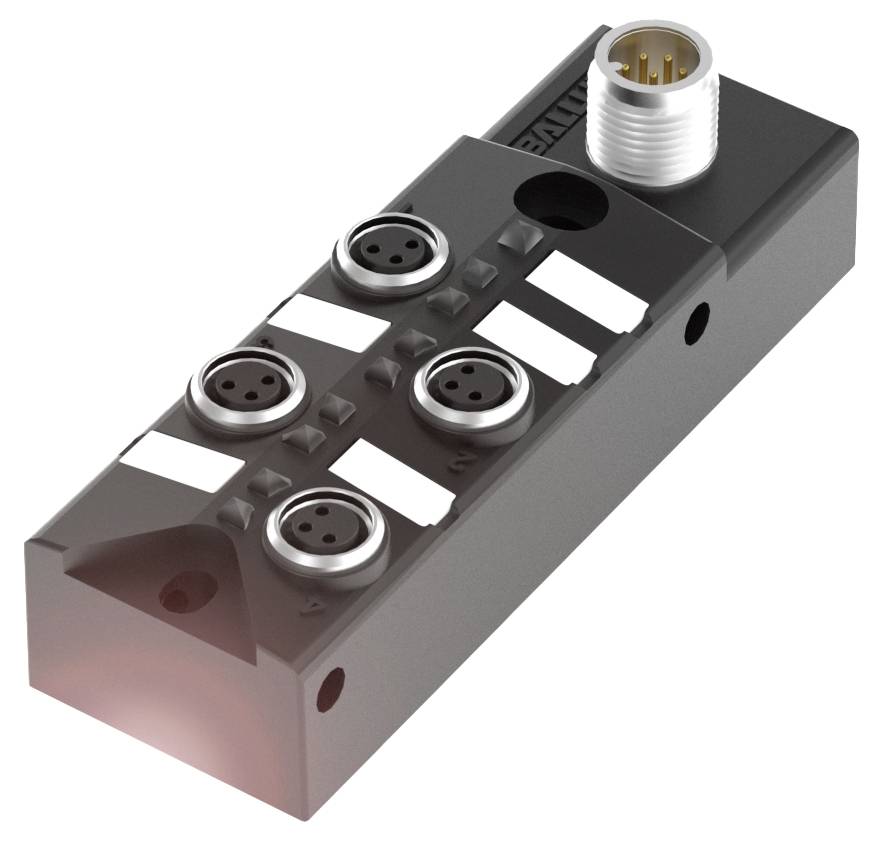

BALLUFF BPI00HA Sensor & actuator box (passive) Multi splitter 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor & actuator box (passive)
No. of signal spaces
4
No. of splitters
4-way
Type
BPI00HA
Status indicator
No LED
Datasheet (PDF)
Highlights & Details
Balluff BPI00HA Passive Distributor
- Operating voltage Ub 10...30 VDC/10...30 VAC
- Connection (COM 1): M12x1 connector, 8-pin
- Output current max. 2 A
- Connection slots: 4x M8x1 socket, 3-pin
- Display switching function: No LED
Technical specifications
- Main features:Connection (COM 1): M12x1 plug, 8-pin
- Connection slots: 4x M8x1 socket, 3-pin
- Display switching function: No LED
- Output current max. 2 A
- Operating voltage Ub 10...30 VDC/10...30 VAC
- Protection class IP67
- Total current max. 2.0 A
- Ambient temperature: -25 to 80 °C
- Additional features:
- Supply: Identification plates (11x)|Cap (3x)
- Dimensions 89 x 30 x 26.6 mm
- M4 fixings (2x)
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 10...30 VDC/10...30 VAC
- Tightening torque 1.2 Nm ±0.2 (M4)
- PBT, GF casing material
- Protection class IP67, screwed down
- Ambient temperature: -25 to 80 °C
- Contact material: Bronze (CuSn6), nickel plated
- Output current max. 2 A
- Insulation resistance ≥ 10 GOhm
- Total current max. 2.0 A
- Connection slots: 4x M8x1 socket, 3-pin
- Contact carrier material PBT
- Cable plug tightening torque: 0.4 Nm + 0.1 Nm (M8|Connector)
- Forget: Yes
- Display switching function Electrical features: No LED
- Product type
Sensor & actuator box (passive)
- No. of signal spaces
4
- Type
BPI00HA
- No. of splitters
4-way
- Status indicator
No LED
- Connection
M8 socket
- Width
89.00 mm
- Length
26.60 mm
IP67
- Max. power rating per slot
2 A
- Total current (direct supply)
2.0 A
- Max. temperature
80 °C
- Min. temperature
-25 °C
- Connector type (distribution boxes)
M8 receptacle
- Total no. of pins
3
- Manufacturer part #
BPI00HA
- Content
1 pc(s)
- Number of pins
3
- Height
30.00 mm
- Power rating (total)
2 A
- Power rating per I/O
2 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3422729 BALLUFF BPI00HA Sensor & actuator box (passive) Multi splitter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3422729 BALLUFF BPI00HA Sensor & actuator box (passive) Multi splitter 1 pc(s)
Description
Passive interfaces from Balluff connect sensors and actuators with the control system. They are particularly suitable for harsh conditions and are Ideal when using coolants and lubricants. Its fully cast housing offers a high degree of protection and excellent shock and vibration resistance. Metallic screw inserts guarantee the fit of the plug connectors. Connection slots=4x M8x1 socket, 3-pin, connection (COM 1)=M12x1 plug, 8-pin, operating voltage Ub=10...30 VDC/10...30 VAC, output current max.=2 A, total current max.=2.0 A, ambient temperature=-25...80 °C, protection class=IP67
