Technical specifications
- Number of poles: 3
- Material: Plastic
- RAL number: 1012
- Protection type (IP) IP44
- IEC current 16 A.
- Voltage according to EN 60309-2: 110 V (50+60 Hz) yellow
- Time setting 4 h
- Colour code: Yellow
- Connection technology: Screw less terminal
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Mating direction: Angled
- Flange size vertical 85 mm
- Hole spacing vertical 70 mm
- Hole spacing horizontal 70 mm
- Flange size horizontal 85 mm
- Product type

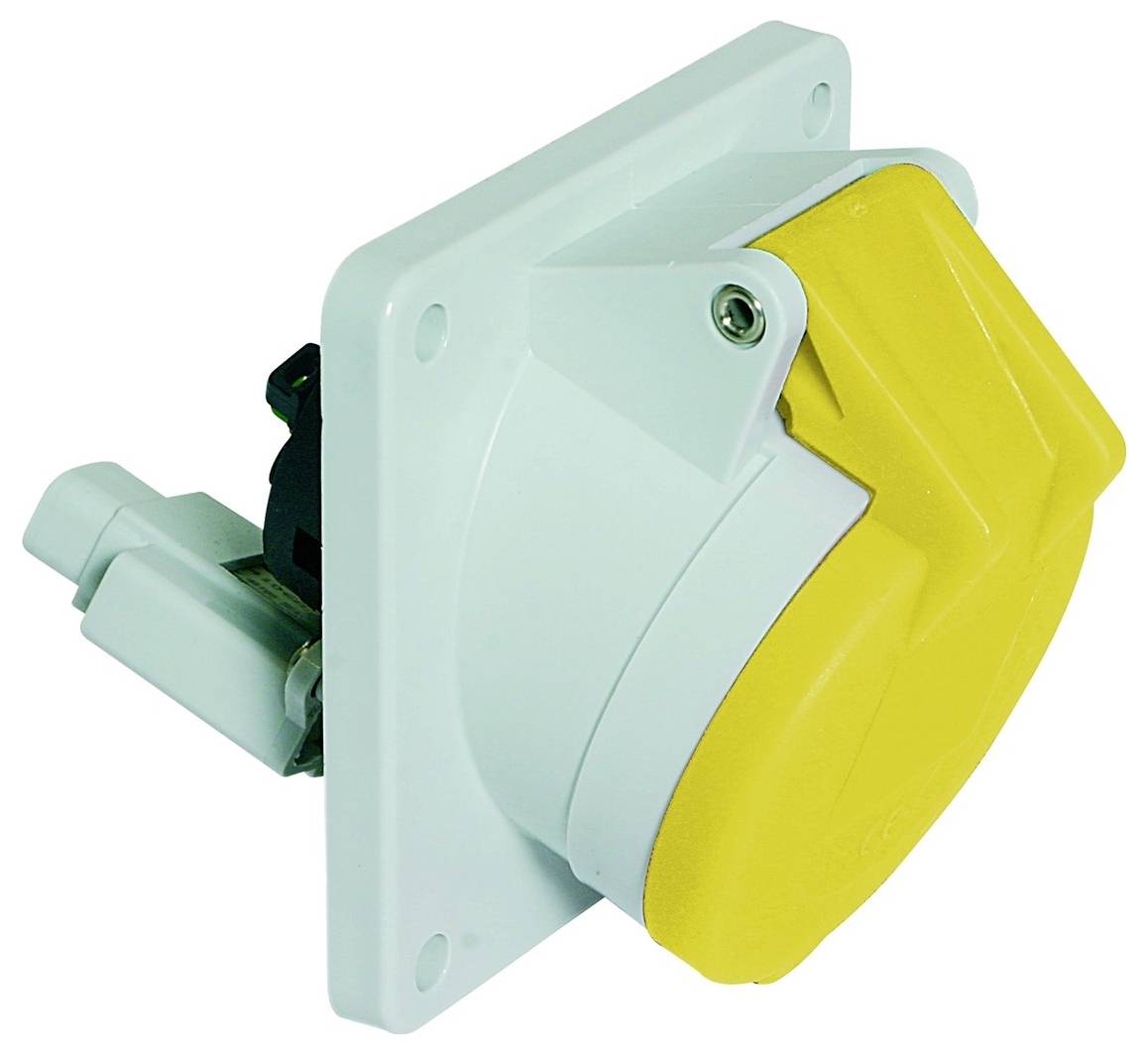

CEE add-on socket
- Features
Screwless terminals
- Cores
3
- Factory colour
RAL 1012 (Lemon Yellow)
- Dim
(L x W x H) 112 x 85 x 85 mm
- Length
112 mm
- Width
85 mm
- Height
85 mm
- Content
1 pc(s)
- Number of pins
3
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3546545 Bals Elektrotechnik 120583 120583 CEE add-on socket 1 pc(s)
Description
Mounting socket Quick-Connect TE tilted
16A 3P (2P+PE) 110V (100 - 130V~) 4H IP44
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Hinged lid yellow RAL 1012, housing gray RAL 7035
Device height: 85 mm, device width: 85 mm, device depth: 112 mm
Flange size vertical 85 mm, flange dimension horizontal 85 mm
Vertical hole spacing 70 mm, horizontal hole spacing 70 mm
Other technical features: The inclination is 20°, the socket is equipped with an auxiliary contact switch (normally open contact), the socket is equipped with an auxiliary contact switch (normally closed contact)
