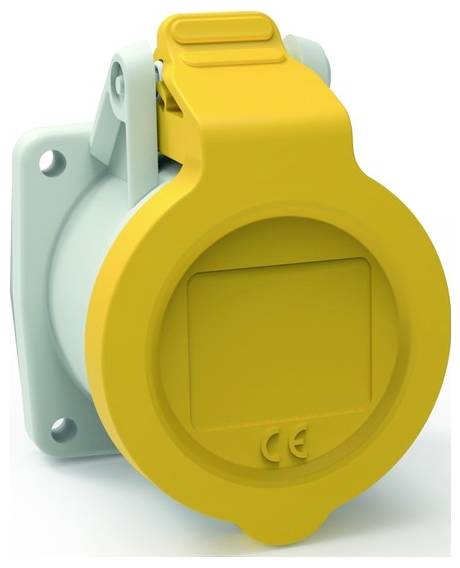

Image similar
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 3
- Material: Plastic
- RAL number: 1012
- Protection class (IP) IP54
- IEC current 16 A.
- Voltage according to EN 60309-2: 110 V (50+60 Hz) yellow
- Time setting 4 h
- Colour code: Yellow
- Connection technology: Screw less terminal
- Military version: No.
- With straight plug
- Flange size vertical 56 mm
- Hole spacing vertical 44 mm
- Hole spacing horizontal 44 mm
- Flange size horizontal 56 mm
- Product type
CEE add-on socket
- Features
Screwless terminals
- Cores
3
- Dim
(L x W x H) 89 x 56 x 72 mm
- Length
89 mm
- Width
56 mm
- Height
72 mm
- Content
1 pc(s)
- Number of pins
3
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3545238 Bals Elektrotechnik 136561 136561 CEE add-on socket 1 pc(s)
Description
Surface-mounted socket INNOLINQ with QUICK-CONNECT straight
16A 3P (2P+PE) 110V (100 - 130V~) 4H IP54
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
Contact holder/contacts: The contacts are bare brass, the contact carrier is made of polyamide
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with KONTEX-ULTRA contact
Cable entry: Other
Colour: Hinged lid yellow RAL 1012, housing gray RAL 7035
Device height: 72 mm, device width: 56 mm, device depth: 89 mm
Flange size vertical 56 mm, flange dimension horizontal 56 mm
Vertical hole spacing 44 mm, horizontal hole spacing 44 mm
This text is machine translated.
16A 3P (2P+PE) 110V (100 - 130V~) 4H IP54
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
Contact holder/contacts: The contacts are bare brass, the contact carrier is made of polyamide
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with KONTEX-ULTRA contact
Cable entry: Other
Colour: Hinged lid yellow RAL 1012, housing gray RAL 7035
Device height: 72 mm, device width: 56 mm, device depth: 89 mm
Flange size vertical 56 mm, flange dimension horizontal 56 mm
Vertical hole spacing 44 mm, horizontal hole spacing 44 mm
This text is machine translated.
