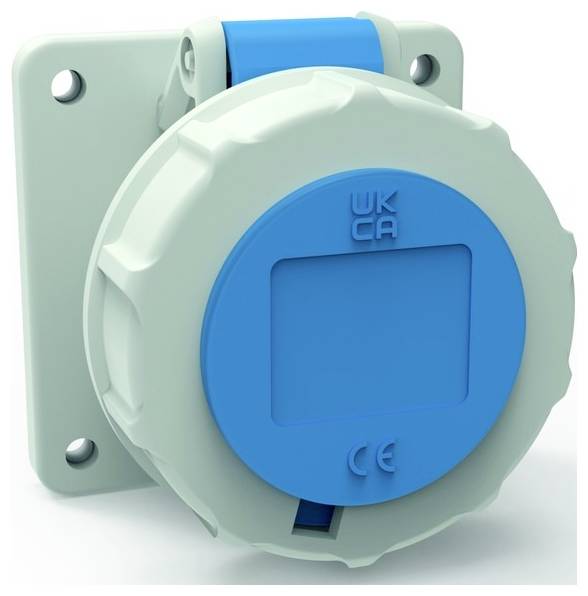

Image similar
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 3
- Material: Plastic
- RAL number: 5015
- Protection class (IP) IP67
- IEC current 16 A.
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Time setting 6 h
- Colour code: Blue
- Connection technology: Screw less terminal
- Military version: No.
- With straight plug
- Flange size vertical 75 mm
- Hole spacing vertical 60 mm
- Hole spacing horizontal 60 mm
- Product type
CEE add-on socket
- Features
Screwless terminals
- Cores
3
- Halogen-free
Yes
- Dim
(L x W x H) 90 x 75 x 81 mm
- Length
90 mm
- Width
75 mm
- Height
81 mm
- Content
1 pc(s)
3680 W
- Number of pins
3
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3545764 Bals Elektrotechnik 137341 137341 CEE add-on socket 1 pc(s)
Description
Surface-mounted socket INNOLINQ with QUICK-CONNECT straight
16A 3P (2P+PE) 230V (200 - 250V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with KONTEX-ULTRA contact
Cable entry: Other
Colour: Hinged lid blue RAL 5015, gray enclosure RAL 7035, bayonet ring gray RAL 7035
Device height: 81 mm, device width: 75 mm, device depth: 90 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
Halogen-free: True
Other technical characteristics: This product is without lead
This text is machine translated.
16A 3P (2P+PE) 230V (200 - 250V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with KONTEX-ULTRA contact
Cable entry: Other
Colour: Hinged lid blue RAL 5015, gray enclosure RAL 7035, bayonet ring gray RAL 7035
Device height: 81 mm, device width: 75 mm, device depth: 90 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
Halogen-free: True
Other technical characteristics: This product is without lead
This text is machine translated.
