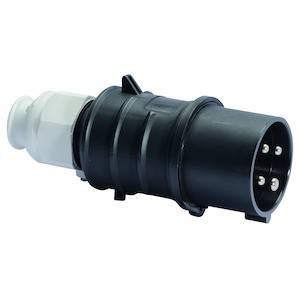

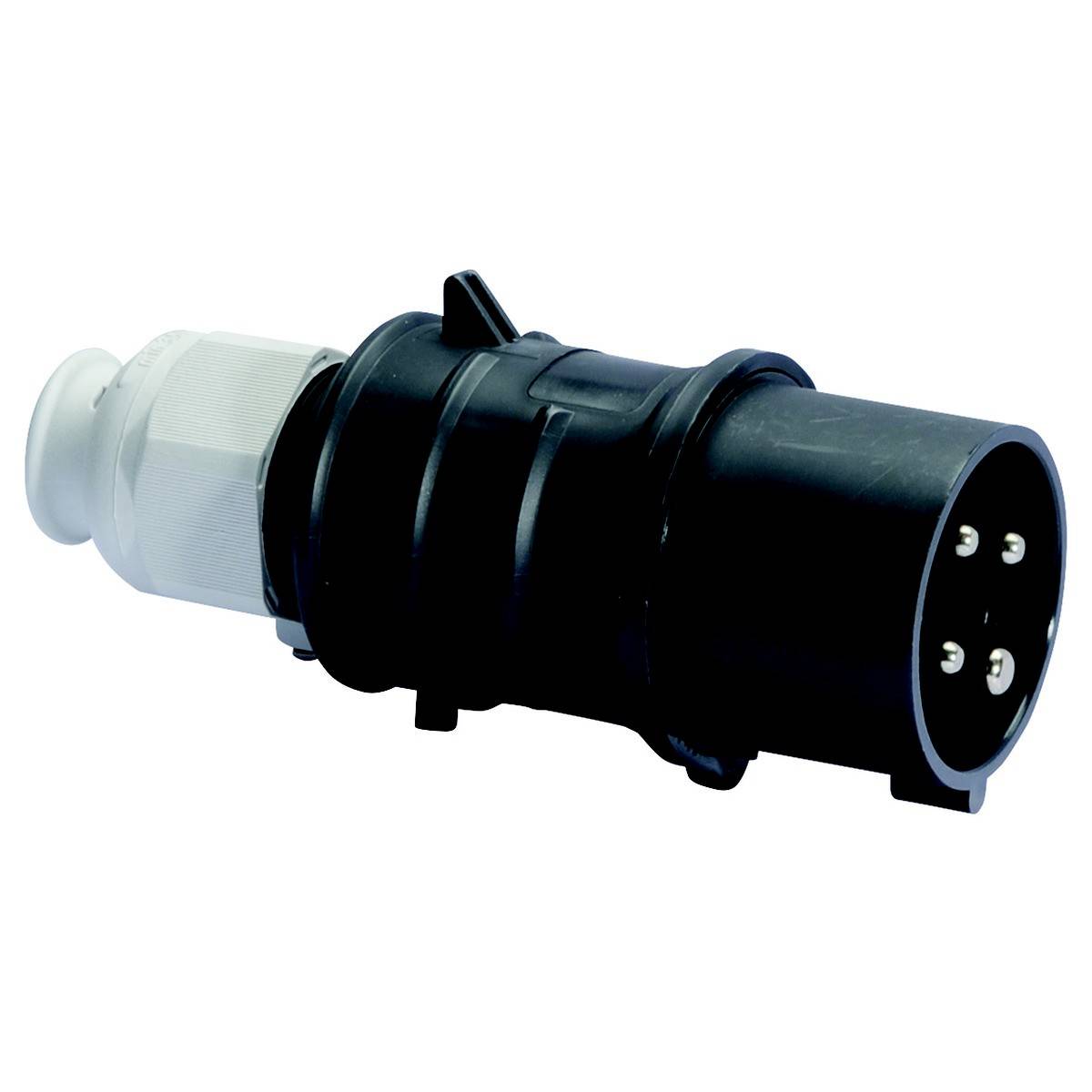

Bals Elektrotechnik 21692 21692 CEE plug 32.0 A 4-pin 500 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Number of pins: 4
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Time setting 7 h
- Colour code: Black
- RAL number: 9005
- Phase inverter: No.
- Protection type (IP) IP44
- Connection technology: Screw less terminal
- Cable entry: Screw connection
- With straight plug
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE plug
- Nominal voltage
500 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Type A
Screwless terminal
- Type
straight
IP44
- Factory colour
Black
- Content
1 pc(s)
- Number of pins
4
- Connection
Clamp
- Material (details)
Plastic
- Operating voltage
500 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146208 Bals Elektrotechnik 21692 21692 CEE plug 32.0 A 4-pin 500 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146208 Bals Elektrotechnik 21692 21692 CEE plug 32.0 A 4-pin 500 V 1 pc(s)
Description
QUICK-CONNECT TE PLUG
32A 4P (3P+PE) 500V (480 - 500V~) 7H IP44
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with cage clamp terminals
Cable entry: With cable gland
Colour: Collar black RAL 9005, cable gland gray RAL 7035, housing cover black RAL 9005

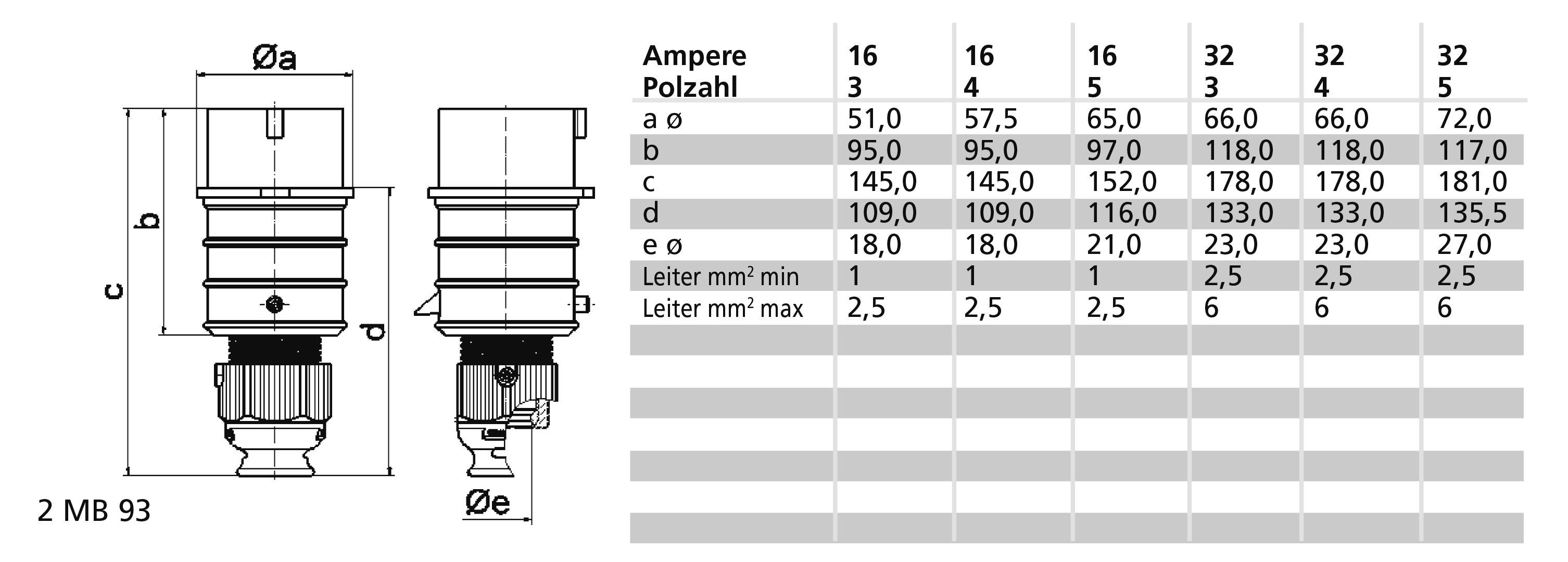

Device height: 180 mm, device width: 66 mm, device depth: 79 mm
Other technical features: For cables with a min. Diameter from 11 mm to max. Diameter 23mm, With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
This text is machine translated.
32A 4P (3P+PE) 500V (480 - 500V~) 7H IP44
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with cage clamp terminals
Cable entry: With cable gland
Colour: Collar black RAL 9005, cable gland gray RAL 7035, housing cover black RAL 9005
Device height: 180 mm, device width: 66 mm, device depth: 79 mm
Other technical features: For cables with a min. Diameter from 11 mm to max. Diameter 23mm, With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
