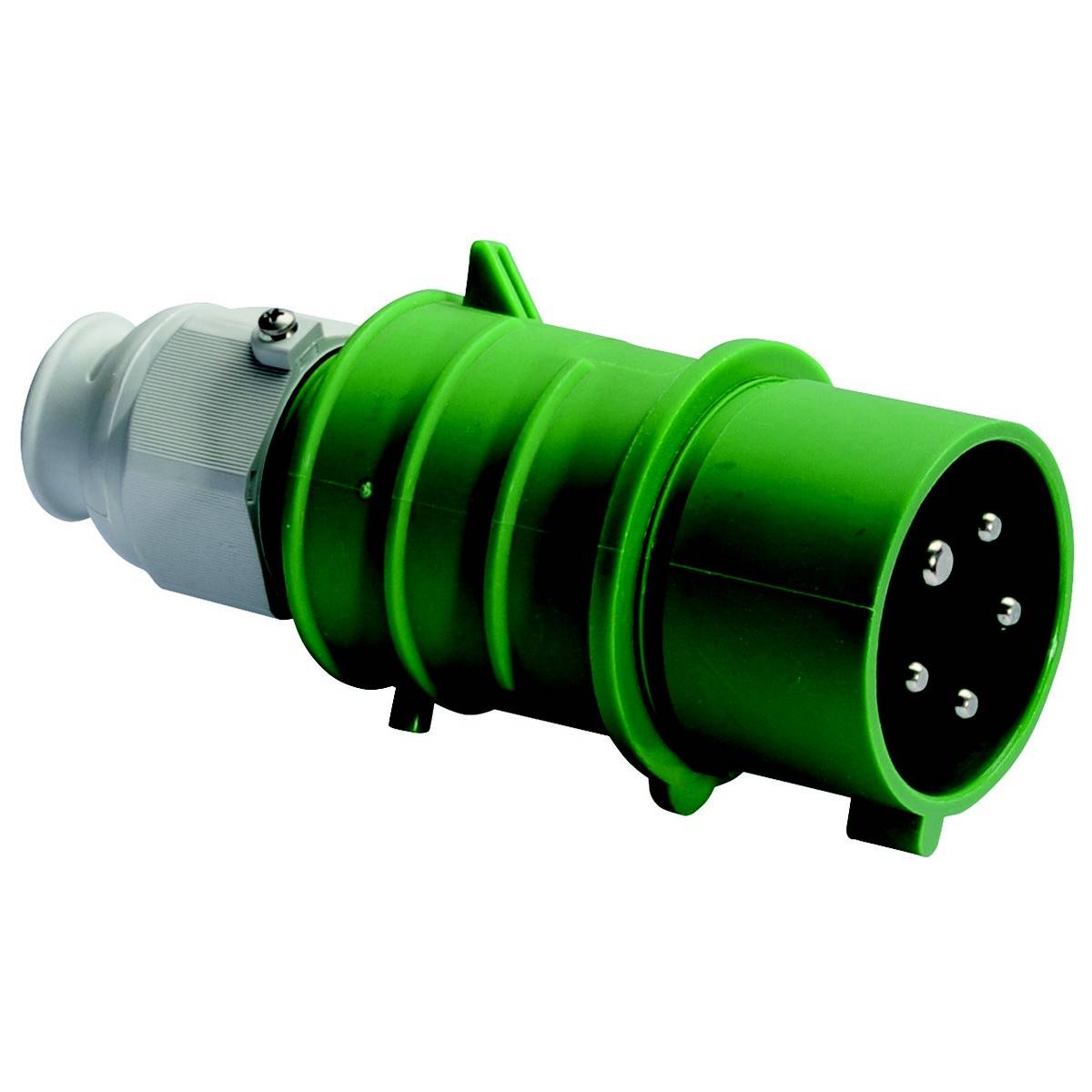

Bals Elektrotechnik 21885 21885 CEE plug 32.0 A 5-pin 500 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 50-500 V (>300-500 Hz) green
- Time setting 2 h
- Colour code: Green
- RAL number: 6002
- Phase inverter: No.
- Protection type (IP) IP44
- Connection technology: Screw less terminal
- Cable entry: Screw connection
- With straight plug
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE plug
- Nominal voltage
500 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Type A
Screwless terminal
- Type
straight
IP44
- Factory colour
Green
- Content
1 pc(s)
- Number of pins
5
- Connection
Clamp
- Material (details)
Plastic
- Operating voltage
500 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146269 Bals Elektrotechnik 21885 21885 CEE plug 32.0 A 5-pin 500 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146269 Bals Elektrotechnik 21885 21885 CEE plug 32.0 A 5-pin 500 V 1 pc(s)
Description
QUICK-CONNECT TE PLUG
32A 5p (3P+N+PE) >50V green >300-500Hz (> 50V~) 2h IP44
Frequency: Over 300 Hz up to and including 500Hz
Technical color: Green RAL 6002
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with cage clamp terminals
Cable entry: With cable gland
Colour: Cable gland gray RAL 7035, housing cover green RAL 6002, collar green RAL 6002

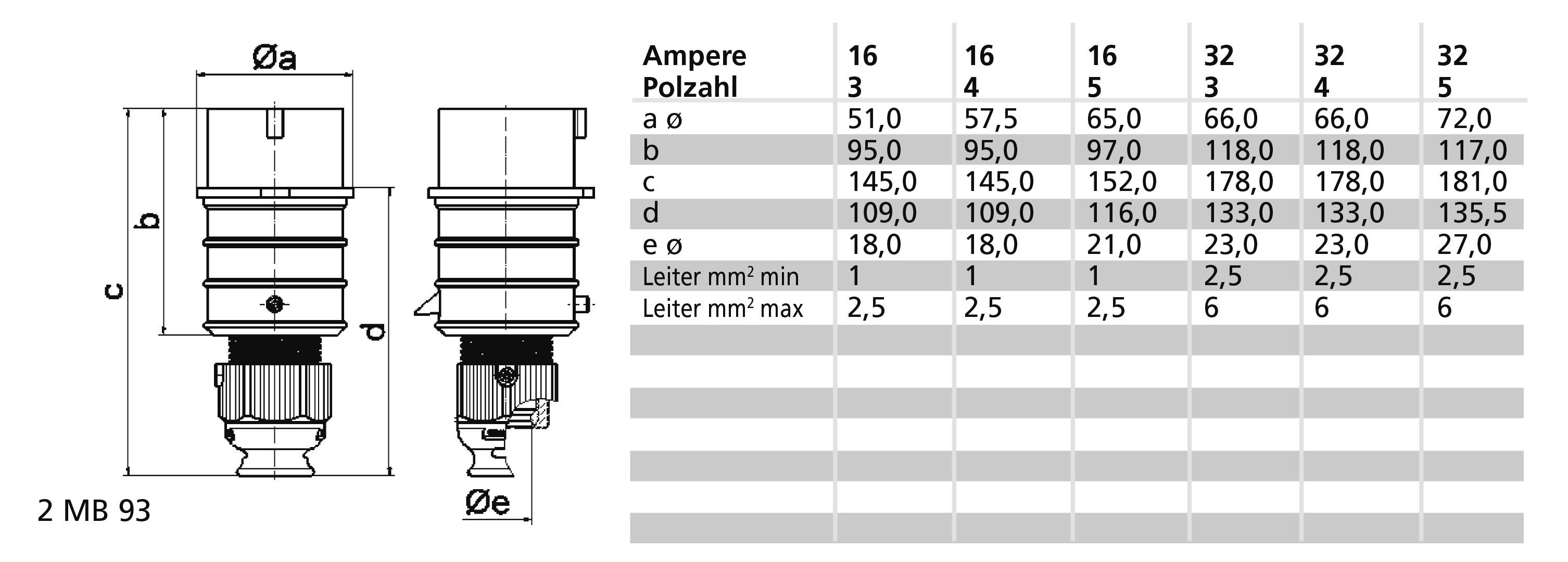

Device height: 181 mm, device width: 72 mm, device depth: 87 mm
Other technical features: For cables with a min. Diameter from 13 mm to max. Diameter 27mm, With MULTI-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
This text is machine translated.
