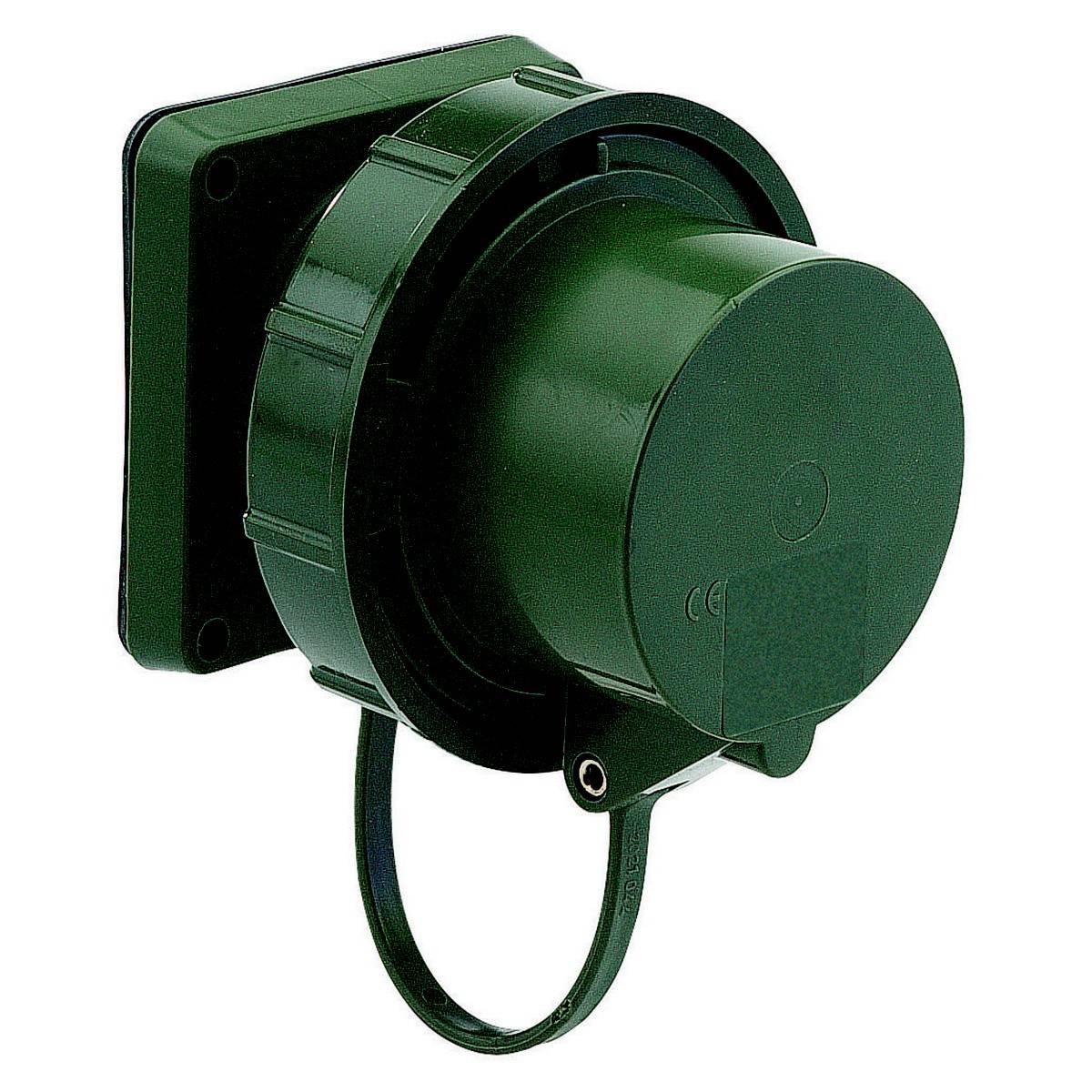

Bals Elektrotechnik 2892 2892 CEE add-on plug 16.0 A 3-pin 230 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Number of poles: 3
- Time setting 6 h
- Colour code: Green
- RAL number: 6031
- Protection class (IP) IP67
- Connection technology: Screw terminal
- Design: Connectors on the equipment
- Phase inverter: No.
- With straight plug
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: Yes
- Product type
CEE add-on plug
- Nominal voltage
230 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screw terminals
- Type
straight
IP67
- Factory colour
Green
- Content
1 pc(s)
- Number of pins
3
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147234 Bals Elektrotechnik 2892 2892 CEE add-on plug 16.0 A 3-pin 230 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3147234 Bals Elektrotechnik 2892 2892 CEE add-on plug 16.0 A 3-pin 230 V 1 pc(s)
Description
Add-on device plug, straight TN design
16A 3P (2P+PE) 230V (200 - 250V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: Other
Colour: Bronze green bayonet ring RAL 6031-F9, bronze green collar RAL 6031-F9, bronze green cover RAL 6031-F09, bronze green housing RAL 6031-F9

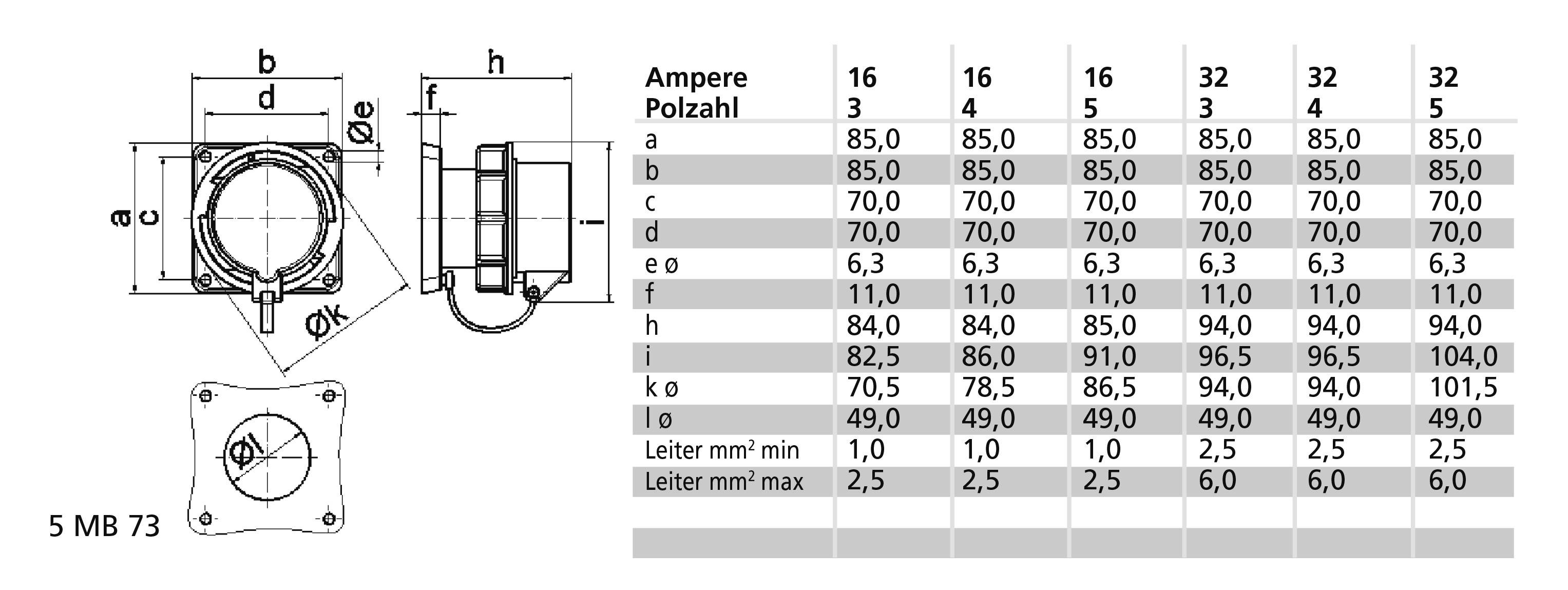

Device height: 85 mm, device width: 85 mm, device depth: 83 mm
Flange size vertical 85 mm, flange dimension horizontal 85 mm
Vertical hole spacing 70 mm, horizontal hole spacing 70 mm
Other technical features: With sealing hood
VG type no.: VG 96919 AP 037
This text is machine translated.
16A 3P (2P+PE) 230V (200 - 250V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: Other
Colour: Bronze green bayonet ring RAL 6031-F9, bronze green collar RAL 6031-F9, bronze green cover RAL 6031-F09, bronze green housing RAL 6031-F9
Device height: 85 mm, device width: 85 mm, device depth: 83 mm
Flange size vertical 85 mm, flange dimension horizontal 85 mm
Vertical hole spacing 70 mm, horizontal hole spacing 70 mm
Other technical features: With sealing hood
VG type no.: VG 96919 AP 037
