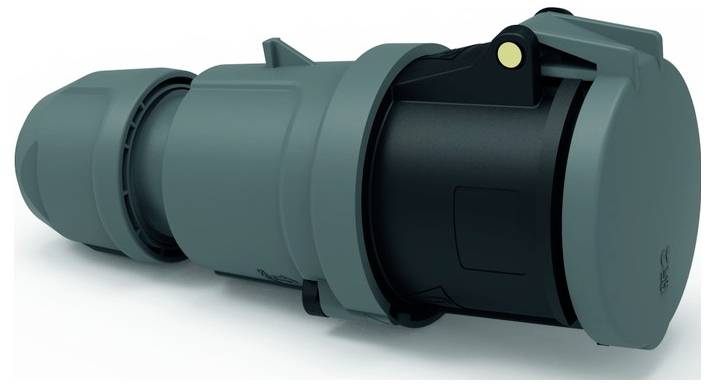

Image similar
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Material: Plastic
- RAL number: 9005
- Protection type (IP) IP44
- IEC current 63 A.
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Time setting 7 h
- Colour code: Black
- Connection technology: Screw less terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- With straight plug
- Product type
CEE connector
- Features
Screwless terminals
- Cores
4
- Dim
(L x W x H) 109 x 97 x 252 mm
- Length
109 mm
- Width
97 mm
- Height
252 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3546790 Bals Elektrotechnik 310492 310492 CEE connector 1 pc(s)
Description
QUICK-CONNECT TE COUPLING
63A 4P (3P+PE) 500V (480 - 500V~) 7H IP44
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 16.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with frame terminals and Kontex contact
Cable entry: With cable gland
Colour: Black collar RAL 9005, black actuator slide RAL 9005, dark gray hinged cover RAL 7012, dark gray housing cover RAL 7012, dark gray cable gland RAL 7012
Device height: 252 mm, device width: 97 mm, device depth: 109 mm
Other technical features: The connection of housing parts is screwless and is locked by a locking catch. It is possible to open it by means of a screwdriver. With multi-grip cable gland and integrated strain relief, for cables with min. Diameter from 16mm to max. Diameter 36mm
This text is machine translated.
63A 4P (3P+PE) 500V (480 - 500V~) 7H IP44
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 16.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring clamp technology with frame terminals and Kontex contact
Cable entry: With cable gland
Colour: Black collar RAL 9005, black actuator slide RAL 9005, dark gray hinged cover RAL 7012, dark gray housing cover RAL 7012, dark gray cable gland RAL 7012
Device height: 252 mm, device width: 97 mm, device depth: 109 mm
Other technical features: The connection of housing parts is screwless and is locked by a locking catch. It is possible to open it by means of a screwdriver. With multi-grip cable gland and integrated strain relief, for cables with min. Diameter from 16mm to max. Diameter 36mm
