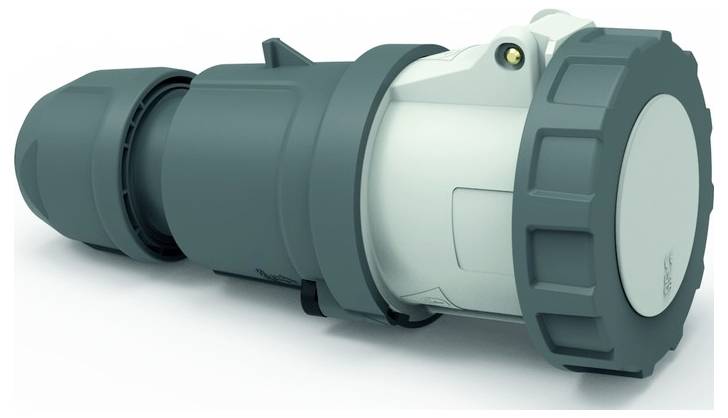

Image similar
EAN:
Part number:
Item no:
Technical specifications
- Product type
CEE connector
- Cores
5
- Dim
(L x W x H) 115 x 110 x 251 mm
- Length
115 mm
- Width
110 mm
- Height
251 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3545763 Bals Elektrotechnik 310509 310509 CEE connector 1 pc(s)
Description
TE coupling
63A 5p (3P+N+PE) >50V gray (> 50V - All rated voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1H IP67
Technical color: Grey RAL 7035
Contact holder/contacts: The contacts are nickel-plated brass, the contact carrier is made of polyamide
Maximum cross-section of 16.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: With cable gland
Colour: Collar gray RAL 7035, hinged lid gray RAL 7035, operating slider black RAL 9005, housing cover dark gray RAL 7012, cable gland dark gray RAL 7012, bayonet ring dark gray RAL 7012
Device height: 251 mm, device width: 110 mm, device depth: 115 mm
Other technical features: The connection of housing parts is screwless and is locked by a locking catch. Opening is only possible by means of a screwdriver. For cables with a min. Diameter from 16mm to max. Diameter 36mm, with MULTI-Grip cable screwing and integrated strain relief
This text is machine translated.
63A 5p (3P+N+PE) >50V gray (> 50V - All rated voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1H IP67
Technical color: Grey RAL 7035
Contact holder/contacts: The contacts are nickel-plated brass, the contact carrier is made of polyamide
Maximum cross-section of 16.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: With cable gland
Colour: Collar gray RAL 7035, hinged lid gray RAL 7035, operating slider black RAL 9005, housing cover dark gray RAL 7012, cable gland dark gray RAL 7012, bayonet ring dark gray RAL 7012
Device height: 251 mm, device width: 110 mm, device depth: 115 mm
Other technical features: The connection of housing parts is screwless and is locked by a locking catch. Opening is only possible by means of a screwdriver. For cables with a min. Diameter from 16mm to max. Diameter 36mm, with MULTI-Grip cable screwing and integrated strain relief
This text is machine translated.
