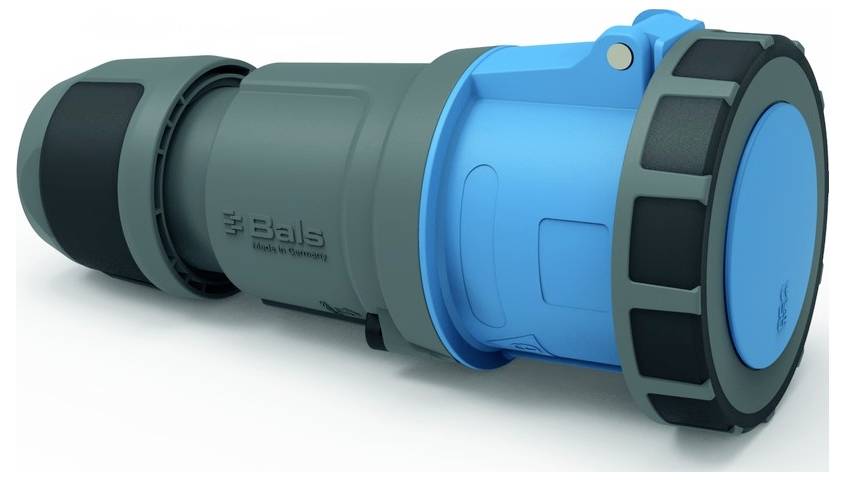

Image similar
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 3
- Material: Plastic
- RAL number: 5015
- Protection class (IP) IP67
- IEC current 125 A.
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Time setting 6 h
- Colour code: Blue
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Military version: No.
- With straight plug
- Product type
CEE connector
- Features
Screwless terminals
- Type A
CEE connector
- Cores
3
- Dim
(W x H) 140.6 mm x 289.5 mm
- Width
140.6 mm
- Height
289.5 mm
- Content
1 pc(s)
- Number of pins
3
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3545757 Bals Elektrotechnik 3191-1 3191-1 CEE connector 1 pc(s)
Description
TE coupling
125A 3P (2P+PE) 230V (200 - 250V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 50.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: With cable gland
Colour: Hinged lid blue RAL 5015, bayonet ring dark gray/black (RAL 7012/9005), cable gland dark gray/black (RAL 7012/9005), blue collar RAL 5015, black actuation slider RAL 9005, dark gray enclosure cover RAL 7012
Device height: 289.5 mm, device width: 140.6 mm, device depth: 146.5 mm
Other technical features: For cables with a min. Diameter from 26mm to max. Diameter 50mm, the connection of the housing components is screwless and is locked by a catch. Opening is possible only by means of screwdriver, With MULTI-Grip cable screw joint and integrated strain relief, With rubberized screw connection (SUSTAINABLE Grip), With rubberized bayonet ring (SUSTAINABLE Grip)
This text is machine translated.
