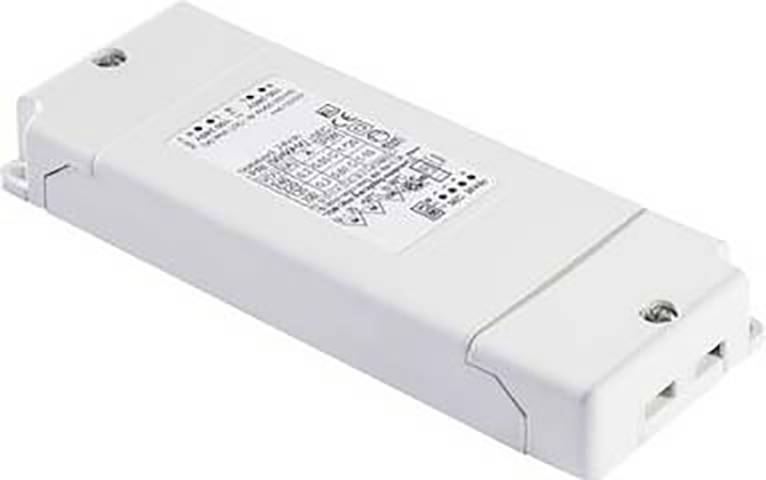

Barthelme 66000232 LED driver Constant voltage 20 W 0.84 A 24 V Surge protection, Overvoltage 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
66000232
- Constant voltage
- 24 V
- 0.84 A
Technical specifications
- Execution = staticHousing=plastic housing
- Product type
LED driver
- Type
Constant voltage
- Operating current
0.84 A
- Dim
(L x W x H) 145 x 55 x 19 mm
- Factory colour
White
- Output voltage (max.)
24 V
- Output voltage (min.)
24 V
- Max. output current
0.84 A
- Output current (max.) - rounded
840 mA
- Operating voltage
24 V
- Protection class
I
- LED driver features
Surge protection
Overvoltage
IP20
- Max. power
20 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
264 V
- Min. input voltage
90 V
- Weight
0
- Power range
20 W (max)
- Width
55 mm
- Height
19 mm
- Length
145 mm
- Max. temperature
80 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2749414 Barthelme 66000232 LED driver Constant voltage 20 W 0.84 A 24 V Surge protection, Overvoltage 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2749414 Barthelme 66000232 LED driver Constant voltage 20 W 0.84 A 24 V Surge protection, Overvoltage 1 pc(s)
Description
Max. Current: 0.84A, power supply with protection against overheating, short circuit, voltage peaks and overload
This text is machine translated.
This text is machine translated.
Features
- Max. current 0.84APower supply with protection against overheatingShort circuitVoltage peaks andOverload
Scope of delivery
- Barthelme power supply 24V 20W 0.83A 66000232
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
