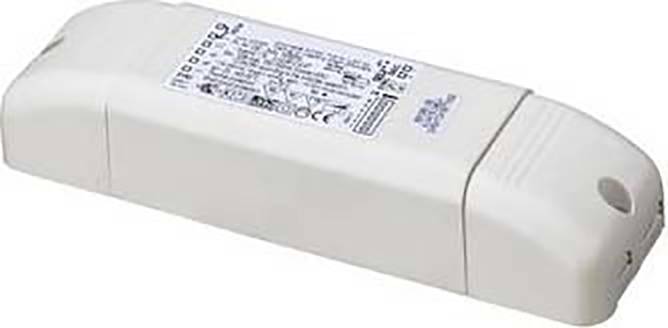

Barthelme LED converter dim 12/24V DC 32W
- Constant voltage, Constant current
- 12 - 24 V
- 350 - 900 mA
Technical specifications
- Execution=dynamicDimming of phase section=yesDimming phase control = yesDimming with Push-button=yesHousing=plastic housing
- Product type
LED driver
- Type
Constant voltage
Constant current
- Dim
(L x W x H) 166 x 47 x 35 mm
- Factory colour
White
- Output voltage (max.)
24 V
- Output voltage (min.)
12 V
- Max. output current
900 mA
- Output current (max.) - rounded
900 mA
- Operating voltage
230 V
- Protection class
III
- LED driver features
dimmable
Overvoltage
adjustable
Surge protection
IP20
- Max. power
20 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
350 mA
- Inputs
1
- Power (min.)
10 W
- Power range
10 up to 20 W
- Width
47 mm
- Height
35 mm
- Length
166 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2749422 Barthelme 66004260 LED driver Constant voltage, Constant current 20 W 350 - 900 mA 12 - 24 V dimmable, Overvoltage, adju
User & Safety Instructions
User & Safety Instructions 2749422 Barthelme 66004260 LED driver Constant voltage, Constant current 20 W 350 - 900 mA 12 - 24 V dimmable, Overvoltage, adju
Description
Output (adjustable via dip switch): 350mA/500mA/550mA/700mA/750mA cont. (Max. 47V), 12V/24V/28V cont. (Max. 900mA), dimming range 0-100% can be set via button or phase control/section dimmer (IGBT/TRIAC), up to 10 converters can be switched one after another synchronously (1 Master / 9 slaves, sync cable required) Protection against overheating, overload, voltage seats and short circuit
This text is machine translated.
This text is machine translated.
Features
- Output (adjustable via dip switch): 350mA/500mA/550mA/700mA/750mA cont. (Max. 47 V)12V/24V/28V CONT. (max. 900mA)Dimmer range 0-100% can be set via switches or phase segment dimmer (IGBT/TRIAC)Up to 10 converters can be switched in series synchronously (1 Master / 9 slavesSync cable required) Protection against overheatingOverloadVoltage seat and short circuit
Scope of delivery
- Barthelme LED converter dim 12/24V DC 32W 66004260
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
