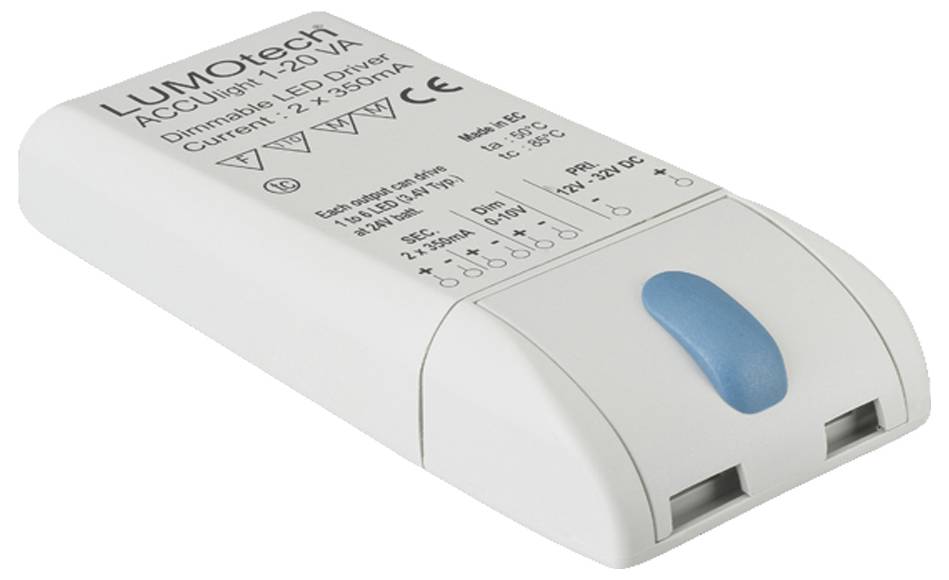

Image similar
Barthelme LEDTREIB66 Power supply unit 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Height: 23.5 mm
- Width 52 mm
- Execution: Dynamic
- Protection class (IP) IP20
- Suitable for outside use: No.
- Protection class III
- Length: 110 mm
- Output power 0..21 W
- Constant luminous flux regulation: No.
- Dimmer 0-10 V: No
- Dimming 1-10 V: Yes
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with Push-button: Yes
- Without dimmer function: No.
- Output current 350 .1050 mA
- Output voltage 0 - .20 V
- Housing: Plastic housing
- Suitable for constant current: Yes
- Suitable for constant voltage: Yes
- Suitable for DC voltage (primary side): No.
- Product type
Power supply unit
- Protection class
III
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549218 Barthelme LEDTREIB66 Power supply unit 1 pc(s)
Description
Output (adjustable via dip switch): 350mA/700mA/1050mA cont. (Max. 20V), 10V no. (10W), 12V contact (Max. 12W), 24V contact (20W), adjustable via button/1-10V/potentiometer 100kOhm
