Basi 7522-0200 Handle door furniture
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
4% = € 0.67
€ 14.45
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
Only 9 Piece(s) available
Highlights & Details
FS-Drecker-fitting - ZT/FS 2150
- Door fitting/fire protection fitting in classic black
- For fire doors, cellar doors, room doors and fire doors
- Square short plate and steel core in the push-button, melting point at over 1000° C.
- Push-button fittings / jack in U-shape, tested according to DIN 18273

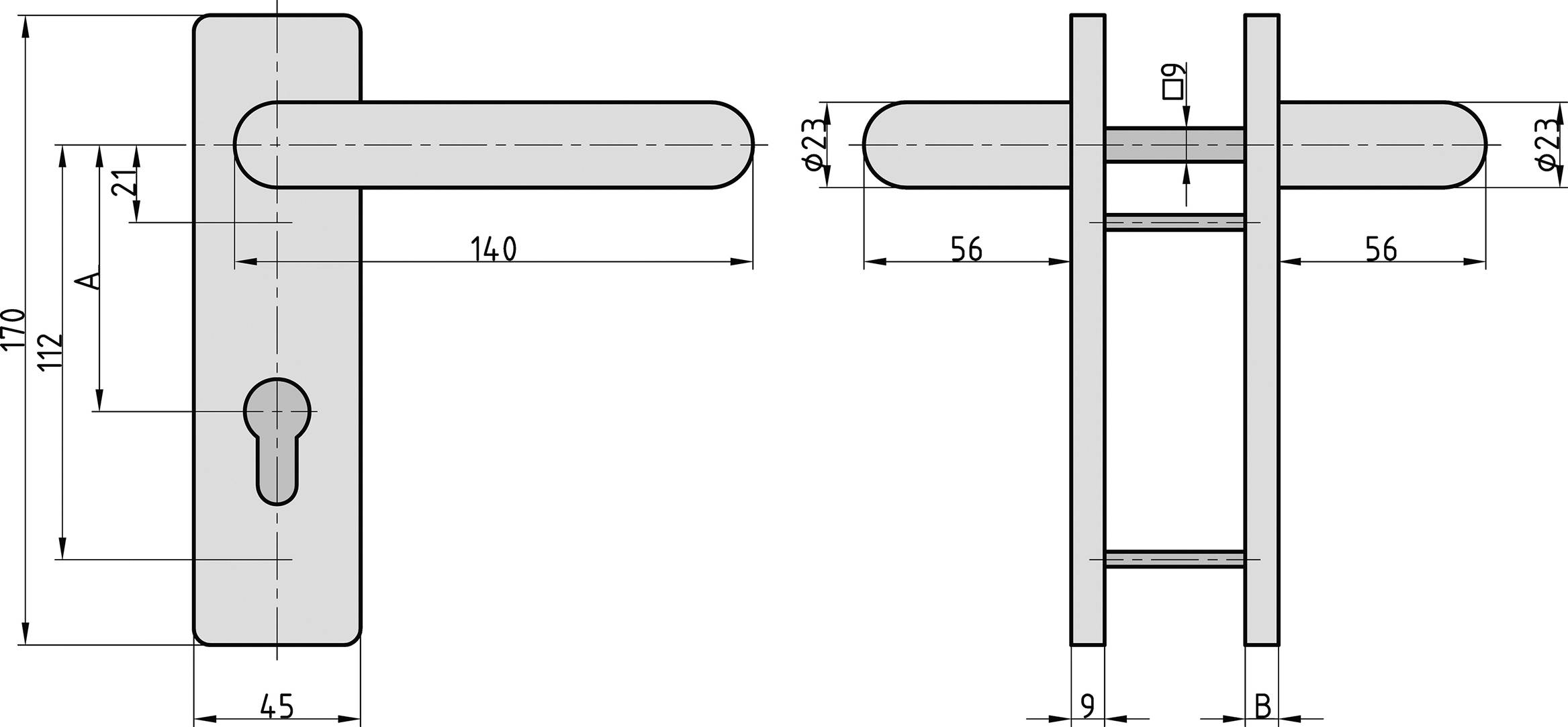

- Door thicknesses 44-66 mm, distance 72 mm, square pin 9 mm
Technical specifications
- Product type
Handle door furniture
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2331986 Basi 7522-0200 Handle door furniture
Description

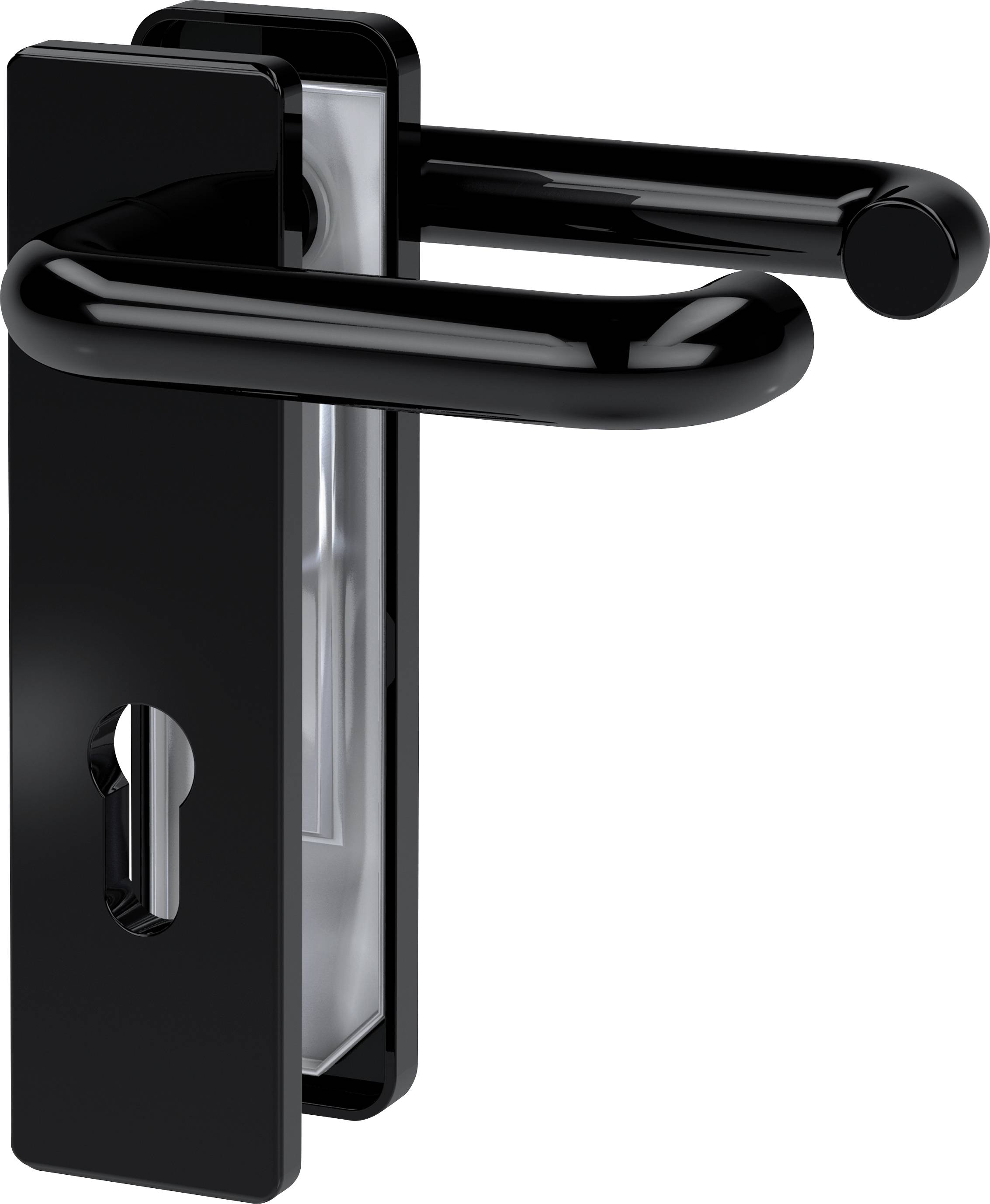

The classic BASI fire protection, timeless and classic, is suitable for all common fire doors, cellar doors, fire doors or also room doors with a door thickness of 44 to 66 mm. This is a classic push-button set that can be opened from both sides. The fitting has a prefabricated hole for a door cylinder - where a profile cylinder or blind cylinder can be used without any problems. Due to its steel substructure, the melting point of the individual parts is above 1000°C, which makes the fitting particularly resistant. The BASI fire protection cover can cope with daily loads without any problems. Everything is included in the delivery for a simple and precise mounting for the DIY enthusiast. The installation is child's play thanks to the accompanying instructions and mounting set. The fitting can be used DIN left/right. The distance is 72 mm, inner square: 9 mm, steel core in the push-button, invisible screw connection.
This text is machine translated.
This text is machine translated.
Scope of delivery
- FS-Drecker-fitting - ZT/FS 2150
