Name: Bender W15BS-02 B98080067 LV current transformer Primary current 48 A Line feed-through diameter:15 mm 1 pc(s)
Brand: Bender
SKU: 2372870
Availability: InStock

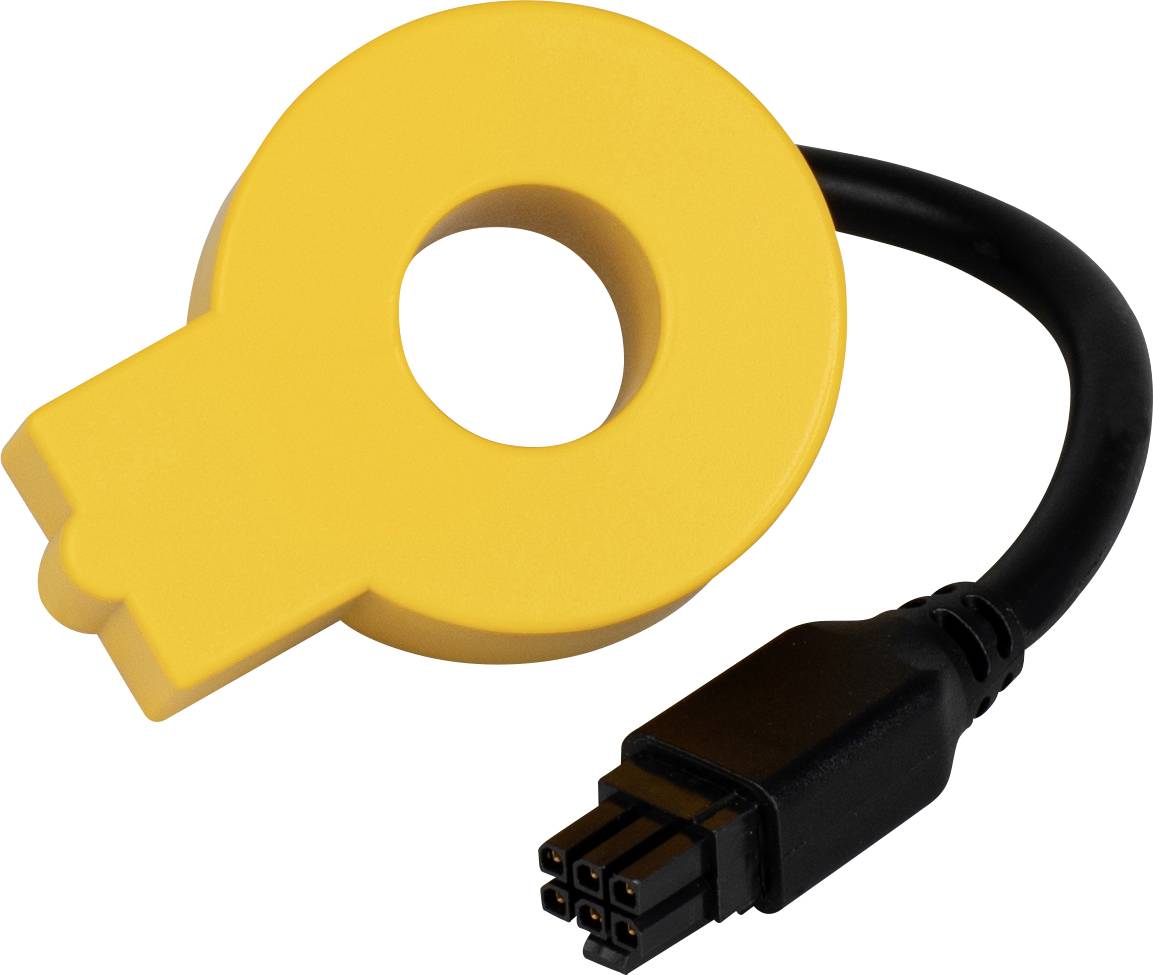

A yellow, ring-shaped sensor with a short black cable. The sensor has a central opening and a rectangular head section.

Image similar

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 81.99 / piece)

€ 81.99

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Measuring current transformer W15BS-02

Input current (current) 48 A
Line feed-through diameter 15 mm

Technical specifications

Definitions:
Insulated primary conductor for rated voltage: (IC1)
Converter cable feed-through on primary side: (IC2)
Measuring circuit; converter on secondary side: (IC3)
Connection cable measuring circuit: (IC4)
Operating height (≤ 5000 m) ≤ 2000 m.
Rated voltage (300 V) 600 V.
Over voltage category III
Test surge voltage:
IC1/IC2: (4 kV) 6 kV
IC1/IC3: (6 kV) 8 kV
IC2/IC3: (4 kV) 6 kV
IC4 4kV
Rated insulation voltage
IC1/IC2 (300V) 600V
IC2/IC3 (300V) 600V
IC4 300V
Pollution degree outside: 3
Safe separation (double insulation) between
IC1/IC3 (OVC III/300V) OVC III/600V
Measuring current transformer circuit
Rated load current 48 A.
Primary measured differential current 1000 mA
Thermal rated continuous differential current Icth: 48 A.
Thermal rated short-time current Ith 2400 A.
Rated surge current Idyn: 6000 A.
Operating temperature -30…+80 °C.
Temperature in the cable feed-through: Max. 100 °C.
Connection cable with plug connection 6-pin
180 mm conductor length
Connection cable UL Style 2464
External diameter of the pipe (da): type. 5 mm
Bending radius once: 8x there, several times 15x there
PROTECTION CLASS (DIN EN 60529): IP54
Protection class connection (DIN EN 60529): IP20
Mounting: Cable ties

Product type: LV current transformer

Primary current: 48 A

Line feed-through diameter: 15 mm

Type: W15BS-02

Dim: (L x W x H) 23 x 41 x 52 mm

Input current: 48 A

Reading category: CAT III

Width: 41 mm

Height: 52 mm

Length: 23 mm

Variants(All information include VAT, plus shipping costs)

Primary current

Line feed-through diameter

Bender W15BS-02 B98080067 LV current transformer Primary current 48 A Line feed-through diameter:15 mm 1 pc(s)

Item no:2372870

Fast track dispatch on Wed 14 Oct

1 Piece(s)Conrad Electronic

This article

48 A

15 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 81.99^*

Bender CTAC20 B98110005 LV current transformer Primary current 63 A Secondary current 0.0167 A Line feed-through (H x W):20 x 20 mm Line feed-through diameter:20 mm 1 pc(s)

Item no:2372855

Fast track dispatch on Wed 14 Oct

11 Piece(s)Conrad Electronic

63 A

20 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

Bender CTAC35 B98110007 LV current transformer Primary current 125 A Secondary current 0.0167 A Line feed-through (H x W):35 x 35 mm Line feed-through diameter:35 mm 1 pc(s)

Item no:2372856

Fast track dispatch on Wed 14 Oct

5 Piece(s)Conrad Electronic

125 A

35 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 129.99^*

Bender CTAC60 B98110017 LV current transformer Primary current 250 A Secondary current 0.0167 A Line feed-through (H x W):60 x 60 mm Line feed-through diameter:60 mm 1 pc(s)

Item no:2372857

Fast track dispatch on Wed 14 Oct

4 Piece(s)Conrad Electronic

250 A

60 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

Bender CTUB101-CTBC35 B78120012 LV current transformer Primary current 125 A Line feed-through diameter:35 mm 1 pc(s)

Item no:2372853

Dispatches on Wed 4 Nov

Conrad Electronic

125 A

35 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 415.00^*

Bender CTUB101-CTBC60 B78120014 LV current transformer Primary current 250 A Line feed-through diameter:60 mm 1 pc(s)

Item no:2372854

Dispatches on Wed 4 Nov

Conrad Electronic

250 A

60 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 465.00^*

Bender W15BS B98080065 LV current transformer Primary current 48 A Line feed-through diameter:15 mm 1 pc(s)

Item no:2372869

Fast track dispatch on Wed 14 Oct

4 Piece(s)Conrad Electronic

48 A

15 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

Bender CTUB101-CTBC20 B78120010 LV current transformer Primary current 63 A Line feed-through diameter:20 mm 1 pc(s)

Item no:2372852

Unavailable

Conrad Electronic

63 A

20 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 319.00^*

Documents & Downloads

Datasheet

Datasheet 2372870 Bender W15BS-02 B98080067 LV current transformer Primary current 48 A Line feed-through diameter:15 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2372870 Bender W15BS-02 B98080067 LV current transformer Primary current 48 A Line feed-through diameter:15 mm 1 pc(s)

Description

The W15BS series of transducers are current transducers that measure AC and DC differential currents. The measured currents are evaluated by the evaluation devices connected via the measuring converter connection cable. The connection to the respective
Devices are made via a six-wire cable. They can be used in DC, AC, and 3(N)AC systems.
The current transformers have an integrated Mu metal shield to prevent interference from external magnetic fields.

Prescribed Use
The W15BS measuring current transformers are suitable for all-current sensitive residual current measurement in power supply systems up to a rated voltage of 600 V and a rated current of 48 A, for which DC fault currents may occur due to the existing converters. The measured differential current is 1000 mA.
The primary conductor must be a cable that meets at least the requirements for basic insulation in terms of the area of application.

This text is machine translated.
