Benewake Sensor MBS-SES-52-01
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 419.00 / piece)
€ 419.00
incl. VAT
Only available for business customers
14-day return policy includedTechnical specifications
- Measurement range 0.1 - 180 m
- Update rate 1 Hz - 1 KHz
- Wavelength 905 nm
- Operating voltage 5 V
- Current consumption: Max. 180 mA | 0.9W
- UART interface
- Dimensions 44 x 43 x 32 mm
- Weight: 77 g
- IP67 protection class
- Product type
Sensor
- Length
44 mm
- Width
43 mm
- Manufacturer part #
MBS-SES-52-01
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3205117 Benewake Sensor MBS-SES-52-01
Description

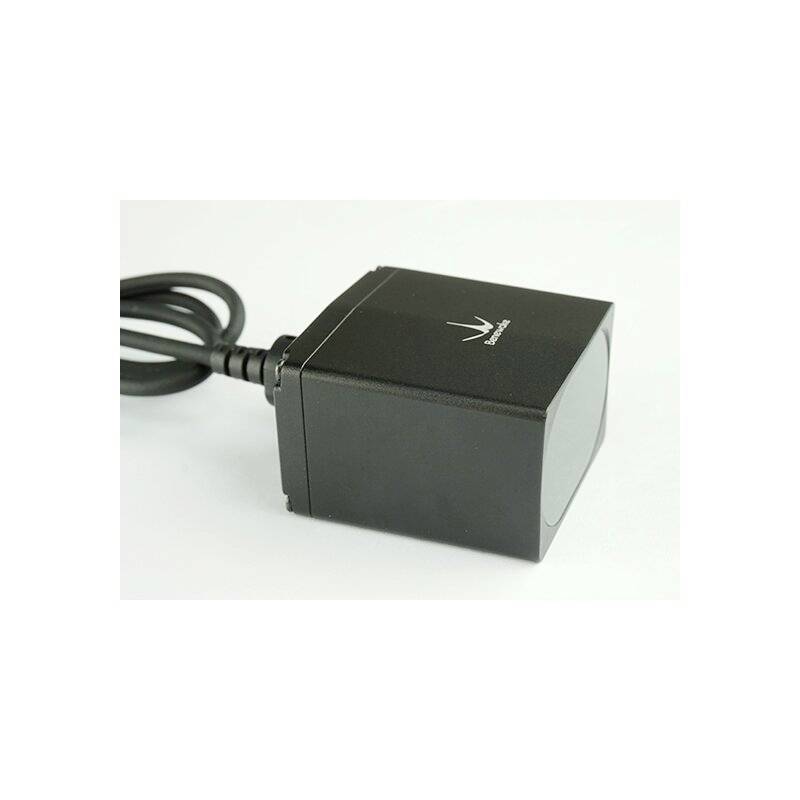

The Benewake TF03 is a long-range LiDAR with a measuring range of up to 180m and has an adjustable update rate of up to 1KHz. Owing to the low measurement tolerance of 1 - 10 cm in combination with the versatile UART interface, a series of application possibilities and applications arise, such as distance control in autonomous vehicles or also Pixhawk-based drones.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x Benewake TF03 LiDAR UART/can
