Name: Benning 050316 Equipment tester set VDE standard 0701-0702
Brand: Benning
SKU: 1398890

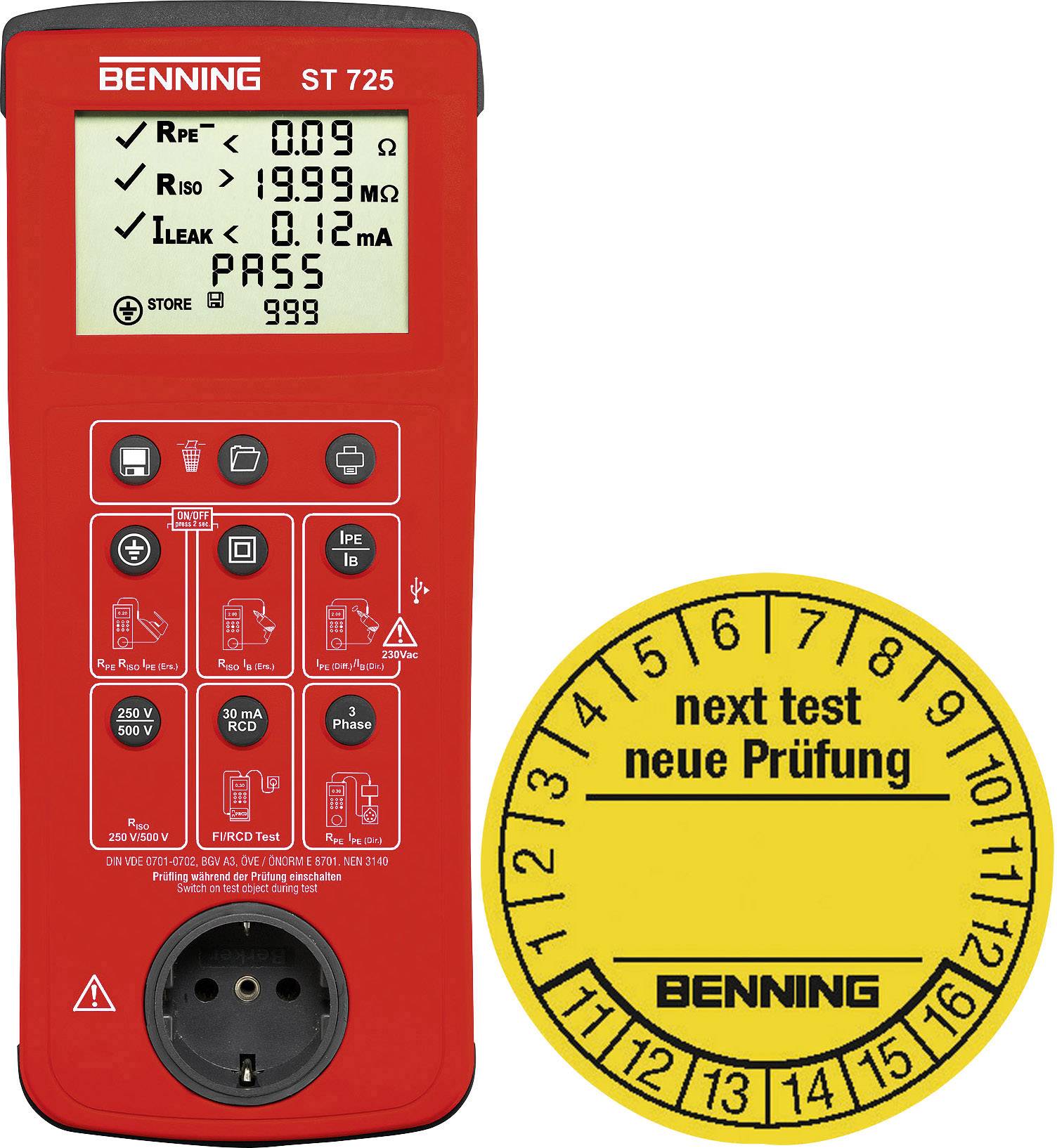

The image depicts a red testing device with a digital display and symbols for electrical tests. Beside it is a yellow test seal sticker.

'Electronic test device with a digital display showing various electrical measurement values, including Rpe, Riso and Ileak. Display shows 'PASS'.'

Multimeter Benning ST 725 with various cables and test probes. Next to it on the right, a blue CD with labelling and logos.

A person is holding a red testing instrument in front of a computer screen displaying data. The device is printing a small paper receipt.

A person is holding a testing device in front of an electric saw. The screen of the device displays values for electrical safety tests.

1/6

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

VDE 0701-0702 Tester ST 725 + 300 pieces of test labels

Free addition: 300 pieces of test labels
Measured value memory for 999 measurements
Data download via USB
Testing FI/RCD circuit breaker
Testing 3-phase devices
With battery and mains operation

Technical specifications

Protective earthing conductor resistance (200 mA test current polarity reversal)
Insulation resistance (250/500 V Test voltage), ISO-test voltage can be reduced to 250 V for devices with discharge
Protective earthing conductor/touch current with mains mode (difference method / direct measurement)/battery mode (spare leakage current procedure)
Testing FI/RCD circuit breaker (30 mA) with measurement of release time
Mains voltage measurement via safety plug
Testing 3-phase devices (with optional measuring adapters) under functional conditions

Product type: Equipment tester set

: Manufacturer's standards (no certificate)

Reading category: CAT II 300 V

Interfaces: USB

Dim: (L x W x H) 55 x 115 x 270 mm

Weight: 950 g

Reading range (VDE): Voltage

DIN standard: DIN VDE 0701-0702

Display type: Digital (LCD)

Width: 115 mm

Height: 270 mm

Length: 55 mm

Test procedure: automated

Voltage supply: Battery
Mains

Memory (space): 999

Memory: Yes

Type: 050316

VDE standard: 0701-0702

Features: incl. software
incl. test labels
RCD/FI testing

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1398890 Benning 050316 Equipment tester set VDE standard 0701-0702

Information

Information 1398890 Benning 050316 Equipment tester set VDE standard 0701-0702

Description

With the battery and mains-powered device tester ST 725, portable, simple and inexpensive testing of electrical equipment / work equipment according to DIN VDE 0701-0702, DGUV Rule 3 (BGV A3), ÖVE/ÖNORM E 8701, NEN 3140. Mains operation allows complete testing of devices with power supplies such as, electronically controlled equipment/tools, PC's, photocopiers, washing machines under operating conditions.

This text is machine translated.

Features

Measured value memory for 999 test objects, read out via Micro-USB interface
Integrated real-time clock for the storage of the measured values with date of test
Limiting values pre-set according to VDE-standard
Automatic test sequences for devices of Class I, II (III), low heat device conductors and cord reel with good / bad rating.

Scope of delivery

6 batteries (type AA)
Bag
Test lead with grip clip
Power supply cable
Cold unit lead
Micro USB cable
Software CD
User manual
Test labels 300 pcs.

Hints

Offer valid while stocks last.

Description

Features

Measured value memory for 999 test objects, read out via Micro-USB interface
Integrated real-time clock for the storage of the measured values with date of test
Limiting values pre-set according to VDE-standard
Automatic test sequences for devices of Class I, II (III), low heat device conductors and cord reel with good / bad rating.
