Name: Benning 050316 VDE tester
Brand: Benning
SKU: 1511400

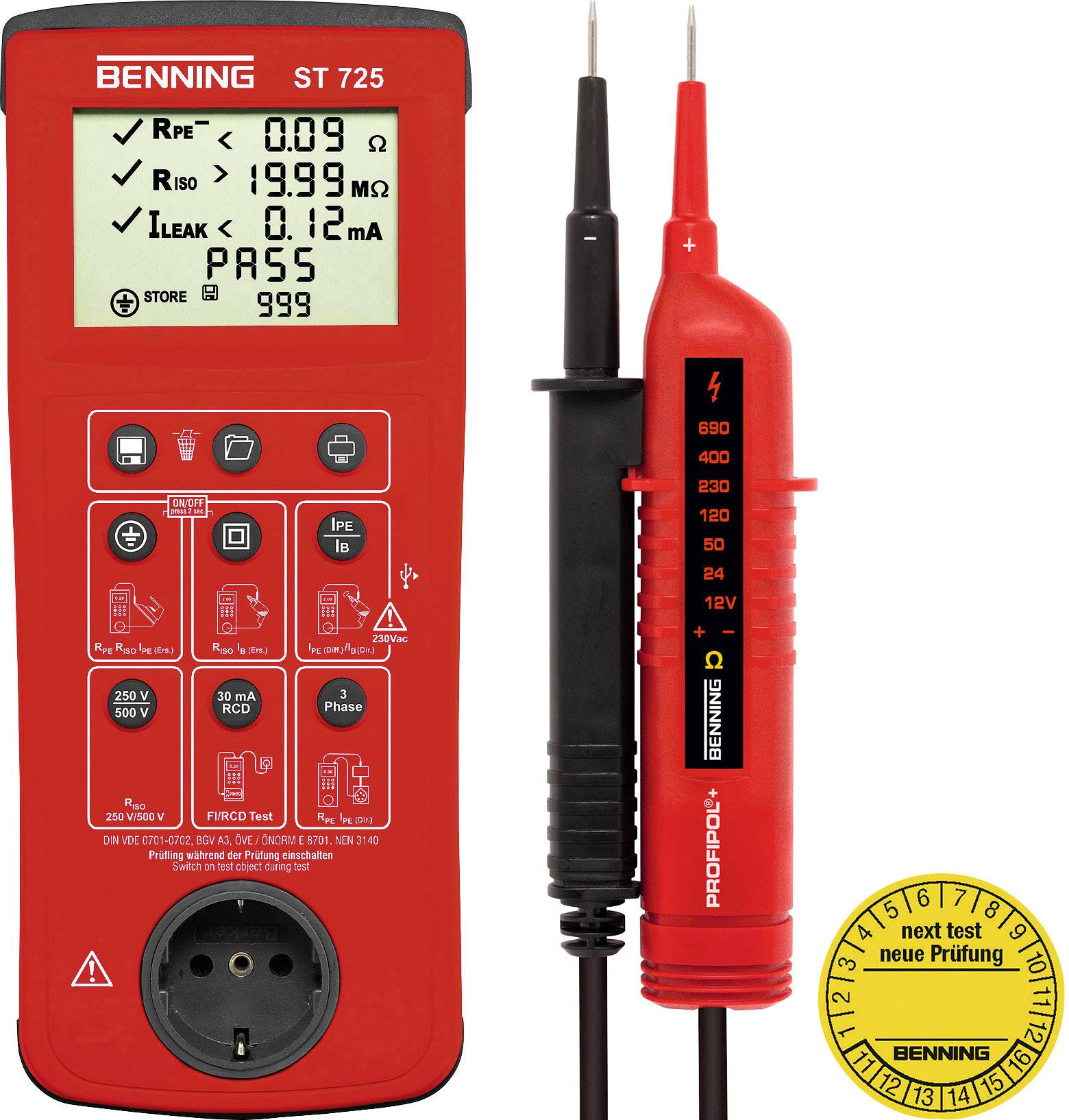

A red testing device with a display that shows electrical measurements such as resistance and current leakage. Includes test probes and a label for marking future inspections.

'Electronic test device with a digital display showing various electrical measurement values, including Rpe, Riso and Ileak. Display shows 'PASS'.'

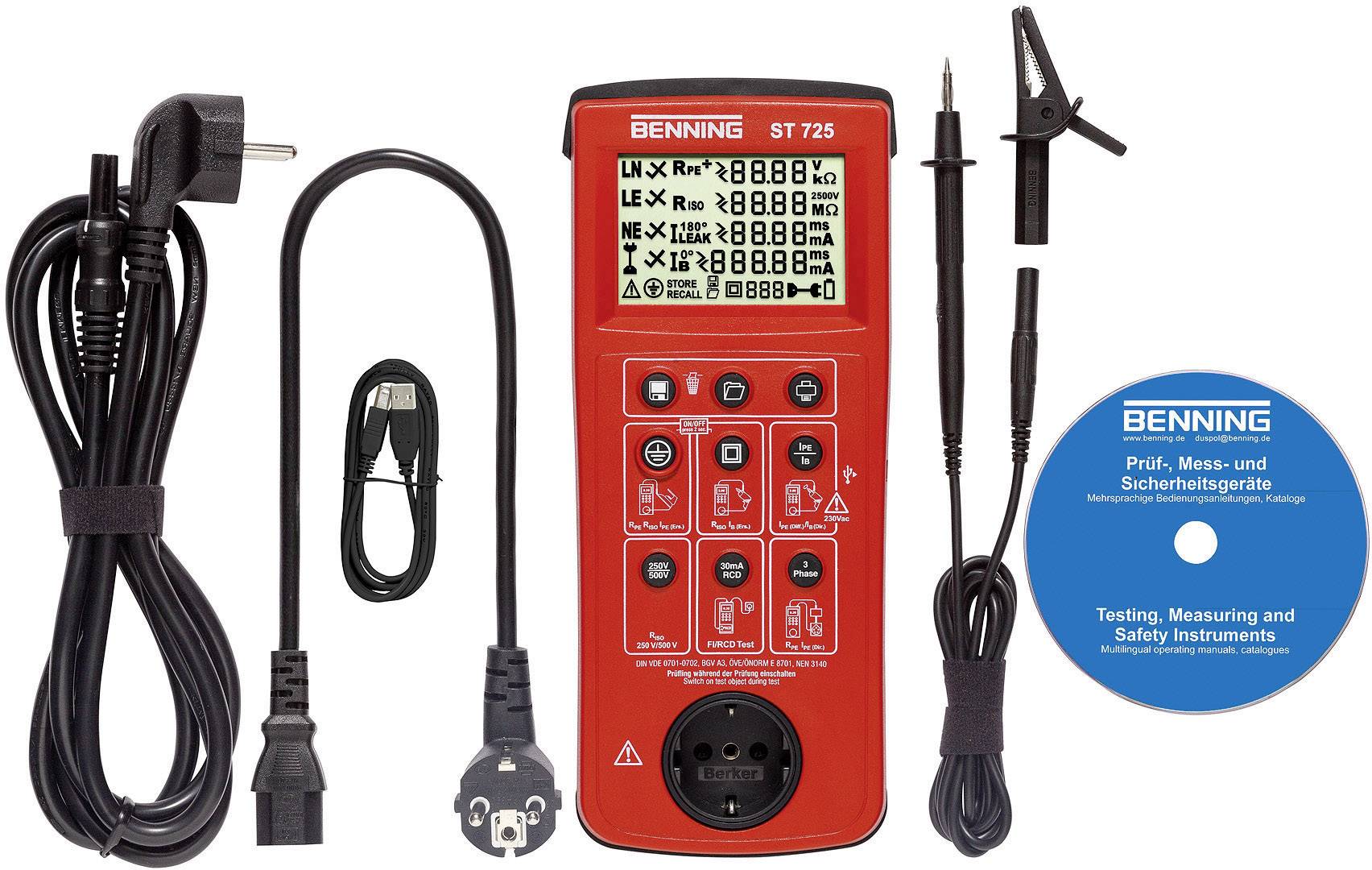

Multimeter Benning ST 725 with various cables and test probes. Next to it on the right, a blue CD with labelling and logos.

Voltage tester with red and black handle shows voltage readings from 12 to 690 volts. Primarily used for measuring electrical voltage.

A person is holding a red testing instrument in front of a computer screen displaying data. The device is printing a small paper receipt.

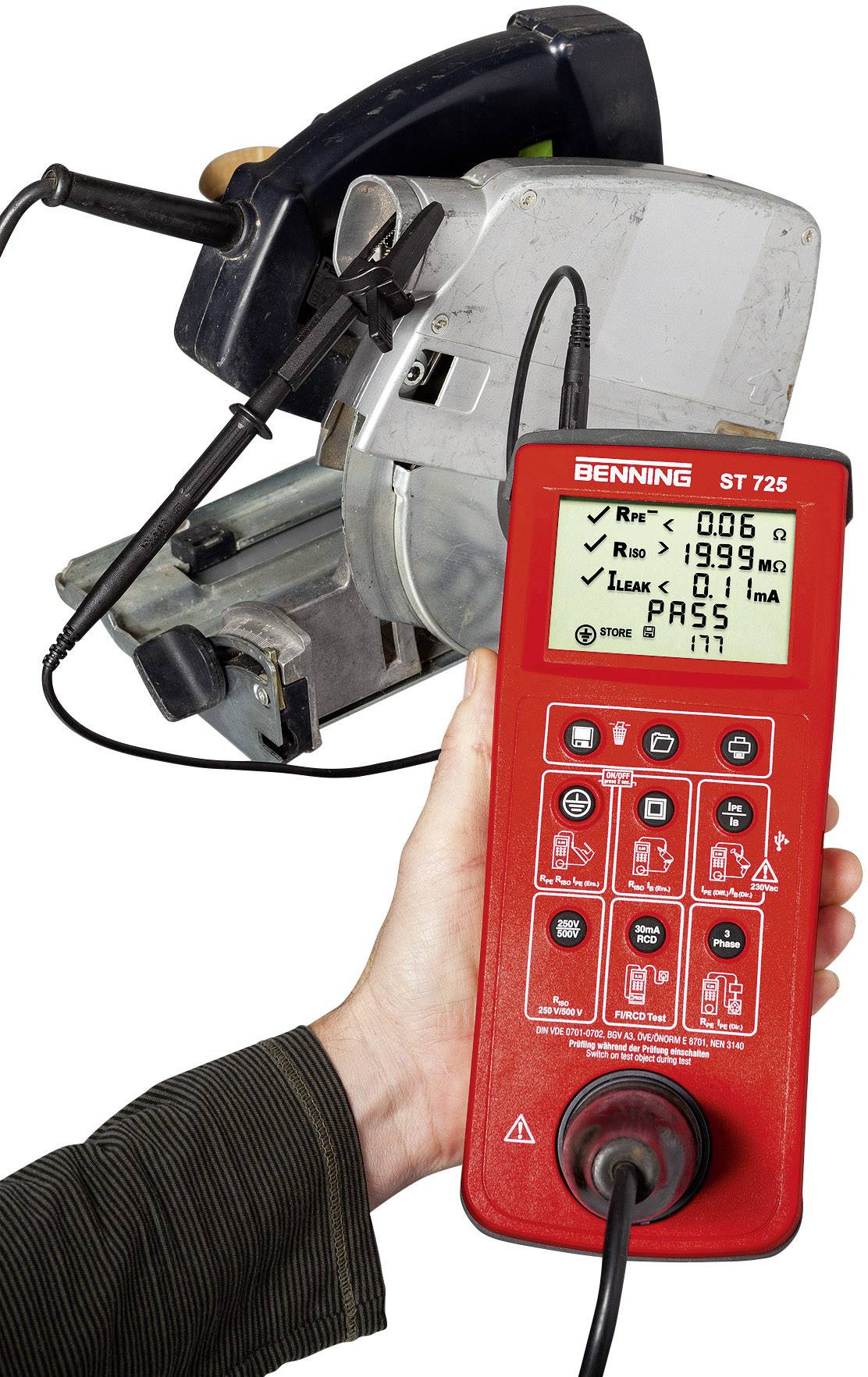

A person is holding a testing device in front of an electric saw. The screen of the device displays values for electrical safety tests.

A hand is holding a two-pole voltage tester against a power socket to test the electrical current. The device is displaying measurement readings.

1/8

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

VDE 0701-0702 Tester ST 725 +++ Test badges (300 pieces) PROFIPOL

Incl. free two-pole voltage tester Profipol +
Incl. free. Test labels 300 pcs.
Measured value memory for 999 measurements
Data download via USB
Testing FI/RCD circuit breaker
Testing 3-phase devices
With battery and mains operation

Technical specifications

Protective earthing conductor resistance (200 mA test current polarity reversal)
Insulation resistance (250/500 V Test voltage), ISO-test voltage can be reduced to 250 V for devices with discharge
Protective earthing conductor/touch current with mains mode (difference method / direct measurement)/battery mode (spare leakage current procedure)
Testing FI/RCD circuit breaker (30 mA) with measurement of release time
Mains voltage measurement via safety plug
Testing 3-phase devices (with optional measuring adapters) under functional conditions

Product type: VDE tester

: Manufacturer's standards (no certificate)

Reading category: CAT II 300 V

Interfaces: Micro USB

Dim: (L x W x H) 55 x 115 x 270 mm

Reading range (VDE): Earth leakage resistance

DIN standard: DIN VDE 0701-0702

Width: 115 mm

Height: 270 mm

Length: 55 mm

Test procedure: automated

Voltage supply: Battery

Memory (space): 999

Memory: Yes

Type: 050316

Features: RCD/FI testing

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1511400 Benning 050316 VDE tester

Information

Information 1511400 Benning 050316 VDE tester

Description

With the battery and mains-powered device tester ST 725, portable, simple and inexpensive testing of electrical equipment / work equipment according to DIN VDE 0701-0702, DGUV Rule 3 (BGV A3), ÖVE/ÖNORM E 8701, NEN 3140. Mains operation allows complete testing of devices with power supplies such as, electronically controlled equipment/tools, PC's, photocopiers, washing machines under operating conditions.

This text is machine translated.

Features

Measured value memory for 999 test objects, read out via Micro-USB interface
Integrated real-time clock for the storage of the measured values with date of test
Limiting values pre-set according to VDE-standard
Automatic test sequences for devices of Class I, II (III), low heat device conductors and cord reel with good / bad rating.

Scope of delivery

6 batteries (type AA)
Bag
Test lead with grip clip
Power supply cable
Cold unit lead
Micro USB cable
Software CD
User manual
Profipol +
Test labels 300 pcs.

Hints

Offer valid while stocks last.

Description

Features

Measured value memory for 999 test objects, read out via Micro-USB interface
Integrated real-time clock for the storage of the measured values with date of test
Limiting values pre-set according to VDE-standard
Automatic test sequences for devices of Class I, II (III), low heat device conductors and cord reel with good / bad rating.
