binder 70 3442 287 05-20 Sensor/actuator connector M12 Socket, straight, Sleeve socket 0.5 m No. of pins (RJ): 5 1 pc(s)
Product type
Sensor/actuator connector
Connector type
Socket, straight
Sleeve socket
Connection side A
M12
No. of pins
5
Cable length
0.5 m
Datasheet (PDF)
EAN:
Part number:
Item no:

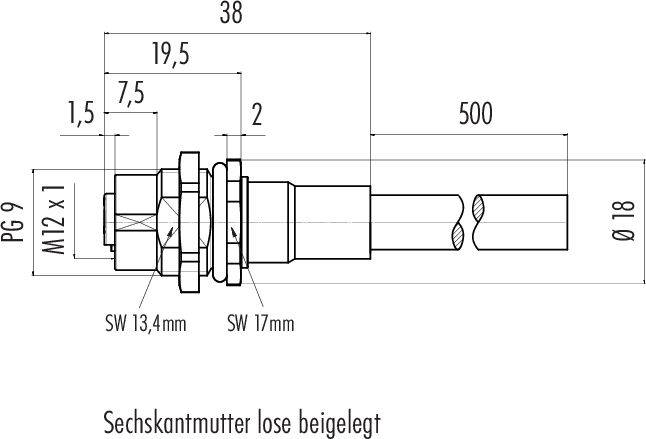

Highlights & Details
70 3442 287 05 Series 763

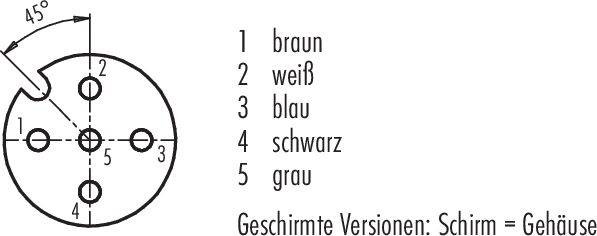

- M12-A flange socket
- Number of pins: 5
- 5.3 mm
- Shielded
- Cable
- IP68
- PG9
- 5 x 0.25 mm²
- screw-in from the front
Our service for you
Technical specifications
- EMC-suitability: Shielded
- Insulation resistance: > 10⁸ Ω
- Constant resistance: 3 mΩ
- Insulation class III
- Overvoltage category II
- Pollution level 3
- Material of contact body: PA
- Insulation wire PP
- Cable outlet 5.3 mm
- Cable cross-section 5 x 0.25 mm²
- Travel speed: At 5 m horizontal path. -> 200 m/min.
- Bending radius for cable moving: ≥ 10 x Ø
- ≥ 5 x Ø flexible cable bend radius
- Halogen-free: Yes
- Mounting type: Housing assembly
- Type
70 3442 287 05
- Product type
Sensor/actuator connector
- Connector type
Socket, straight
Sleeve socket
- Connection side A
M12
- No. of pins
5
- Cable length
0.5 m
- Jacket material
PUR
- Nominal voltage
60 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connection
Open end cable
- Thread type connection side
M12
- Thread type (wiring and installation)
PG9
- Coding
A
- Contact material
CuSn
- Contact surface
Au (gold)
- Sensor/actuator connectivity fittings
Rear panel fitting
IP68
- Features
Shielded
- Min. temperature
-50 °C
- Max. temperature
90 °C
- Seal type
Screw-on
- Manufacturer part #
70 3442 287 05-20
- Content
1 pc(s)
- Cable Ø
4.8 mm
- Cable Ø (max.)
5.3 mm
- Cable Ø range
5.3 mm (max)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3216663 binder 70 3442 287 05-20 Sensor/actuator connector M12 Socket, straight, Sleeve socket 0.5 m No. of pins (RJ): 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3216663 binder 70 3442 287 05-20 Sensor/actuator connector M12 Socket, straight, Sleeve socket 0.5 m No. of pins (RJ): 5 1 pc(s)
Description
These connector systems offer the perfect solution for sensors and actuators in many industrial sectors. We offer connectors from IP40 to IP69K, many of them with UL, VDE and Ecolab approval, as well as FDA-compliant models. Users can order round connectors with 2 to 12 contacts and various connection options, including solder, crimp, dip solder, cable and stranded wire connections. Connectors with M5, M8 and M12 screw locking are available in straight and angled design as well as flange versions. Apart from Duo-plugs and double distributors a large selection of connecting cables is also available.
Properties:
• 2 to 12 pole
• IP40 to IP69K
• Screw lock
• Simple installation
• UL, VDE and Ecolab approval
• Connecting cables
• FDA compliant versions
