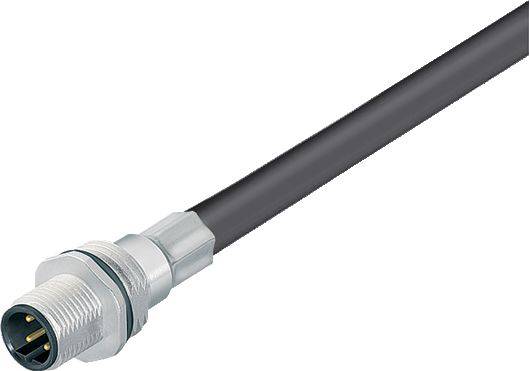

binder 70 3481 785 08-20 Sensor/actuator connector M16 Sleeve plug 0.5 m No. of pins (RJ): 8 1 pc(s)
Product type
Sensor/actuator connector
Connector type
Sleeve plug
Connector standard
Sensor connector
Connection side A
M12

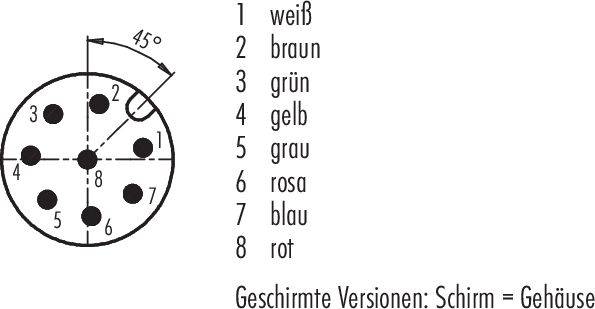

No. of pins
8
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
70 3481 785 08 Series 763
- M12-A flange plug
- Number of pins: 8
- Shielded
- Cable
- IP68
- M16x1.5
- PUR black
- 5 x 0.25 mm²
Our service for you
Technical specifications
- EMC-suitability: Shielded
- Insulation resistance: > 10⁸ Ω
- Constant resistance: 3 mΩ
- Insulation class III
- Overvoltage category II
- Pollution level 3
- Material of contact body: PA
- Cable cross-section 5 x 0.25 mm²
- Halogen-free: Yes
- Mounting type: Housing assembly
- Type
70 3481 785 08
- Product type
Sensor/actuator connector
- Connector type
Sleeve plug
- Connector standard
Sensor connector
- Connection side A
M12
- No. of pins
8
- Cable length
0.5 m
- Jacket material
PUR
- Nominal voltage
30 V
- Nominal current
1.5 A
- Nominal current - rounded value
1.5 A
- Cross-section (sensor/actuator wiring)
0.25 mm²
- Connection
Open end cable
- Factory colour
Black
- Thread type connection side
M16
- Thread type (wiring and installation)
M16
- Coding
A
- Contact material
CuZn
- Contact surface
Au (gold)
IP68
- Features
Shielded
- Seal type
Screw-on
- Manufacturer part #
70 3481 785 08-20
- Content
1 pc(s)
- Cable Ø
6.0 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3216666 binder 70 3481 785 08-20 Sensor/actuator connector M16 Sleeve plug 0.5 m No. of pins (RJ): 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3216666 binder 70 3481 785 08-20 Sensor/actuator connector M16 Sleeve plug 0.5 m No. of pins (RJ): 8 1 pc(s)
Description
These connector systems offer the perfect solution for sensors and actuators in many industrial sectors. We offer connectors from IP40 to IP69K, many of them with UL, VDE and Ecolab approval, as well as FDA-compliant models. Users can order round connectors with 2 to 12 contacts and various connection options, including solder, crimp, dip solder, cable and stranded wire connections. Connectors with M5, M8 and M12 screw locking are available in straight and angled design as well as flange versions. Apart from Duo-plugs and double distributors a large selection of connecting cables is also available.
Properties:
• 2 to 12 pole
• IP40 to IP69K
• Screw lock
• Simple installation
• UL, VDE and Ecolab approval
• Connecting cables
• FDA compliant versions
This text is machine translated.
Properties:
• 2 to 12 pole
• IP40 to IP69K
• Screw lock
• Simple installation
• UL, VDE and Ecolab approval
• Connecting cables
• FDA compliant versions
This text is machine translated.
