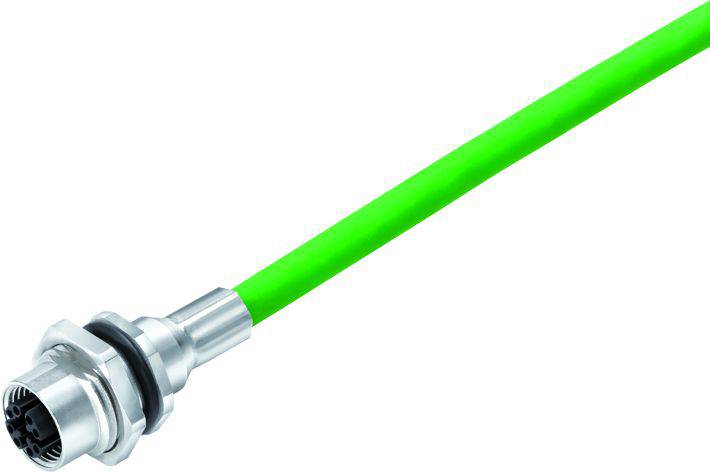

binder 70 3784 706 08-20 Sensor/actuator connector M16 Socket, straight, Sleeve socket 0.5 m No. of pins (RJ): 8 1 pc(s)
Product type
Sensor/actuator connector
Connector type
Socket, straight
Sleeve socket
Connector standard
Ethernet
Connection side A
M12
No. of pins
8
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
70 3784 706 08 Series 876
- M12-X flange socket
- Number of pins: 8
- Shielded
- Cable
- IP67
- UL
- M16x1.5
- Ethernet
- PUR green
- 4 x 2 x AWG 26/7
- screw-in from the front
Our service for you
Technical specifications
- EMC-suitability: Shielded
- Insulation resistance: > 10⁸ Ω
- Constant resistance: 15 mΩ
- Insulation class III
- Overvoltage category II
- Pollution level 3
- Material of contact body: PA
- Material locking: Nickel-plated die-cast zinc
- Insulation flex:PE
- Cable type: Ethernet
- Cable cross-section 4 x 2 x AWG 26/7
- Bending radius: Fixed cable: ≥ 50 mm
- Halogen-free: Yes
- Mounting type: Housing assembly
- Type
70 3784 706 08
- Product type
Sensor/actuator connector
- Connector type
Socket, straight
Sleeve socket
- Connector standard
Ethernet
- Connection side A
M12

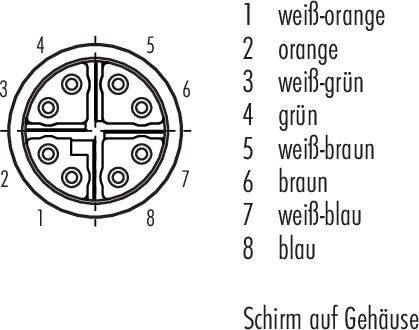

- No. of pins
8
- Cable length
0.5 m
- Jacket material
PUR
- Nominal voltage
50 V AC
60 V DC
- Nominal current
0.5 A
- Nominal current - rounded value
500 mA
- Connection
Open end cable
- Factory colour
Green

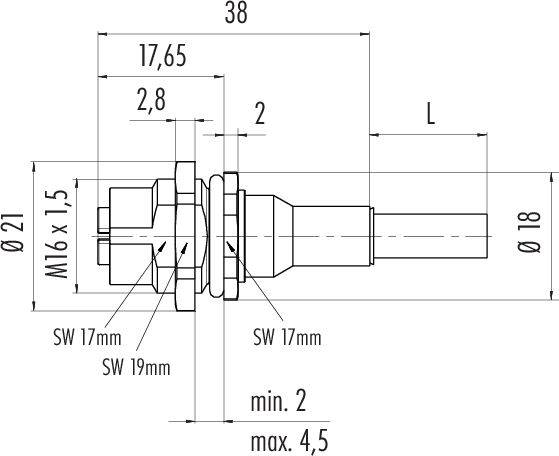

- Thread type connection side
M16
- Thread type (wiring and installation)
M16
- Coding
X
- Contact material
CuSn
- Contact surface
Au (gold)
- Sensor/actuator connectivity fittings
Rear panel fitting
IP67
- Features
X-coded
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Seal type
Screw-on
- Manufacturer part #
70 3784 706 08-20
- Content
1 pc(s)
- Cable Ø
6.2 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3216673 binder 70 3784 706 08-20 Sensor/actuator connector M16 Socket, straight, Sleeve socket 0.5 m No. of pins (RJ): 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3216673 binder 70 3784 706 08-20 Sensor/actuator connector M16 Socket, straight, Sleeve socket 0.5 m No. of pins (RJ): 8 1 pc(s)
Description
Binder offers 7 different round connectors for signal and data transmission in modern, automated factories. These are mainly M8, M12, M16 round connectors, which can be configured by the customer according to the respective application area. Our latest shielded, X-coded M12 connector can handle data transfer rates up to an impressive 10 Gbps.
Properties:
• 6 product series
• Various locking systems, including M8, M12 and M16
• Coding, including M12 - B, -D and -X
• Protection class of IP20 to IP69K
• 2 to 8 contacts
• Shielded and shielded
• PUR and PVC cable
• Cable lengths from 0.5 m to 10 m.
