binder 70 4434 247 04-20 Sensor/actuator connector Socket, straight, Sleeve socket 0.5 m No. of pins (RJ): 2 1 pc(s)
Product type
Sensor/actuator connector
Connector type
Socket, straight
Sleeve socket
Connector standard
Profibus
Connection side A
M12

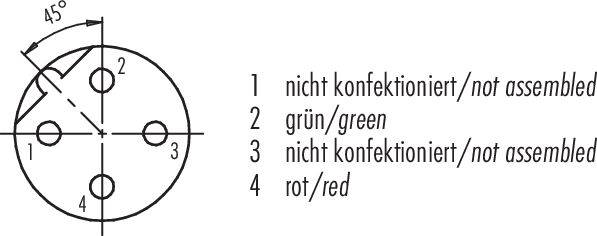

No. of pins
2
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
70 4434 247 04 Series 766
- M12-B flange socket
- Number of poles: 2
- Shielded
- Cable
- IP68
- PG9
- Profibus
- PUR violet
- 1 x 2 x 0.25 mm²
- screw-in from the front
Our service for you
Technical specifications
- EMC-suitability: Shielded
- Insulation resistance: > 10⁸ Ω
- Constant resistance: 3 mΩ
- Insulation material group II.
- Overvoltage category II
- Pollution level 3
- Material of contact body: PA
- Insulation flex:PE-foam
- Cable type: Profibus
- Cable cross-section 1 x 2 x 0.25 mm²
- Halogen-free: Yes
- Mounting type: Housing assembly
- Type
70 4434 247 04
- Product type
Sensor/actuator connector
- Connector type
Socket, straight
Sleeve socket
- Connector standard
Profibus
- Connection side A
M12
- No. of pins
2

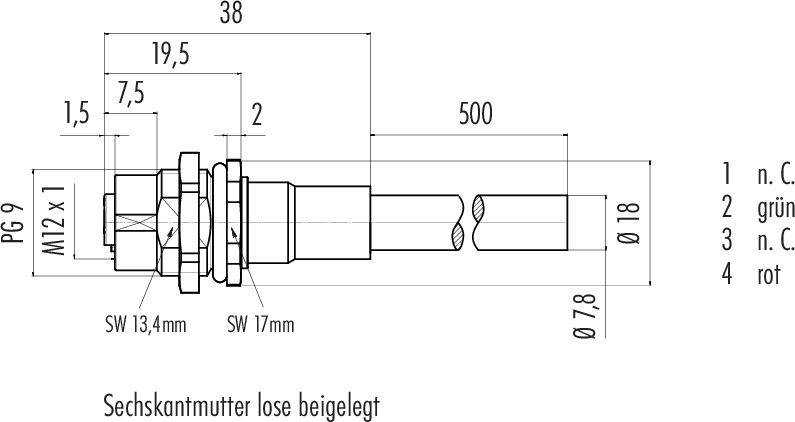

- Cable length
0.5 m
- Jacket material
PUR
- Nominal voltage
60 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.25 mm²
- Connection
Open end cable
- Factory colour
Violet
- Thread type (wiring and installation)
PG9
- Coding
B
- Contact material
CuSn
- Contact surface
Au (gold)
- Sensor/actuator connectivity fittings
Rear panel fitting
IP68
- Seal type
Screw-on
- Manufacturer part #
70 4434 247 04-20
- Content
1 pc(s)
- Cable Ø
7.8 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3216678 binder 70 4434 247 04-20 Sensor/actuator connector Socket, straight, Sleeve socket 0.5 m No. of pins (RJ): 2 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3216678 binder 70 4434 247 04-20 Sensor/actuator connector Socket, straight, Sleeve socket 0.5 m No. of pins (RJ): 2 1 pc(s)
Description
Binder offers 7 different round connectors for signal and data transmission in modern, automated factories. These are mainly M8, M12, M16 round connectors, which can be configured by the customer according to the respective application area. Our latest shielded, X-coded M12 connector can handle data transfer rates up to an impressive 10 Gbps.
Properties:
• 6 product series
• Various locking systems, including M8, M12 and M16
• Coding, including M12 - B, -D and -X
• Protection class of IP20 to IP69K
• 2 to 8 contacts
• Shielded and shielded
• PUR and PVC cable
• Cable lengths from 0.5 m to 10 m.
