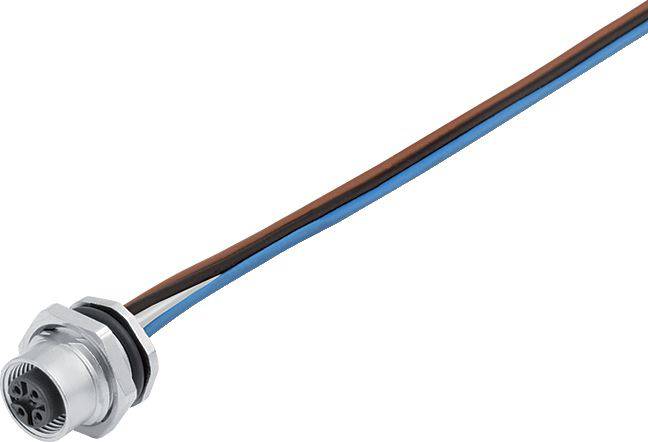

Image similar
binder 76 2532 1111 00005-0200-20 Sensor/actuator connector M12 Socket, straight, Sleeve socket No. of pins (RJ): 5 1 pc
Product type
Sensor/actuator connector
Connector type
Socket, straight
Sleeve socket
Connection side A
M12
No. of pins
5
Nominal voltage
60 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
76 2532 1111 00005-0200 Series 763
- M12-A flange socket
- Number of pins: 5
- unshielded
- Strands
- IP68/IP69K
- UL
- PG9 FMT VA
- screw-in from the front
Our service for you
Technical specifications
- EMC-suitability: Unshielded
- Insulation resistance: > 10⁸ Ω
- Constant resistance: 3 mΩ
- Insulation class III
- Overvoltage category II
- Pollution level 3
- Material of contact body: PA
- Material locking: Stainless steel
- Mounting type: Housing assembly
- Type
76 2532 1111 00005-0200
- Product type
Sensor/actuator connector
- Connector type
Socket, straight
Sleeve socket
- Connection side A
M12
- No. of pins
5
- Nominal voltage
60 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.25 mm²
- Connection
Open cable ends
- Thread type connection side
M12
- Thread type (wiring and installation)
PG9
- Coding
A
- Contact material
CuSn
- Contact surface
Au (gold)
- Sensor/actuator connectivity fittings
Rear panel fitting
IP68/IP69K
- Seal type
Screw-on
- Manufacturer part #
76 2532 1111 00005-0200-20
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3216825 binder 76 2532 1111 00005-0200-20 Sensor/actuator connector M12 Socket, straight, Sleeve socket No. of pins (RJ): 5 1 pc
User & Safety Instructions
User & Safety Instructions 3216825 binder 76 2532 1111 00005-0200-20 Sensor/actuator connector M12 Socket, straight, Sleeve socket No. of pins (RJ): 5 1 pc
Description
These connector systems offer the perfect solution for sensors and actuators in many industrial sectors. We offer connectors from IP40 to IP69K, many of them with UL, VDE and Ecolab approval, as well as FDA-compliant models. Users can order round connectors with 2 to 12 contacts and various connection options, including solder, crimp, dip solder, cable and stranded wire connections. Connectors with M5, M8 and M12 screw locking are available in straight and angled design as well as flange versions. Apart from Duo-plugs and double distributors a large selection of connecting cables is also available.
Properties:
• 2 to 12 pole
• IP40 to IP69K
• Screw lock
• Simple installation
• UL, VDE and Ecolab approval
• Connecting cables
• FDA compliant versions
