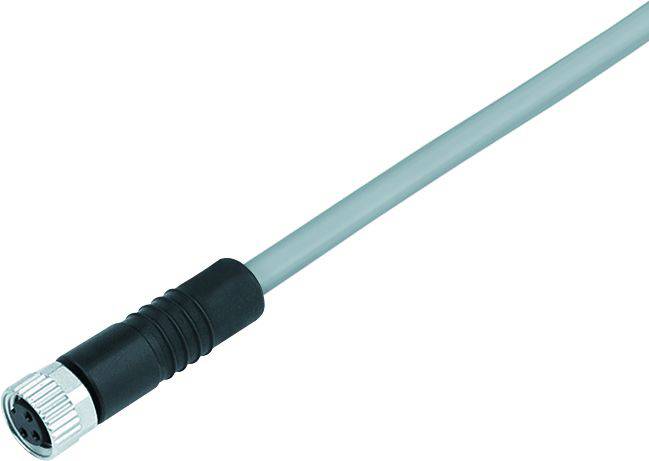

Image similar
binder 77 3406 0000 20008-1000-20 Sensor/actuator connector (pre-fab) M8 Socket, straight 10 m No. of pins (RJ): 8 1 pc(
Product type
Sensor/actuator connector (pre-fab)
Connector type
Socket, straight
Connection side A
M8
No. of pins
8
Cable length
10 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
77 3406 0000 20008-1000 Series 718
- M8 cable socket
- Number of pins: 8
- unshielded
- Moulded on the cable
- IP67/IP69K
- UL listed
- PVC gray
- 8 x 0.25 mm²
Technical specifications
- EMC-suitability: Unshielded
- Constant resistance: 3 mΩ
- Insulation material group II.
- Overvoltage category II
- Pollution level 3
- Material contact body: PUR
- Material locking: Nickel-plated die-cast zinc
- Insulation PVC
- Cable cross-section 8 x 0.25 mm²
- Travel speed: At 5 m horizontal path. -> 200 m/min.
- Bending radius for cable moving: ≥ 10 x Ø
- ≥ 5 x Ø flexible cable bend radius
- Halogen-free: No.
- Mounting type: Cable mounting
- Type
77 3406 0000 20008-1000
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Socket, straight
- Connection side A
M8
- No. of pins
8
- Cable length
10 m
- Jacket material
PVC
- Nominal voltage
30 V
- Nominal current
1.5 A
- Nominal current - rounded value
1.5 A
- Connector cross-section (max.)
0.25 mm²
- Cross-section (sensor/actuator wiring)
0.25 mm²
- Connection
Cable + connector
- Factory colour
Grey
- Thread type connection side
M8
- Thread type (wiring and installation)
M8
- Contact material
CuSn
- Contact surface
Au (gold)
IP67/IP69K
- Features
PVC
- Min. temperature
-40 °C
- Max. temperature
105 °C
- Seal type
Screw-on
- Manufacturer part #
77 3406 0000 20008-1000-20
- Content
1 pc(s)
- Cable Ø
6.0 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3216965 binder 77 3406 0000 20008-1000-20 Sensor/actuator connector (pre-fab) M8 Socket, straight 10 m No. of pins (RJ): 8 1 pc(
User & Safety Instructions
User & Safety Instructions 3216965 binder 77 3406 0000 20008-1000-20 Sensor/actuator connector (pre-fab) M8 Socket, straight 10 m No. of pins (RJ): 8 1 pc(
Description
These connector systems offer the perfect solution for sensors and actuators in many industrial sectors. We offer connectors from IP40 to IP69K, many of them with UL, VDE and Ecolab approval, as well as FDA-compliant models. Users can order round connectors with 2 to 12 contacts and various connection options, including solder, crimp, dip solder, cable and stranded wire connections. Connectors with M5, M8 and M12 screw locking are available in straight and angled design as well as flange versions. Apart from Duo-plugs and double distributors a large selection of connecting cables is also available.
Properties:
• 2 to 12 pole
• IP40 to IP69K
• Screw lock
• Simple installation
• UL, VDE and Ecolab approval
• Connecting cables
• FDA compliant versions
